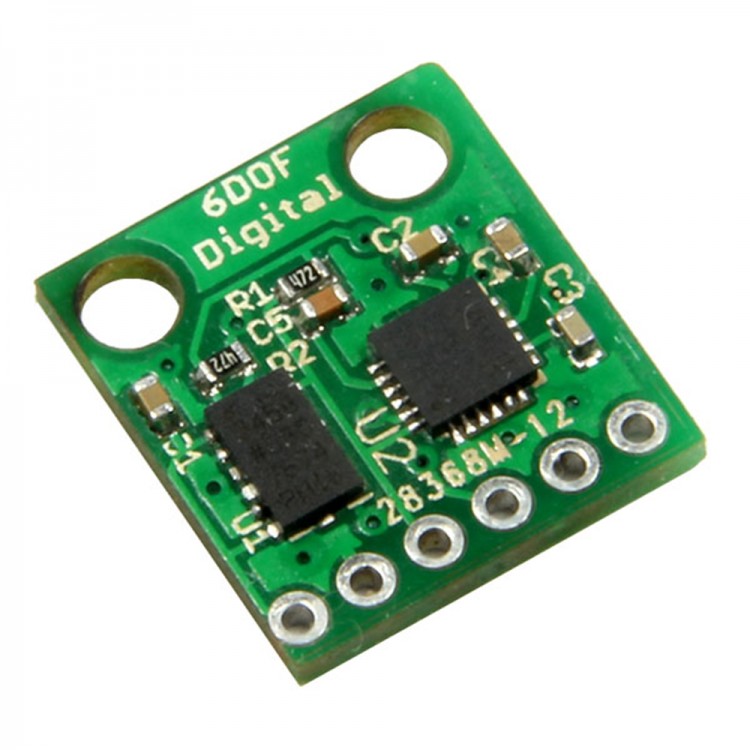

6DOF IMU Posture Control Module Accelerator ADXl345 3-Axis Gyro ITG3205 for DIY
Specifications :
- Compact structure , simple interface
- Integrated acceleration sensor ADXl345
- Integrated 3-axial instrument spinning top ITG3205
- I2C interface
- 3.3V power supply power supply
- Power supply : support 3.3v and 5v power supply, with blue led indicator
- Communication : i2c interface , plate load logic level switch circuit , compatible 3.3v and 5v two kinds dbm0 interface
- Temperature range ( - 40 & deg . c ~ + 85 & deg . c )
- Small size: 24mm* 19mm
- 2 *3mm standard mounting hole
- Interface : 2.54mm pin spacing
ITG3205:
- Measuring range : & plusmn . 2000dps
- Sensitiveness 14.375lsb / ( degree / seconds )
- Sensitivity change on temperature change: -+ 10% ( 0-55deg C )
ADXl345:
- Measuring range : & plusmn . 2 / & plusmn . 4 / & plusmn . 8 / & plusmn . 16g
- Nonlinearity : & plusmn . 0.5% full range
- Shaft cross sensitivity : & plusmn . 1%
- Sensitiveness ( 10 bit resolution ) : 230- 282lsb/g (-+2g ), 115-141lsb/g (-+4g ), 57-71lsb/g (-+ 8g ), 29-35lsb/g (-+ 16g )
- Deviatoric : zero - 150 ~ 150mg ( x and y ) , - 250 ~ 250mg ( z axis )
- Data output speed : 0.1 ~ 3205hz
Package included:
- 1 x 6DOF IMU Posture Control Module
