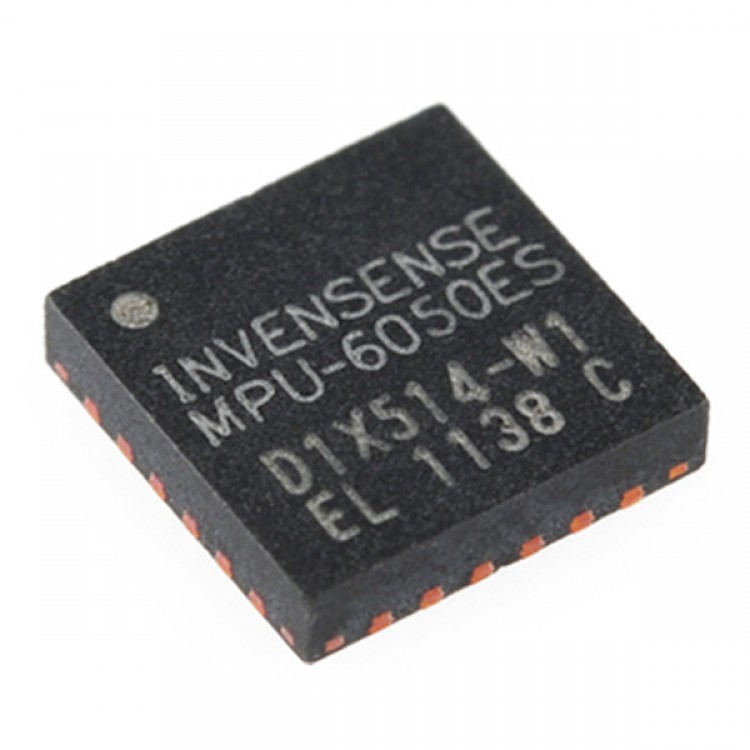

6DOF Invensence MPU6050 MPU-6050 Triple-Axis Gyro Acceleration Sensor Chip

6DOF Invensence MPU6050 MPU-6050 Triple-Axis Gyro Acceleration Sensor Chip

Description:

- The 6-axis Motion Tracking devices designe for the low power, low cost, and high performance requirements of smartphones, tablets and wearable sensors.

- The MPU-6050 devices combine a 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor (DMP) capable of processing complex 9-axis MotionFusion algorithms. The MPU-6050 with MotionFusion and run-time calibration firmware enables consumer electronics manufacturers to commercialize cost effective motion-based functionality. The parts’ integrated 9-axis MotionFusion algorithms access external magnetometers or other sensors through an auxiliary master I²C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor. The InvenSense MotionApps Platform that comes with the MPU-6050 abstracts motion-based complexities, offloads sensor management from the operating system and provides a structured set of APIs for application development. For precision tracking of both fast and slow motions, the parts feature a user-programmable gyro full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g.

Features:
- Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
- Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
- Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
- VDD Supply voltage range of 2.375V–3.46V; VLOGIC (MPU-6050) at 1.8V±5% or VDD
-  Gyro operating current: 3.6mA (full power, gyro at all rates)
-  Gyro + Accel operating current: 3.8mA (full power, gyro at all rates, accel at 1kHz sample rate)
-  Accel low power mode operating currents: 10uA at 1Hz, 20uA at 5Hz, 70uA at 20Hz, 140uA at 40Hz
-  Full Chip Idle Mode Supply Current: 5µA
-  400kHz Fast Mode I²C or up to 20MHz SPI (MPU-6000 only) serial host interfaces
-  On-chip timing generator with ±1% frequency variation over full temperature range
- User self test
- 10,000g shock tolerant
-  Smallest and thinnest package for portable devices (4x4x0.9mm QFN)
- RoHS and Green compliant
-  Reduced settling effects and sensor drift by elimination of board-level cross-axis alignment errors between accelerometers and gyroscopes
- Digital Motion Processing (DMP) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
-  Digital-output temperature sensor
-  Digital input on FSYNC pin to support video Electronic Image Stabilization and GPS
- MotionApps Platform support for Android, Linux, and Windows
-  Embedded algorithms for run-time bias and compass calibration. No user intervention required
-  Programmable interrupt supports gesture recognition, panning, zooming, scrolling, free fall interrupt, high-G interrupt, zero-motion detection, tap detection, and shake detection
