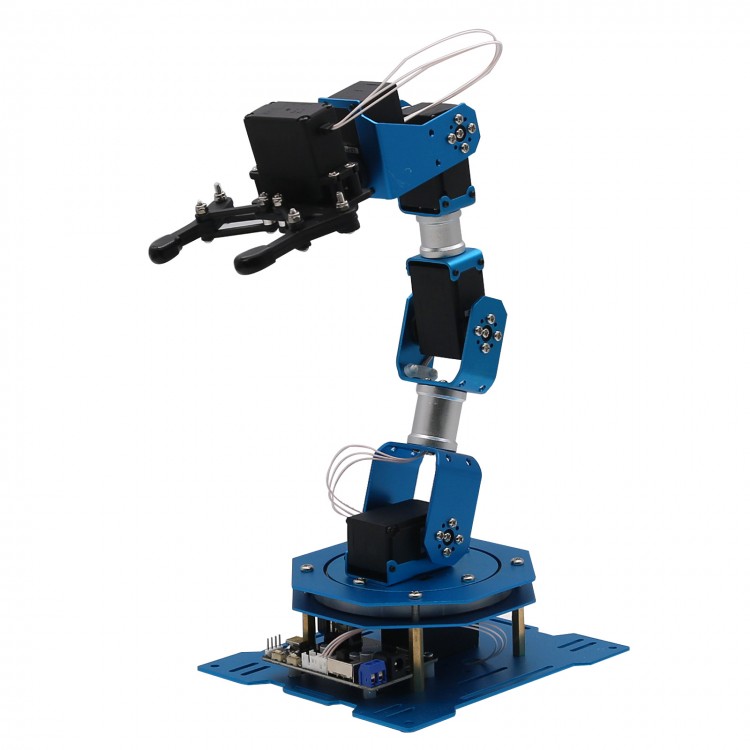

6DOF Robot Arm 6-Axis Aluminum Robotic Arm with Servos Unfinished Version for Arduino Scratch

6DOF Robot Arm 6-Axis Aluminum Robotic Arm with Servos Unfinished Version for Arduino Scratch

Description:
The xArm is a programmable robotic arm with feedback. It contains six durable bus serial servos. Each servo can feed back data such as position, voltage and temperature. Servos' body are built with an RGB indicator that can reflect the working status of servos in real time.

The unique linkage structure design and oxidized blasting surface treatment make its body more beautiful and refined.



3 Ways to Program:

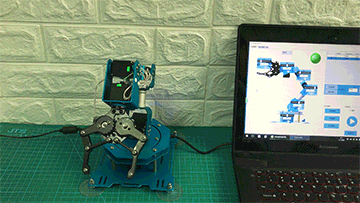

1. Computer Programming
It provides a graphical programming interface. The angle of the servos can be adjusted by dragging to adjust the posture of the robot arm.

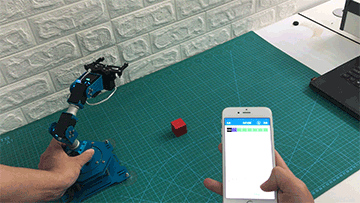

2. Mobile Phone Programming
The robot can also be programmed without the computer. It is easy to operate.

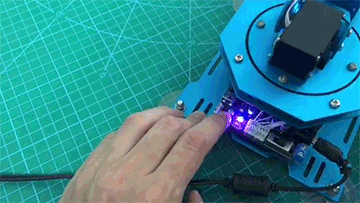

3. Offline Manual Programming
You can change the gesture of the robotic arm manually. And press the button on the machine to save action of all kinds. After recording a whole set of actions, you can press it again to play it.


3 Ways to Operate:



4 Main Features:

Development for Scratch/C Language:

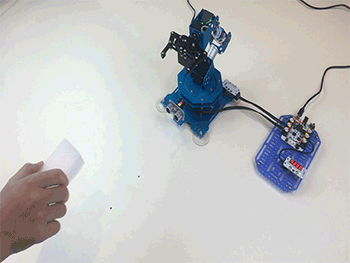

10 Amazing Functions:

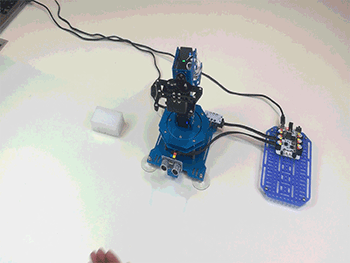

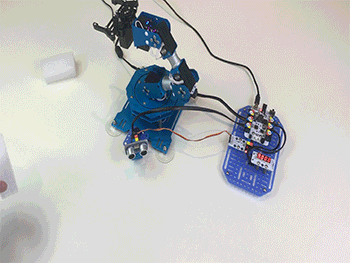

- One-direction Detection

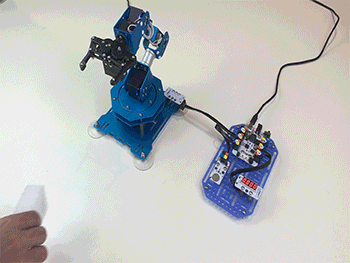

- Multi-direction Detection

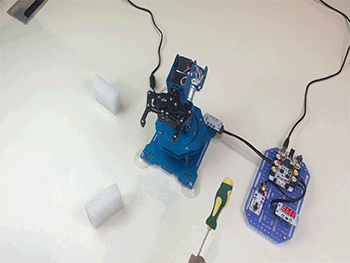

- Location Identification

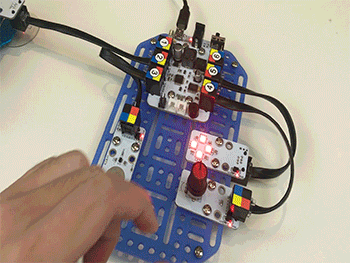

- Sound Control Mode

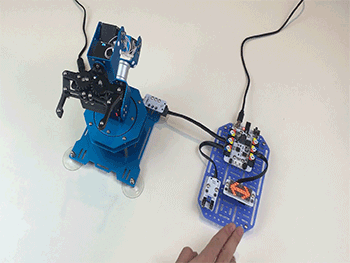

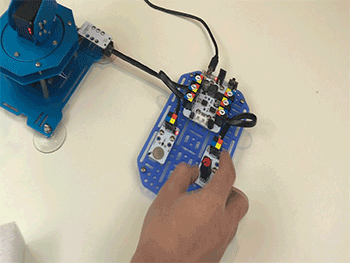

- Touch-to-Control Mode

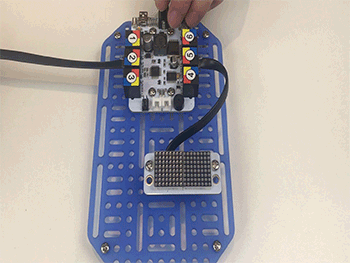

- Dot Matrix Display
- Gesture Control Mode

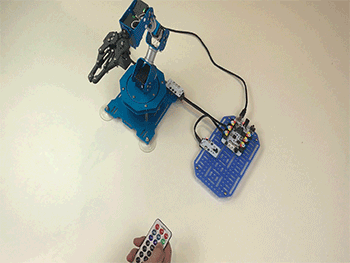

- IR Remote Control
- Adjustable Speed
- Colorful Lights

Specifications:
- Programming Ways: Support for Scratch, C Language
- Input: Ultrasonic Sensor Module, Touch Button Module, IR Remote Control Receiver Module, Sound Sensor Module, Line Sensor Module, Potentiometer Module
- Output: Digital Tube Module, LED Dot Matrix Module, RGB LED Module, Robotic Arm
- Micro Processor: Based on ATmega328P
- Power Supply: 7.5V, 5A DC Power Adapter
- Offline Way: Bluetooth Module
- N.W.: 1100g

Package Included:
- 1 x Set of Full Metal Structure Bracket (Including Servo Plates + Chassis Board)
- 1 x USB Cable
- 1 x DC Power Adapter
- 1 x Joystick Receiver
- 1 x Serial Bus Servo Controller Board
- 5 x LX-15D Serial Bus Servos
- 1 x Single-Axis Serial Bus Servo

- 1 x Set of Bracket for Development
- 1 x Ultrasonic Sensor
- 1 x Servo Adapter Module
- 1 x Sound Sensor
- 1 x Dot Matrix Module
- 1 x IR Remote Control Receiver Module
- 1 x IR Remote Control
- 1 x Potentiometer Module
- 1 x Cardboard Controller Board
- 1 x Development Interface Adapter Module
- 1 x 9g Servo with Accessories
- 1 x Digital Tube Module
- 1 x Touch Button Module
- 1 x Line Sensor Module
- 1 x LED Module
- Several Cable Ties

Note: This is the Unfinished Standard Version. Self-assembly is needed. Thank you!
