6N2 6P1 Tube Amplifier Unassembled Tube Rectifier Power Amplifier w/ Bluetooth DAC Decorder Board

6N2 6P1 Tube Amplifier Unassembled Tube Rectifier Power Amplifier w/ Bluetooth DAC Decorder Board

Description:
6N2 drives 6P1 (dual 6Z4 rectifiers).

Tube amplifier boasts built-in Bluetooth decoder board. The decoder board uses independent power supply to prevent power supply interference. Bluetooth version 5.0, support lossless transmission, support lossless decoding (for FLAC, APE and other formats) in USB (TF card) mode, support AUX (audio line direct input), support a variety of sound effects adjustment, high resolution, excellent sound quality. It is easy to use.

Features:
- High-frequency sound is transparent, the middle-frequency sound is mellow, the low-frequency sound is soft and natural
- All transformers are made of high-grade QA oxygen-free copper
- Single crystal copper transformers, and the silicon steel sheet is a brand-new special-grade steel single chip with a transparent and beautiful tone
- Coupling capacitors are German capacitors, capacitors for WIMA, and other accessories are brand new accessories
- Brand new tubes adopted

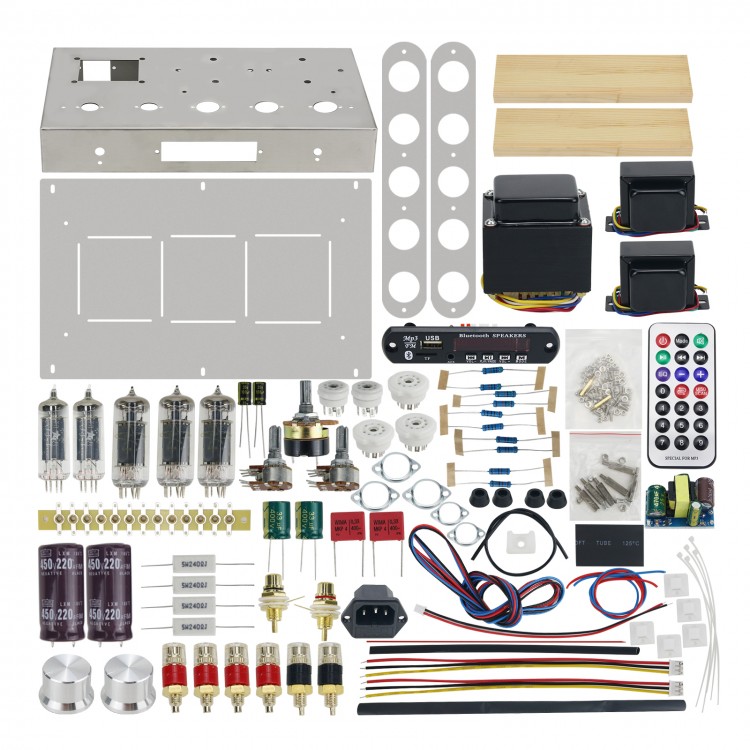

Package Included:
- 1 x Chassis
- 4 x Chassis Feet
- 1 x Bottom Plate
- Several Self-tapping Screws

- 1 x Power Supply Transformer [Primary: 230v-0v 0.15a/Secondary: 240v-0v 3.15v-0v-3.15v 3a 76*50 Power 100W (rated power 85W)]
- 2 x Output Transformers [(primary 5k/secondary: 0-4 ohm -8 ohm/output power 5W/special-grade chip)]
- 2 x Signal Input Sockets
- 6 x Output Terminals
- 1 x Power Socket (including fuse)

- 1 x Switch
- 1 x Potentiometer 100K
- 1 x Potentiometer Knob

- 2 x 6Z4 Tubes
- 1 x 6N2 Electron Tube
- 2 x 6P1 Tubes

- 2 x Small Seven-pin Tube Sockets
- 3 x Small Nine-pin Tube Sockets
- 2 x 0.33uf/450v
- 2 x 100uf/35v
- 2 x 220uf/450v
- 2 x 33uf/250v
- 2 x 150k
- 2 x 2k
- 2 x 36k
- 2 x 18k
- 2 x 470K
- 4 x 240Ω 5W
- Double Core Shielded Wire 30cm
- Casing 15cm
- Welding Line 2m
- Several 3mm 4mm Nuts
- 1 x LOGO
- 5 x Cable Ties

Note:
- The case is DIY with many holes and many processes, so scratches and dents are unavoidable during the processing. Please make sure that you don't mind before purchasing. Thank you!
- 6N2 can be upgraded for 6H2N for free. The quantity is limited, buy as soon as possible!
- 6P1 can be upgraded for 2pcs 6n1n. If it is needed, please contact us to pay extra money.
- Power cord is not included. Please prepare by yourself. It is a power cord on computer.
- Assembling and welding are needed.
