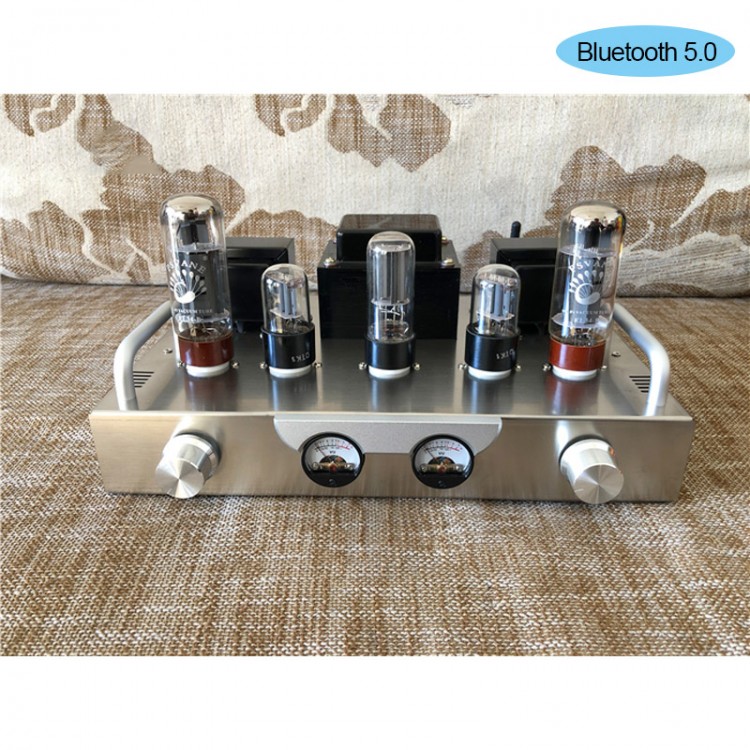

• 6N9P EL34 Spartan X1 Tube Amplifier DIY Kit 6.5W+6.5W Power Amplifier with 5.0 Bluetooth Unassembled

6N9P EL34 Spartan X1 Tube Amplifier DIY Kit 6.5W+6.5W Power Amplifier with 5.0 Bluetooth Unassembled

Availability: In stock, usually dispatched in 1 business day

  • Price:$358.88
  • Price in reward points: 3589 Reward Points: 36
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $351.70 $344.52 $333.76 $319.40 Contact US
Quantity:

6N9P EL34 Spartan X1 Tube Amplifier DIY Kit 6.5W+6.5W Power Amplifier with 5.0 Bluetooth Unassembled

Specifications:
Electric cattle: 96*50 165W, brand new premium piece*1
Output cattle: 66*35 8W fever 4+3 winding method, imported Nippon Steel 0.35 Z11 piece*2
Chokes: 57*25 4H new premium piece*1
Electron tube: 6N9P*2 (6H9C)/ EL34*2 (brand is the voice of nobles and dawn, shipped randomly)/ 5Z3P*1
Output power: 6.5W + 6.5W
Frequency response: 20hz-20khz
Output impedance: 4 ohms and 8 ohms
Signal to noise ratio: 90db
Input sensitivity: 500mv-1000mv
Input impedance: 100kΩ
Harmonic distortion: 1% (1khz)
Dimensions: 320mm (length) * 210mm (depth) * 160 (height)
Net weight: about 9kg

Package List:
1 x Tube Amplifier DIY Kit

Note:
-The product is a DIY kit, not assembled. Certain basic knowledge for tube amplifier DIY is required.
-This amplifier does not include power cords and audio cables.
-The amplifier must be connected to the speaker and then powered on, because the amplifier is an output transformer with a load, otherwise it is very easy to burn the output transformer.
