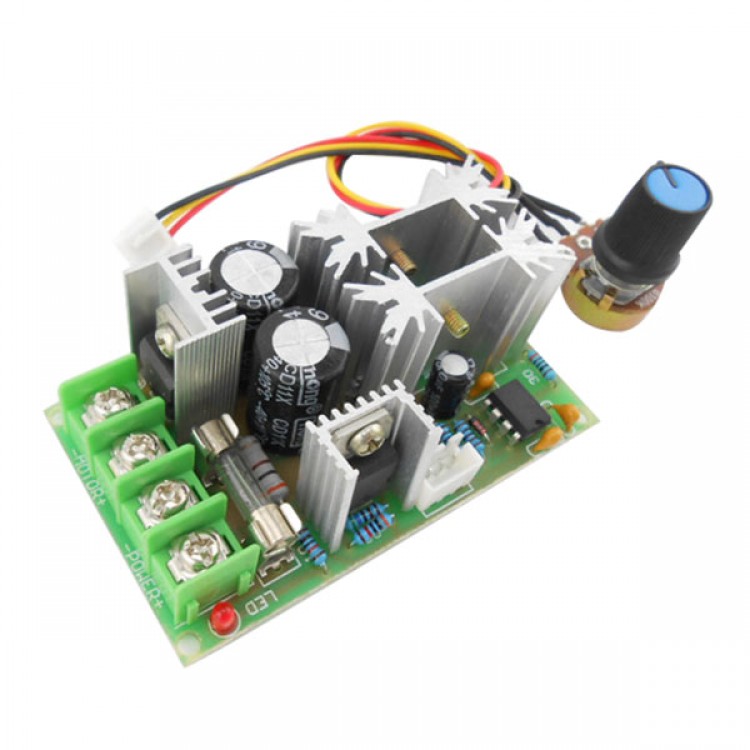

6V-48V DC Motor Speed Controller Regulator Large Power Drive Module PWM Regulator 20A Current Regulator
Description:
- 20A large current,
- Dual power tube design,
- Extraposition potentiometer
Parameters:
- Name: 20A-20S
- Input voltage: DC10-60V
- Output current: 0-20A
- Speed adjusting type: current regulator
- Speed regulator range: 0-100%
- Dimension: 77MM*45MM*28MM
- Mainboard dimension: 73MM*40MM
- Ouput voltage: Under load
- Continuous power: 1200W
- Speed control mode: potentiometer
- Control frequency: 25KHZ
- Rotaion button length: 20cm
- Weight: 73g
- Potentiometer installing hole: 7mm
