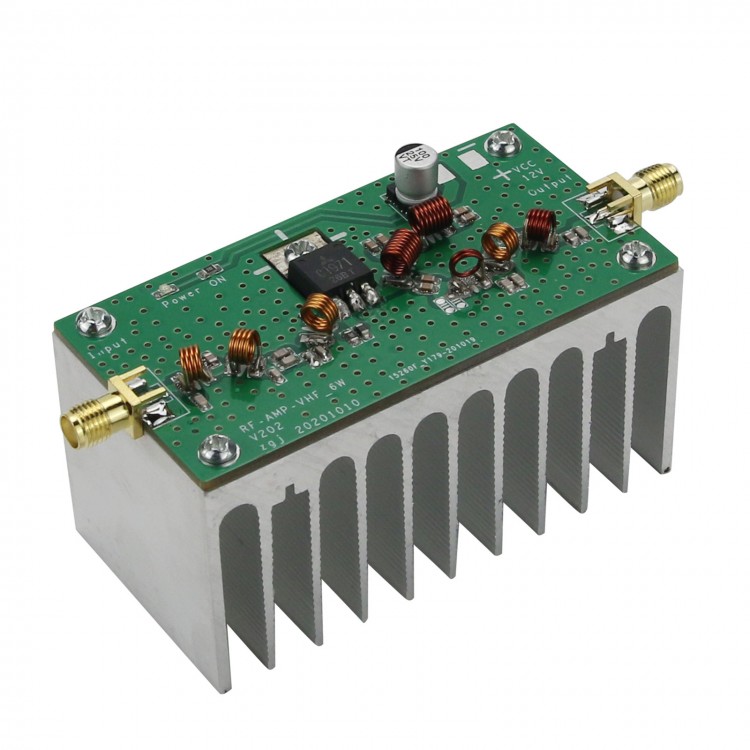

6W Power Amplifier FM with Heatsink Finished Power AMP. Optional FM 88-108MHz or 140-170MHz
Specifications:
- Welding debugging with radiator
- Optional Working Frequency:
140-170MHz
88-108MHz
Note: You can only choose to work at 88-108MHz or 140-170MHz. The two bands cannot exist on one board at the same time.
- Input: no less than 0.5W
- Output: 6W
- Typical Gain: 10dB
- Maximum Gain: 11dB
- Supply Voltage: 12V (15V Max)
- Working Current: 1-1.5A
- Size: 8x4cm (excluding the size of protrusions)
- Weight 97g (including radiator)
Package Included:
- 1 x Power Amplifier
Note: Optional Working Frequency: 140-170MHz or 88-108MHz. Please leave a message about your desired one. Thank you!
