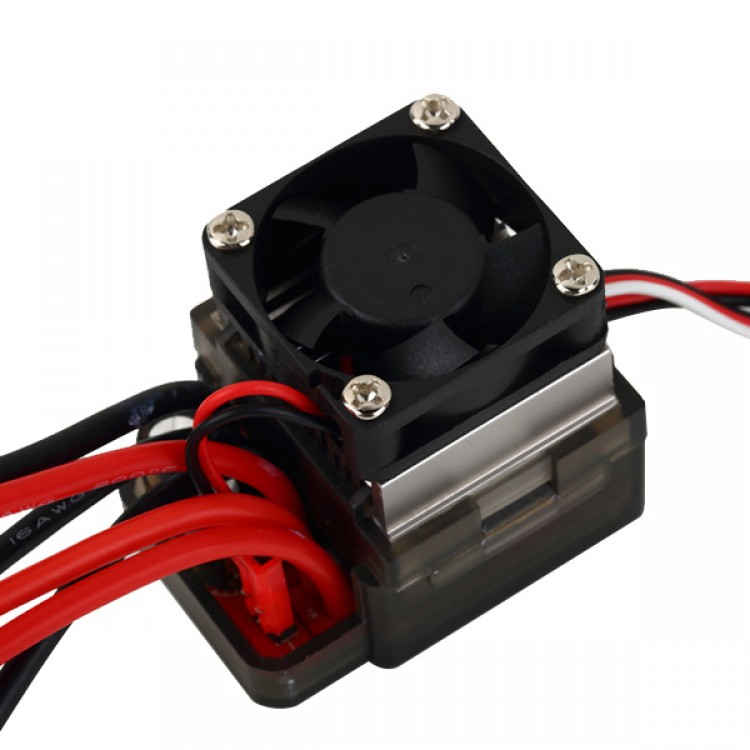

7.2-16V High Voltage 320A Brushed ESC w/Brake & Fan Heat Sink for RC Car Boat
Products Description:
- Power range:7.2V-16V
- Input voltage(advise):6-12 cells NiMH/NiCd or 2-4 cells LiPo.
- Weight:60g (including connectors and switches)
- BEC:5.6V 2A
- Output current:forward 320A
- Out of control protection
- Low voltage protection
- Over-voltage protection
- With heat sink
- For 540 dual motor or single motor
- Operating system : forward, reverse, and brake
- With this power transfer would not have to worry about slow tram Motor Boats only need to
- replace the original power transfer
Operational Guidelines:
- The right and a power supply battery connection on both ends of the wiring board the red line for positive, black, compared with negative. (Or standard DC battery connection plug Daejeon male plug / T-plug / banana plug)
- ESC output red and black wire are connected to the red and black lines of the car 540 motor.
- Open the ESC power switch, if no signal input, motor will send a beep ~ beep ~ beep \"alarm sound.
- Turn the transmitter power signal injection will issue the voice of the duo ~ ~ Mi \", has been connected
- To prove the transmitted signal and receiving the electrical and mechanical tone.
Specifications:
- Net weight:92 g
- Package weight:102 g
Package Content:
- 1 x 320A ESC
