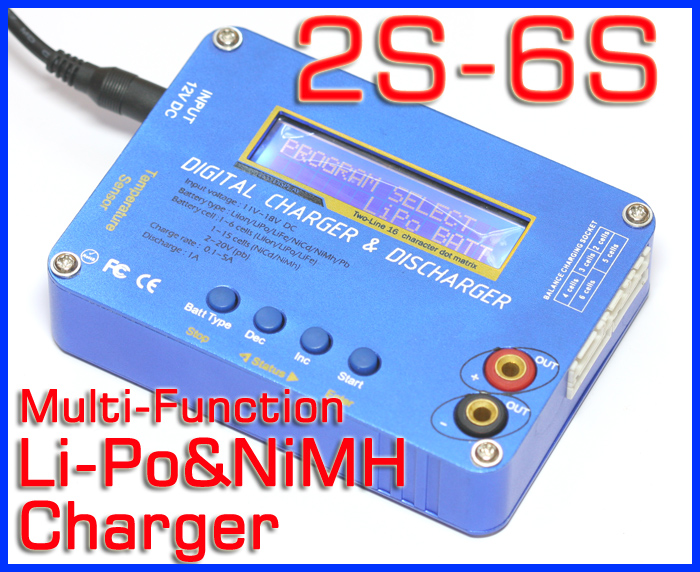

7.4V-22.2V 2S-6S Li-Po NiMH Battery Balance Charger B6 Blue

Description:

• This Item is a rapid charger with a high performance microprocessor and specialized operating software
• Muti-Function charger balancer and discharger
• High-Power and high performance circuit
• Monitoring the voltage of individual cell

Spcifications:

• Operating voltage range :DC11.0～18.0 Volt
                                      AC to DC adaptor (DC11.0～18.0V/5A)
• Circuit power: Max. charge power 50W
                       Max. discharge power 5W
• Charge current range:0.1～5.0A
• Discharge current range:0.1～1.0A
• Current drain for balancing Li-po:300mAh/cell
• NiCd/ NiMH battery cell count:1～15cell
• Ii-ion/ Polymer cell count:1～6 series
• Pb battery voltage:2V-20V
• Weight:270g (Net Weight)
• Dimensions:135 x 85.5 x 30mm

Feature:

• Optimized operating software
  This charger features the so-called AUTO function that set the feeding current during the process of charging or discharging. Especially for Lithium batteries, it can prevent to overcharging which may lead to an explosion due to the user's fault. It can disconnect the circuit automatically and alarm once detecting any malfunction. All the programs of this product were controlled through two way linkage and communication, to achieve the maximum safety and minimize the trouble. All the settings can be configured by users.

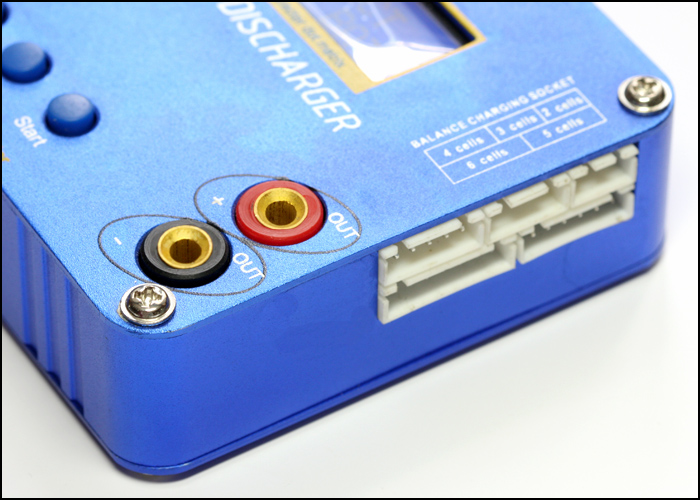

• Internal independent Lithium battery balancer
  This employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging.
• Balancing individual cells battery discharging
  During the process of discharging, B6 can monitor and balance each cell of the battery individually. Error message will be indicated and the process will be ended automatically if the voltage of any single one cell is abnormal.
• Adaptable to various type of lithium battery
  This charger adaptable to various types of Lithium batteries, such as Li-ion, LiPo and the new LiFe series of batteries.
• Fast and storage mode of lithium battery
  Purposes to charge Lithium battery variess, 'fast' charge reduce the duration of charging, whereas 'store' state can control the final voltage of your battery, so as to store for a long time and protect useful time of the battery.
• Maximum safety
  Delta-peak sensitivity: The automatic charge termination program based on the principle of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the process will be terminated automatically.
• Automatic charging current limit
  You can set up the upper limit of the charging current when charging your NiCd or NiMH battery; it is useful for the NiMH battery of low impedance and capacity in the 'AUTO' charging mode.
• Capacity limit
  The charging capacity is always calculated as the charging current multiplied by time. If the charging capacity exceeds the limit, the process will be terminated automatically when you set the maximum value.

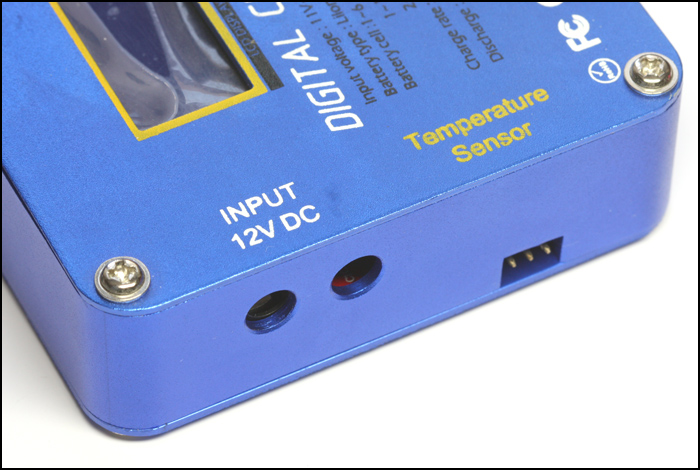

• Temperature threshold
  The battery's internal chemical reaction will cause the temperature of the battery to rise. If the temperature limit is reached, the process will be terminated.
• Processing time limit
  You can also limit the maximum process time to avoid any possible defect.
• Input power monitoring
  To protect the car battery used as DC input power from being damaged, its voltage keeps being monitored. If it drops below the lower limit, the process will be ended automatically
• Data store / load
  The maximum five batteries's data can be stored for users' convenience. You can keep the data pertaining to program setting of the battery of continuous charging or discharging. Users can call out these data at any time without any special program setting.
• Cyclic charging / discharging
  1 to 5 cyclic and continuous process of charge > discharge or discharge > charge is operable for battery refreshing and Balancing to stimulate the battery's activity.

Package include:

Gallery:

• 1 x B6 battery balance charger
• 1 x Engine Fire charge adaptor
• 1 x Temperature probe
• 1 x English manual
