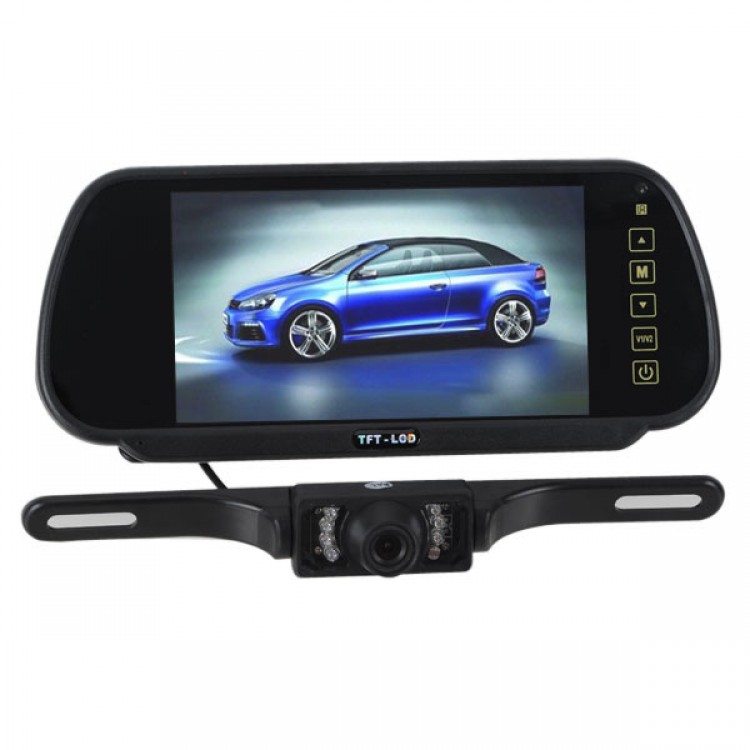

7" Car LCD Monitor Mirror + IR Reverse Wide Screen Car Rear View Backup Camera Kit

7" Car LCD Monitor Mirror + IR Reverse Wide Screen Car Rear View Backup Camera Kit
Descriptions:
- 7 Inch car monitor for rear view parking and car DVD
- Parking sensor option show the exact distance of subject behind the car
- Rear view camera and front view camera option
- Auto turn on and change picture when reversing the car

Features:
- Screen Size: 7 inch
- Double TV system: PAL/NTSC.
- Resolution: 480*234*RGB(QVGA)
- Two video input: AV1, AV2. DVD/VCD, back-view camera.
- Auto switch to reversing picture; special optical lens with anti-glare function and broad vision;
- Connectable to parking sensor systems, able to realize a perfect combination of sound, image, direction telemeter and digital telemeter

Technical parameters
- Operating Voltage:12V DC(24V available)
- Operation current: 20mA~200mA
- Sensor installation height: 45~60cm
- Detection distance: 0.3~2.0m
- Ultrasonic Frequency:40 KHZ
- Operating temperature: -10°C ~ +65°C
- Beep volume: ≧48dB
- Power Consumption: 8W MAX
- Dimensions:10(H)*26(L)*2(W)cm

Backup Camera:
Specfications:
- Distance Transmission:100m
- Resolution:420-cable image sensor
- chip:OV 1/3" Color CMOs
- Plastic casing and Waterproof design for ourdoor application
- Visual angle:120 degree
- diaganal visual angle:90 degree
- High defination IR Night viewing
- 6.8G shockproof/Ip 66 waterproof
- Veido input :1.0V
- Powersupply:DC12+6V 200ma
- Emission frequency:2414MHz
- working temperature:-20-60 Centigrade
- Applicable for all kinds of cars,connect red cable to the anode of backup lamp and connect black cable to the cathode

Receiver:
- Plug and playconvenient to use,working voltage:DC5V
- Working current:150ma
- working tem:-20-60 centigrade
- Sensitivity:-93dbm
- Video brandwidth:8.0mhz
- Frequency receiving mode:built in frequency phase lock loop
- Signal demodulation mode:wideband frequency demodulation
- RF input impedance:75ohm
- IF frequency:480mhz
- IF bandwidth:18mhz
- AV output:composite video
Package Includes

-1 x LCD Mirror Monitor
-1 x Low Illumination Color Car Rear View Camera
-1 x Installation Accessories
