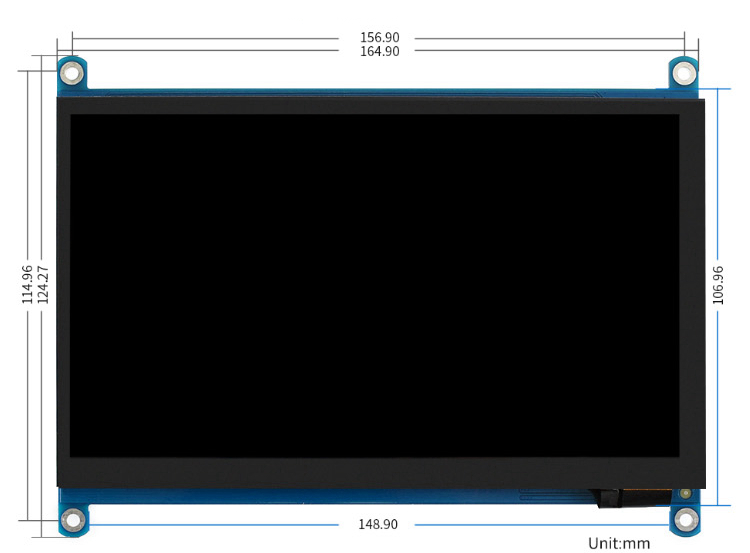

7" Capacitive Touch Screen HDMI LCD IPS Display 7inch HDMI LCD (H) without Shell

7" Capacitive Touch Screen HDMI LCD IPS Display 7inch HDMI LCD (H) without Shell

Features:
- 7" LCD display
- Resolution 1024x600
- HDMI/VGA display interface
- IPS display panel
- 170° visual angle
- Capacitive touch control
- Support 5-point touching
- USB connection port for touching
- OSD Menu: Adjustable brightness and contrast ratio
- Audio Output 1: 3.5mm headphone port
- Audio Output 2: 4-Pin port
- Compatible Game Consoles: For Xbox360, Sony PS4, Nintendo Switch, etc.
- RoHS2.0 certification

Supported Devices & Systems:
For Raspberry Pi
- For Raspbian: 5-point touch control, driver free
- For Ubuntu/Kali/WIN10 IoT: 1-point touch control, driver free
- For Retropie: Driver free
- For all versions of Raspberry Pi

For Jetson Nano:
- For Ubuntu: 1-point touch control, driver free

For PC:
- For Windows 10/8.1/8/7: 5-point touch control, driver free

For Game Consoles:
- For Xbox360, Sony PS4, Nintendo Switch and the like

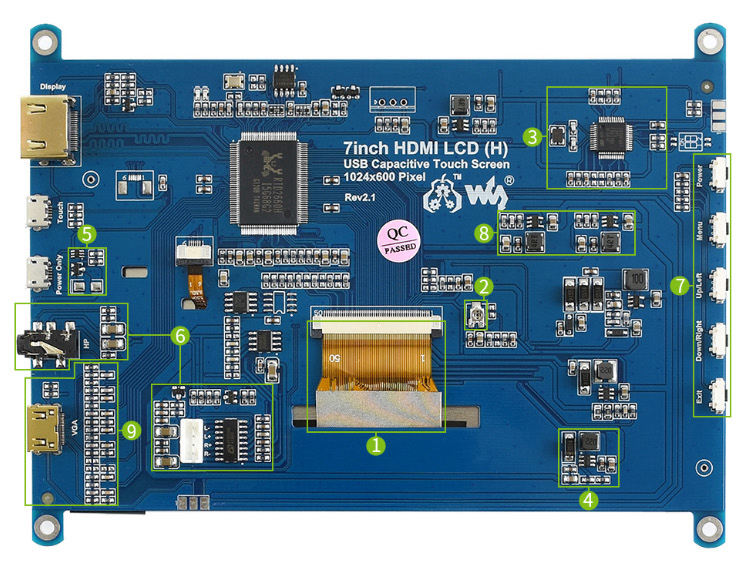

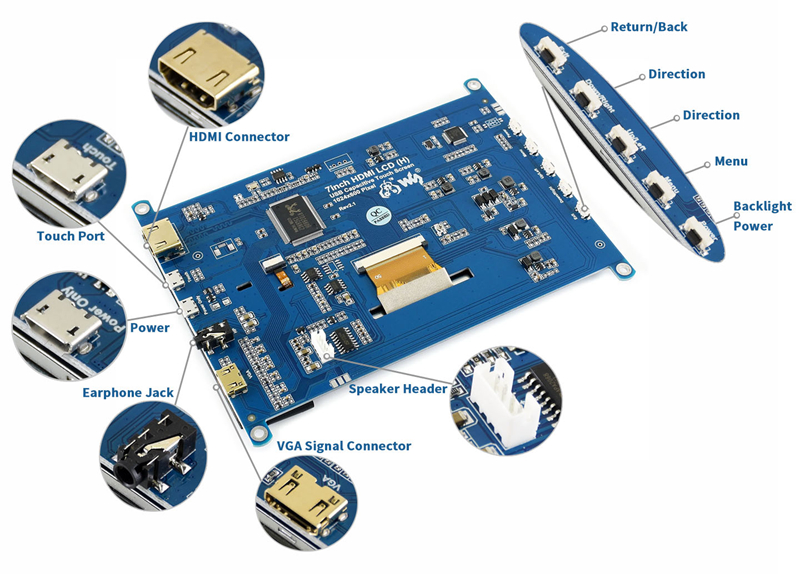

①Thanks to LCD FFC anti-interference design, it can be used in industrial field.
②VCOM Voltage Regulation Resistor: VCOM voltage can be adjusted to maximize display performance.
③USB Protocol Converter: Turn touch signals into multi-touch protocol for smooth multi-touch function
④USB Wide Voltage Input Circuit: Supports 4-5.5V USB power supply input. When your miniPC is running for a long time or compiling the kernel, it may make USB output voltage decreased. Without the circuit, the display might flash or fail to touch.
⑤One-Way Isolation Circuit: When it connects to Touch to power, Touch inputs 5V to power touch and display circuit. When it connects to Power Only to power, Touch inputs 5V to power touch circuit and Power Only powers other circuits. These two power supply are completely separated.
⑥Audio output ports can be connected to your headphone and speakers. It supports 2.6W power amplifier circuit for each channel of speakers.
⑦OSD menu buttons enable adjustable backlight brightness and display color.
⑧With DC-DC LCD driving circuit, it generates less heat for long-time operation.
⑨VGA port can be connected to VGA devices.




Development Resources:
Wiki : www.waveshare.com/wiki/7inch_HDMI_LCD_(H)

FAQ:
Why the LCD doesn't support for my Raspbian?
To use the LCD with the Raspberry Pi official image, driver should be installed first. Please refer to the user manual.

However, for the first testing, you may want to use our provided image directly.

Why the LCD still doesn't work with the Waveshare provided image?
Make sure the hardware connection is correct and connects fine.

Make sure the image in TF card is burnt correctly.

The PWR will keep on and the ACT will keep blinking when the Raspberry Pi starts up successfully, in case both of the two LEDs keep on, it is possible that the image was burnt incorrectly OR the TF card was in bad contact.

Which power supply should I use?
It is recommended to use a 5V/3A power adapter for the Raspberry Pi other than USB connection, otherwise the Pi may failed to start up because the PC's USB port might have not enough power.

For large size LCDs, say, 10inch diagonal or more, another stand-alone power adapter is also required to provide power to the LCD.

For more info, please check the wiki page.

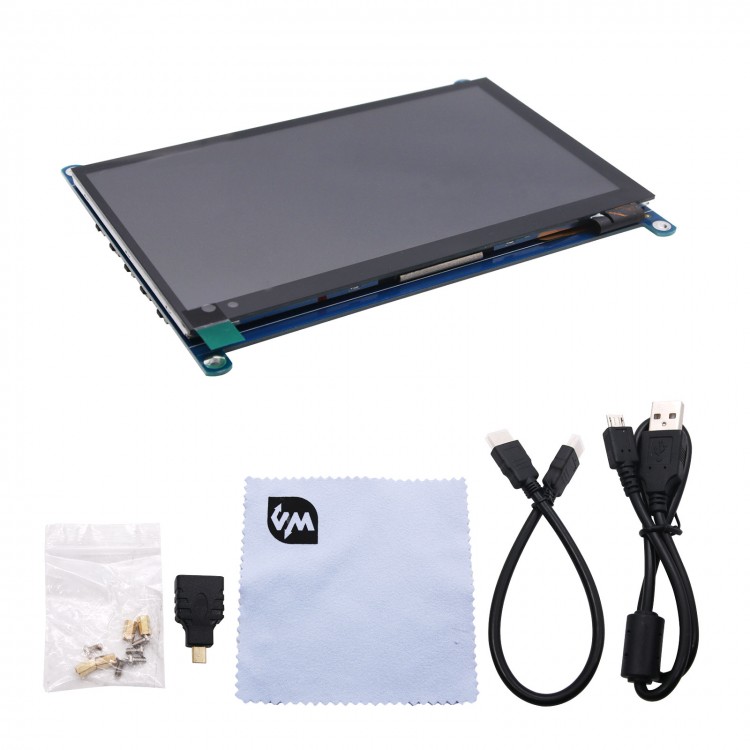

Package Included:
- 1 x 7inch HDMI LCD (H)
- 1 x HDMI Cable
- 1 x HDMI to Micro HDMI Adapter
- 1 x USB Type A Plug to Micro B Plug Cable
- 1 x Quick Start Guide

Note:
- It support 5-point touching. Please note that touching points is related to your software system.
- For Raspberry Pi Zero W: mini HDMI conversion adapter and USB adapter cable are needed, please purchase separately.
- Other items in the pictures are not included.
