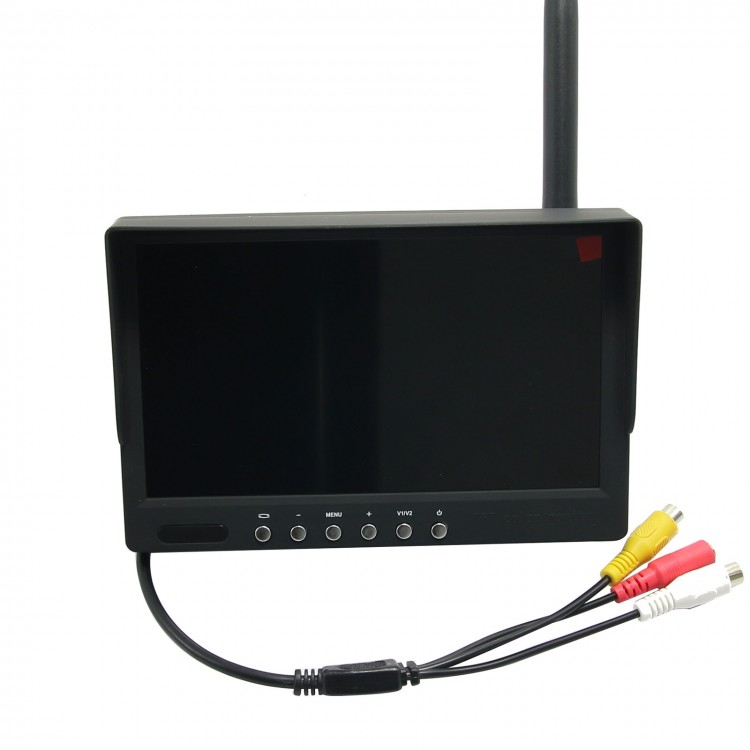

7 Inch Monitor 5.8G Reciever LED Portable Display HD Display (No Battery Version) for FPV Photography

7 Inch Monitor 5.8G Reciever LED Portable Display HD Display (No Battery Version) for FPV Photography

Description:
- Item Name: FPV 5.8G 7 Inch LED Monitor
- Screen size: 7 inch
- Screen type: TFT LCD Screen/long life, LED backlight
- Resolution: 800 x 480
- Brightness: 450cd/m2
- Contrast: 500:1
- View Angle: 140/120degree (Horizontal/Vertical)
- Working Voltage: DV 7-13V(center positive) or 11.1V Li-battery
- Power Consumption: < 6w
- Size: 170 x 110x 40mm
- Working temperature: -10℃~+ 65 ℃

Features:
- With lens hood
- With 4000mw battery capacity 1S, can be used more than 4 hours
- With rechargeable line, can be directly connected to the computer or mobile phone charger
- With a switch and a power indicator, charging indicator light, easy to understand and operate
- The default for 6DB antenna, signal is stable and reliable
- The whole circuit exclusive design, innovation, mature module, a number of leading technology
- Anti interference technology, the signal is more stable
- Private CNC carving, factory quality
- The original line AV signal line is preserved intactly, AV input and output won't be affected

Working Frequency:
- CH1: 5705MHz
- CH2: 5685MHz
- CH3: 5665MHz
- CH4: 5645MHz
- CH5: 5885MHz
- CH6: 5905MHz
- CH7: 5925MHz
- CH8: 5945MHz

Features:
- Built-in 5.8Ghz receiver
- RPSMA Antenna Connections
- Built-in 1CH 5.8Ghz AV output and 1CH AV input
- Support 9 languages menu selection

Package Included:
- 1 x Multi function receiver (without battery version)
