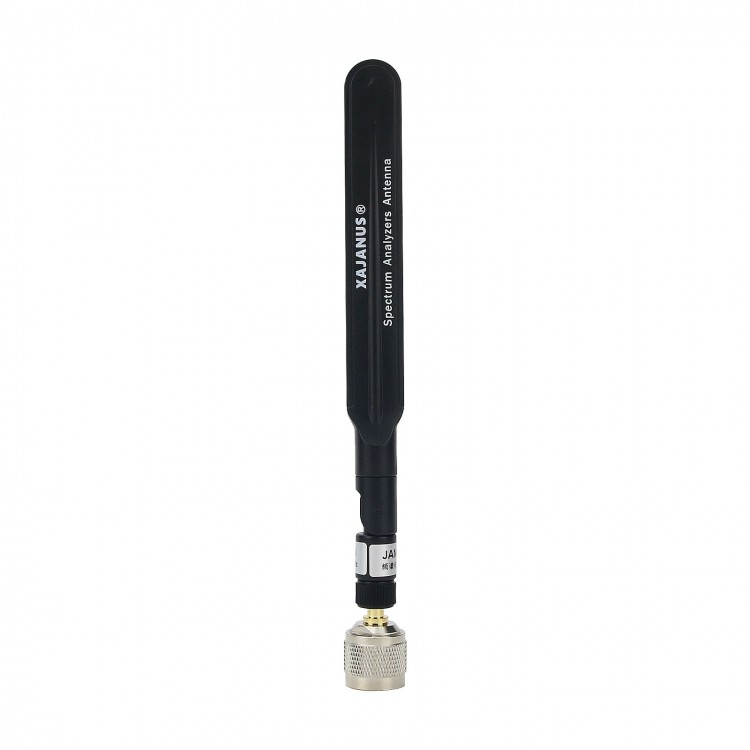

700KHz~3.0GHz Omni Directional Antenna Dedicated Spectrum Analyzer Antenna SWR <3:1 Gain -2 To 2DBi
Description:
JS-70300 is a dedicated omnidirectional antenna for high-sensitivity spectrum analyzers. Antenna interface RFN is a common standard connector for international and domestic spectrum analyzers.
The research and development of the antenna is designed with reference to the test characteristic performance of spectrum analyzers. The broadband frequency of 700KHz~3.0GHz of the antenna is more suitable for the test requirements of spectrum analyzer for high-end Bluetooth products.
The antenna structure design can rotate 180° horizontally and bend 90° axially, which can meet the adjustment of orientation during production test.
In terms of widening the use of antennas, fully considering the versatility and applicability of the antenna, the antenna adopts the joint design of RFN/SMA two connection methods, and the broadband frequency of 700KHz~3.0GHz can also meet the compatible use of equipment in other fields. The antenna can also be used for module testing, data terminal, Internet of Things, full Netcom, and smart home signal testing.
Main Parameters:
- Model: JS-70300
- Item name: Special omnidirectional broadband antenna for spectrum analyzer
- Frequency: 700KHz~3.0GHz
- Gain: -2 to 2dBi
- Standing wave ratio: <3:1
- Efficiency:> 55%
- Standard impedance: 50Ω
- RF connection: RFN/SMA
- Use environment: -20℃ to 55℃; Humidity 0~90%
- Net weight of antenna: 39g
- Dimensions: 195 x 20 x 10mm/7.7 x 0.8 x 0.4"
Package Included:
- 1 x Antenna
Note:
- Spectrum analyzer is not included.
