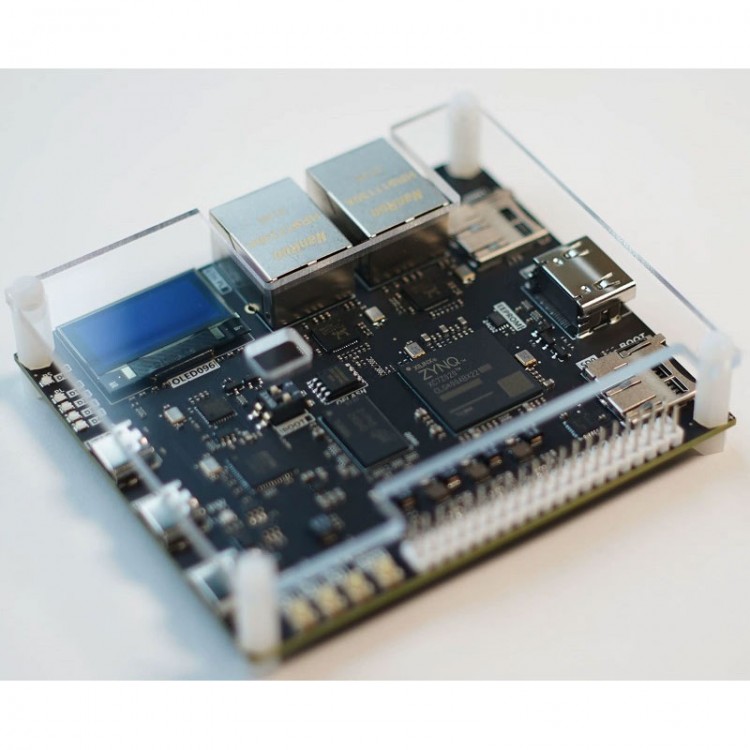

7010 Mini Development Board FPGA Development Board 5V Type-C Powered with Acrylic Shell for ZYNQ

7010 Mini Development Board FPGA Development Board 5V Type-C Powered with Acrylic Shell for ZYNQ

Description:
It is a SoC board. It supports for FPGA development, ARM embedded development, chip verification and embedded LINUX! It also supports for PYTHON development, HLS and image processing libraries.

It supports for VIVADO 2018.3 development environment. Furthermore, it supports PYNQ which is equal to Python and ZYNQ.

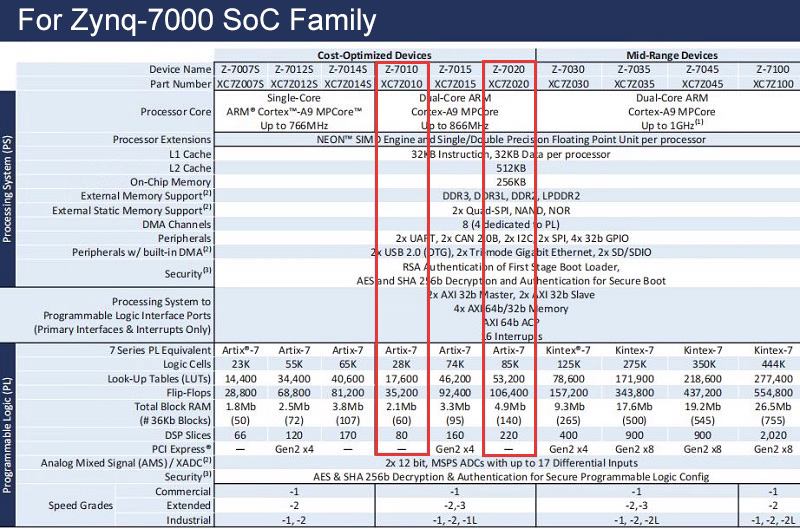

Main chip parameters:
- Main chip model: XC7Z010-1CLG400 I
- Processor model: on-chip hard-core processor for ZYNQ, dual-core Cortex-A9
- Processor frequency: 666MHZ
- DDR3 (PS): 512MByte, 16-bit width, 1066M data rate
- Logic Unit (LC): 28K
- Lookup table (LUT): 17600
- DSP unit multiplier: 80
- Trigger: 35200
- RAM: 2.1MBit
- Speed class: -1
- Device grade: Industrial -40 to 85°C

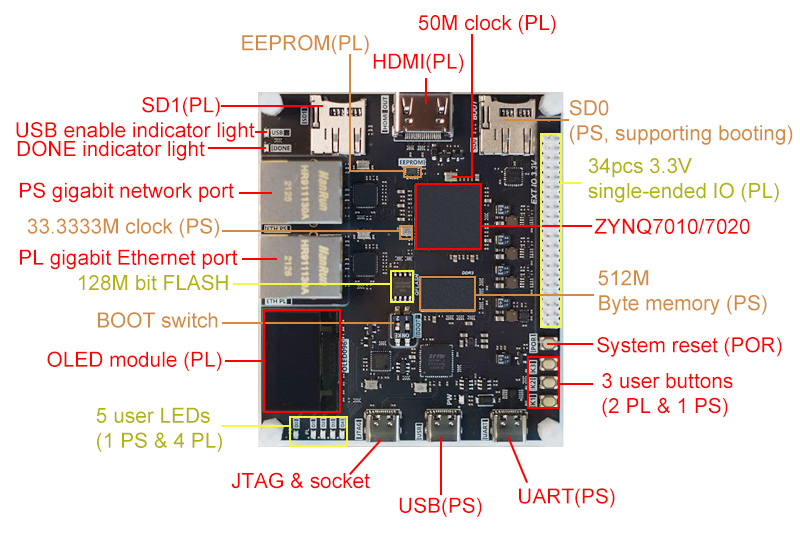

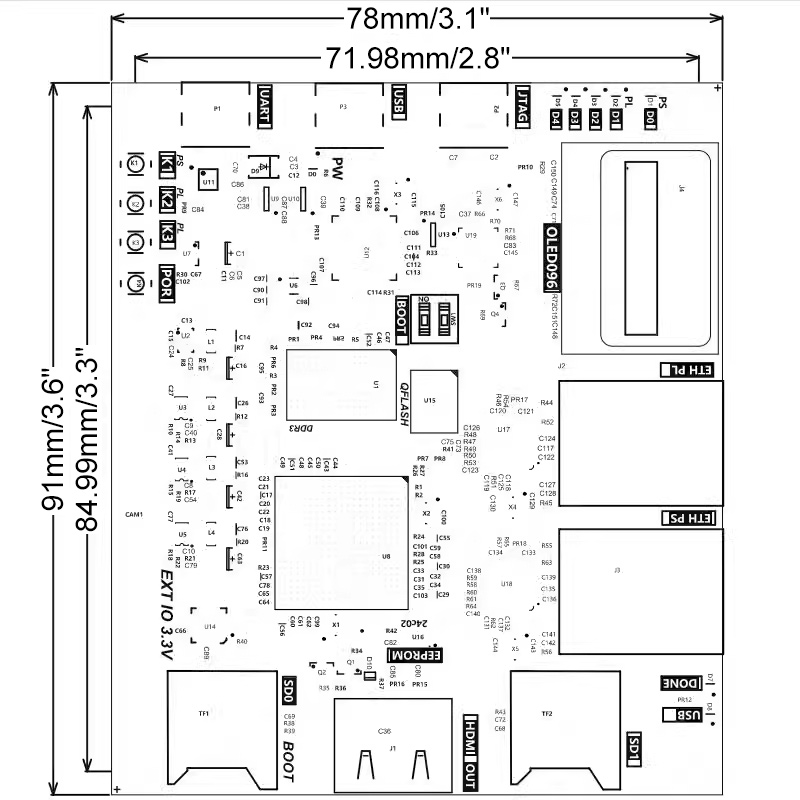

Function ports of the board:
- Development board power supply: powered via a TYPE-C interface. All USB ports of the development board can be powered
- Board clock: 33.33M (PS), 50M (PL)
- Ethernet: Gigabit RTL8211E, RGM II interface, one ETH0 and one PL of PS
- USB interface: USB2.0, supporting HOST and SLAVE functions
- Debugger: On-board downloader debugger supports for ARM and FPGA development
- Serial port and power port: one CH340 serial port, TYPE-C
- SD card: PS's SD0 and SD1, and SD0 is bootable (support SD cards up to 32G)
- HDMI interface: one HDMI output interface, maximum support 1080 at 60HZ
- 5 user LEDs: one PS LED and four PL LEDs
- 3 user buttons: two PL pin buttons and one PS pin button
- Boot setup switch: A BOOT DIP switch for startup setup
- On-board OLED module: 0.96-inch 128*64 monochrome OLED, SPI interface, located in PL
- FLASH: W25Q128FVSG, 128Mbit (16M bytes)
- 40-pin extended IO port: including 34 single-ended IO ports, on BANK34, 3.3V standard; the pins provide 5V and 3.3V power supply to the external. The signal is strictly equal length, 1615mil±1mil
- System reset: One system reset (POR) button
- Development board indicator lights: DONE, USBCPEN and power plug-in indicator lights
- Development board power system: on-board core power supply: 1.0V/6A; Other channels: 1.8V/3A, 1.5V/3A, 3.3V/3A; BANK34 VCCO voltage of extended IO port 40P: 3.3V

Package Included:
- 1 x Development Board
- 1 x Type-C Data Cable
- 4 x Pairs of Nylon Screw Studs
- 1 x Acrylic Board
