70M-6GHz SDR Software Defined Radio USB 3.0 Compatible with USRP B205 mini +6061 Aluminum Alloy Case

70M-6GHz SDR Software Defined Radio USB 3.0 Compatible with USRP B205 mini +6061 Aluminum Alloy Case

 Fully compatible with USRP B205mini high performance SDR, 6061 Aluminum Alloy Case

Features:
- On the basis of the original design, the performance of USB3.0 is improved, using high-performance 150,000 logic gate FPGA XILINX LX150, 8-layer PCB design. The upgraded version of B205-MINI is fully compatible with the USRP B205-MINI driver and firmware. It can cooperate with the up-converter produced by Shanhei to make B205-MINI work in the short-wave band and expand the working frequency of B210. The working frequency after cooperation with the inverter is 1.8 M-6GB. In addition, the short-wave transmission function can be supported by upgrading the down-converter module.
- In the reception test of CW modulated signal, 6DB signal-to-noise ratio, frequency within 2G receiving sensitivity -122dbm. The receiving sensitivity threshold of 4G frequency is -118dbm. 4G and above receiving threshold -115dbm
- Transmit the CW modulation signal, within 3G, the maximum transmit power is greater than 10DBM, the typical value of 1GHz is 18dbm, and the typical value of 2GHz is 15dbm. The typical maximum value of 4.5GHz is 13dbm. The typical maximum value of 5.5GHz is 11dbm.

Speicifcation:
-  Wide frequency range: 70 MHz - 6 GHz
- Up to 56 MHz of instantaneous bandwidth
- Full duplex operation
- User-programmable Xilinx  LX150  FPGA
- Fast and convenient bus-powered USB 3.0 connectivity
- Synchronization with 10 MHz clock reference or PPS time reference
- GPIO and JTAG for control and debug capabilities

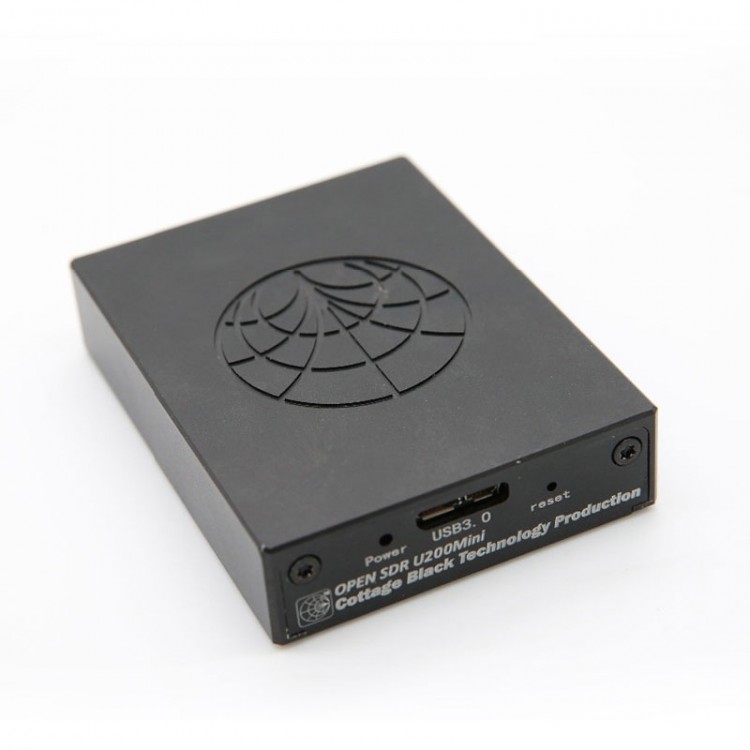

- Full aluminum enclosure

Applications
- Hobbyists and New Users
- The powerful UHD software API reduces the learning curve and provides a quick start experience for new users and longtime
- hobbyists interested in AM/FM applications, cellular communication, and algorithm exploration.


Wireless Signal Discovery and Analysis
- The content-rich GNU Radio community provides a wide range of tools and algorithms that enable discovery and analysis of air interface protocols.

OEM and Integration
The compact  and cost-effective design of the B200mini Series make it ideal for integration into larger systems for prototyping and deployment. The 10 MHz ref/ PPS and GPIO features provide seamless synchronization and

Package:
-1 x sdr board(with metal case)
-1 x  USB cable
-1 set screw
