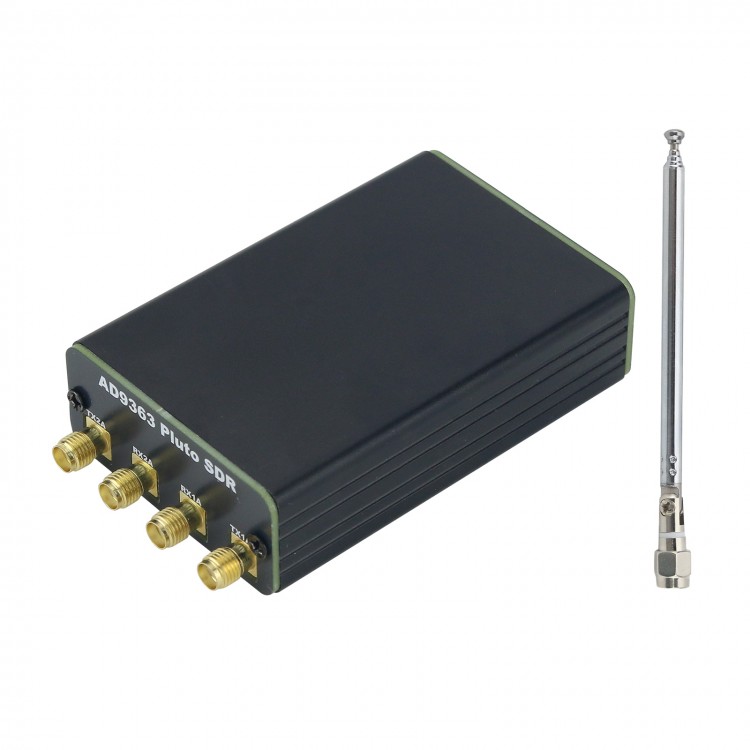

70MHz-6GHz Zynq7020+AD9363 SDR Software Defined Radio Development Board with CNC Shell for Pluto SDR MATLAB
Improvements:
- Update firmware V0.38, hacked to AD9361, supports 70MHz-6GHz, dual transmitting and receiving, and supports both USB and Ethernet ports.
- Improved power supply stability.
- Adding 9363 external input clock interface.
Features:
- AD9363 chip, replacing AD9361, with frequency range of 70MHz~6GHz. Current laboratory tests show that there is not significant differences between these two chips.
- Board size: about 5 x 8cm
- Peripheral: double DDR, 1GB
- For N25Q128 FLASH, can be used to start.
- One channel SD card, can be used to start.
- Integrated FT2232 debugger, with serial port.
- PS end USB2.0.
- PS end gigabit Ethernet port.
- PL end with crystal oscillator, can drive AD9363 with pure PL.
- Support external input of local oscillator.
- Equipped with CNC shell.
Supported Software:
- For IIO Oscillscope, SDR Sharp, GNU Radio, MATLAB, and other software that support for libiio.
Package Included:
- 1 x Software Defined Radio
- 1 x SD Card
Note:
- Please contact our customer service for firmware resources after receiving the product.
