| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $87.28 | $85.50 | $82.83 | $79.26 | Contact US |
Specification:
- Welding station voltage: AC 26V 50Hz
- Welding station power: 70W
- Whole machine voltage: AC 220V ± 10% 50Hz
- Whole machine power: 750W (Max.)
- Hot air heater voltage: AC 220V ± 10% 50HZ
- Hot air heater power: 700W
- Temperature range: 100-500℃
- Temperature stability: ±5℃
- Air flow: 120L/Min. (Max.)
- Plug: AU/US/UK/EU plug (Send with an adapter according to your country )
- Welding station dimension: Approx. 14.5x17.5x10cm/ 5.71x6.89x3.94"
- Hot air heater dimension: Approx. 23.5x5.5x3.8cm/ 9.25x2.17x1.5"
- Welding iron length: Approx. 18cm/ 7.09"
- Hot air heater and welding iron 2in1 rework soldering station.
- Dual LCD digital displays to show precision temperature.
- Extremely low noise and space saving design.
- Intelligence self-detection function features safe personal operation.
- Automatic cooling function for effectively prolonging the heater's life and protecting the hot air heater.
How to use:
1. Clean the electronic components to be soldered.
2. Once iron reaches temperature (not too high, recommend 300℃).
3. Apply a little solder to the heated iron tip to prevent oxidation, then rub the iron tip to evenly extend the solder to the surface of the iron tip.
4. Start to solder.

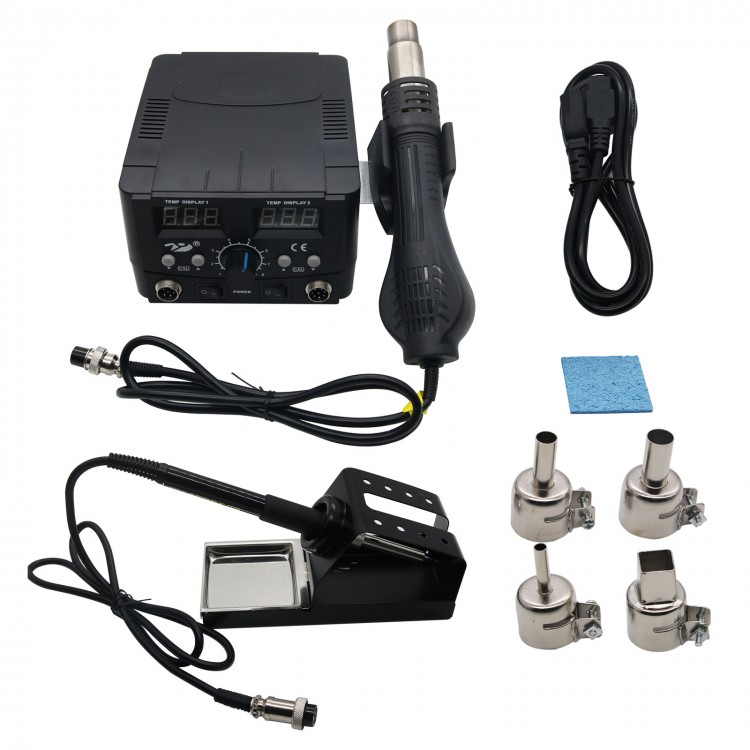

Package Included:
1 x Device Host
1 x Hot Air Heater
1 x Hot Air Heater Handle Bracket
1 x Welding Iron
1 x Basking Iron Seat
1 x Clean Sponge
4 x Air Heater Nozzles
1 x User Manual
