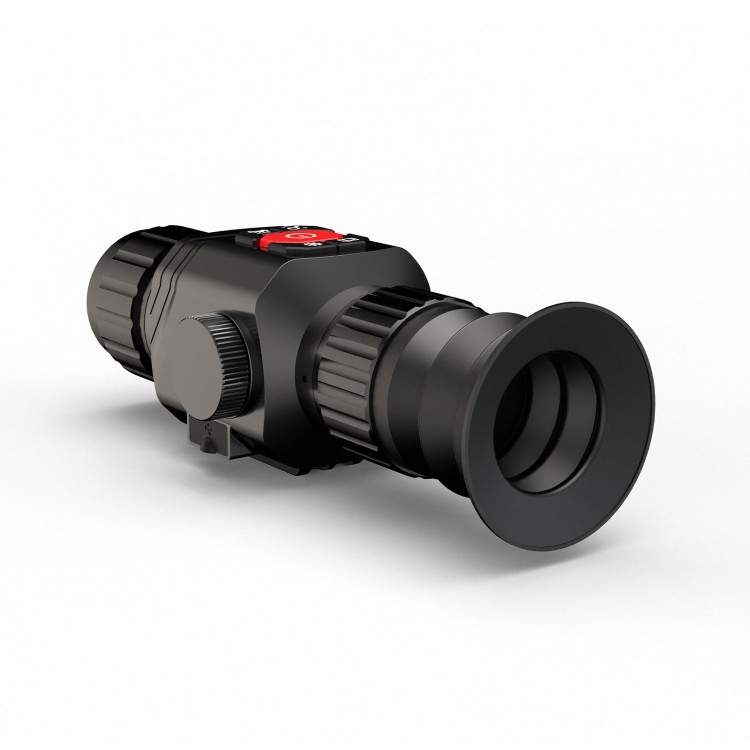

75mm Focal Length HT-C8 Outdoor Thermographic Telescope 1W 50Hz Support Hot Spot Tracking
Description:
- The HT-C8 outdoor thermal image telescope takes advanced uncooled focal plane infrared detector and high-quality optical lens as the core in combination with a convenient and fast operating system, compact shape design, fully functional expansion spare parts, long service life, ruggedness and durability, suitable for various environments. It has built an infrared thermal imaging tool with “clear imaging, simple operation and easiness to carry”.
- This product is used for field animal observation, search and rescue, police law enforcement and investigation, night patrol, outdoor sports, personal security, etc. This product functions as photo taking, and can browse photos taken through the USB connected computer, which is convenient for multiple people to observe at the same time and create possibilities for more applications.
Parameter:
- Type: uncooled focal plane
- Resolution: 384 x 288 infrared focal plane
- Pixel spacing: 17um
- Frame frequency: 50Hz
- Response wave band: 8um~14um
- Noise equivalent temperature difference: <40mk

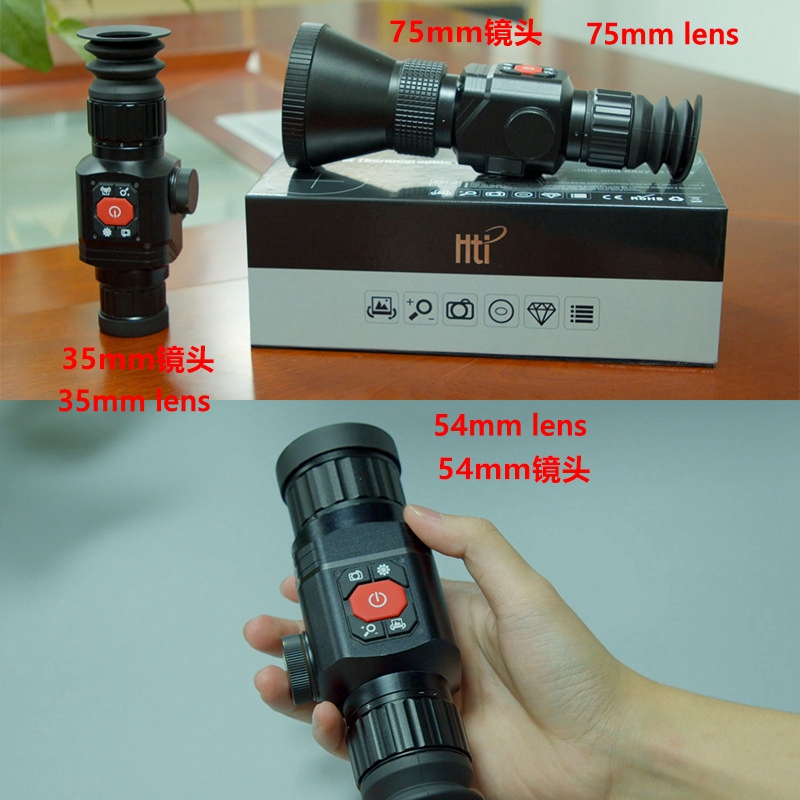

- Infrared lens focus: 25mm, 35mm, 54mm, 75mm
- Lens adjustment: Manual focusing and definition adjustment
- Infrared lens field angle: 14.9° x 11.2°; 10.7° x 8.0°; 6.9° x 5.2°；5.0° x 3.7°
- Image processing: Nonuniformity correction, image smoothing function, image detail enhancement, digital filtering and noise reduction.
- Image detail mode: 5-level image edge adjustment (0-4), or 5-level image detail adjustment (0-4).
- Display: OLED 0.5''1024 x 768
- Electronic amplification: 2X, 4X, 8X, 16X
- Brightness regulation: 10-level brightness regulation (0-9) performance indices
- Contrast regulation: 10-level contrast regulation (0-9)

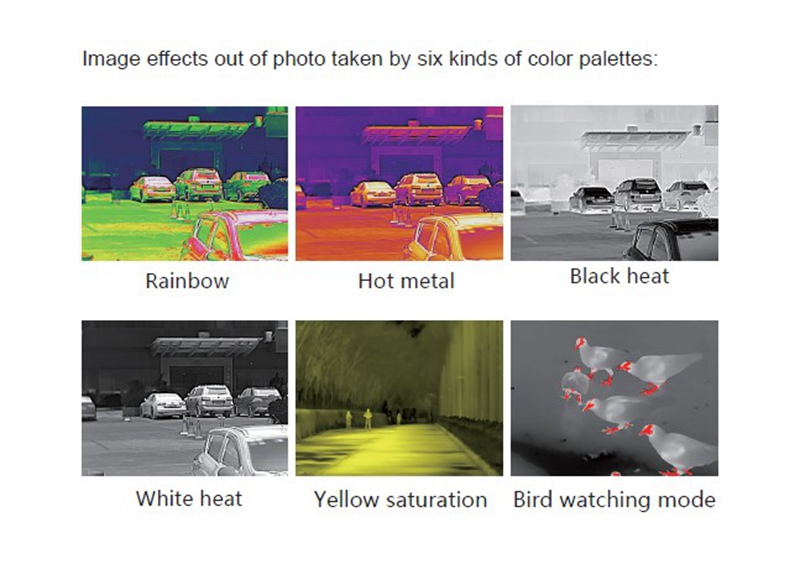

- Color palette: 6 categories of color palettes, rainbow, hot metal, white heat, black heat, yellow saturation, bird watching mode.
- USB: Type-C
- Working hours: 6 hours
- Automatic shutdown time: 40 minutes
- Weight: 500g
- Protection level: IP66
- Operating temperature: -10℃~50℃
- Storage temperature: -20℃~60℃
- Power consumption: 1w

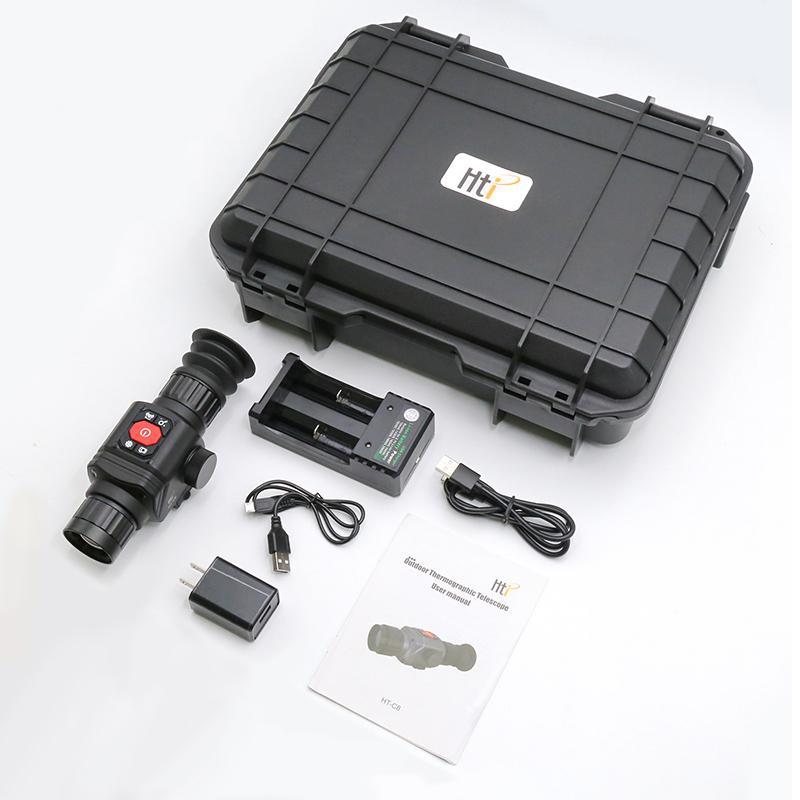

Package Included:
- 1 x 75mm outdoor thermographic telescope

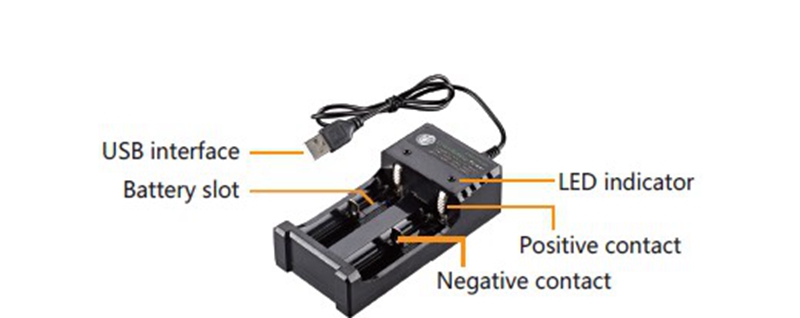

- 1 x battery charger
- 1 x manual
- 1 x USB (Type-C)
