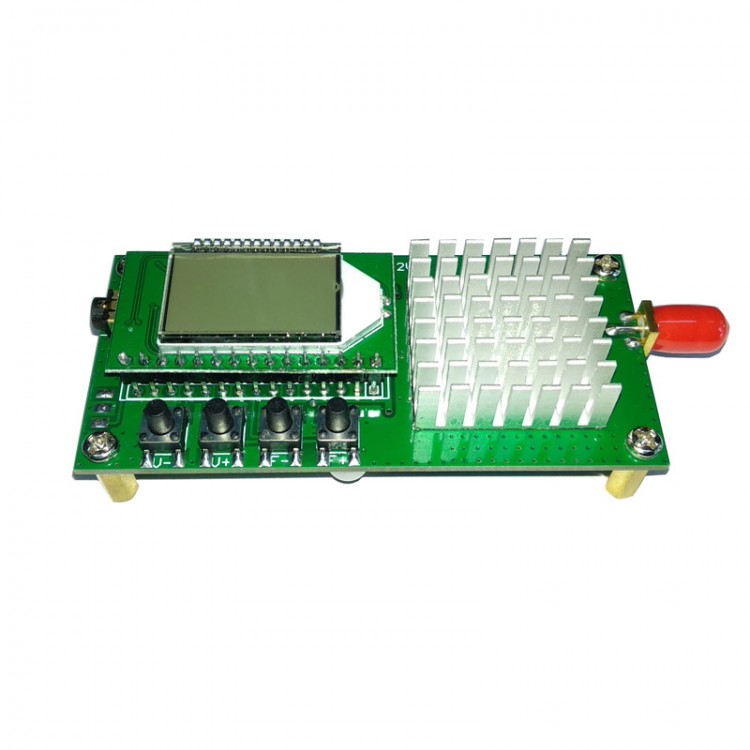

76-108MHz FM Transmitter Board 0-2W FM Broadcast Transmitter Boasts 2000M/6561.7FT Working Distance

Availability: In stock, usually dispatched in 1 business day

  • Price:$37.25
  • Price in reward points: 373 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $36.51 $35.76 $34.64 $33.15 Contact US
Quantity:
76-108MHz FM Transmitter Board 0-2W FM Broadcast Transmitter Boasts 2000M/6561.7FT Working Distance

Specifications:

- Item name: FM transmitter board
- Transmission frequency: 76-108MHZ
- Supply voltage: 12V
- Second harmonic: -40DB
- Output power: 0-2W (manually adjustable)
- Operating current: 0.4 to 0.45A (for 0-2W version)
- Board size: 8.5 x 4cm/3.3 x 1.6"
- Volume: 30 levels (adjustable)
- Audio input: 3.5MM headphone jack (plug in the headphone plug, the external audio source is automatically connected and the built-in MP3 audio source is disconnected; when the headphone plug is pulled out, it will automatically connect to the built-in MP3 audio source)
- Antenna interface: SMA female socket (need to purchase an antenna)
- Standing wave protection: none
- Transmit distance: depends on the height and gain of the antenna

MP3 Player (the following functions require remote control):
- Support WAV and MP3
- Automatically to play when power on
- Memorize volume and track when power-down
- Support 32K-320K rate
- Support SD card up to 32G
- EQ function, normal, rock, pop, classical, jazz, etc.

Antenna Selection:
The output power of the board is 2W, so the antenna cannot be a wire or a telescopic antenna. Use a standard transmitting antenna with a VSWR less than 1.5 (GP antenna is recommended due to its low price and easy application), because using a non-standard antenna may damage its power tube (the telescopic antenna and wire antenna have no VSWR). Even without damaging the power tube, the FM transmitter board's working distance will be shortened. Also, the higher the height of the antenna, the farther the working distance will be. In actual use, its transmission distance is affected by many factors, such as feeder length, antenna gain and use environment.

Package Included:
- 1 x FM Transmitter Board

Note:
- Remote control and other items mentioned above are not included.
