766MHz Processor ZYNQ7020 Development Board FPGA Development Board Onboard 0.96-inch OLED for Xilinx

Chip Parameters:
- Main chip: XC7Z010-CLG400-1 / XC7Z020-CLG400-2
- Processor model: dual core Cortex-A9
- Processor frequency: 666MHz (XC7Z010), 766MHz (XC7Z020)
- DDR3(PS): 512MByte, 16-bit wide, 1066M data rate
- Logical unit (LC): 28K (XC7Z010), 85K (XC7Z020)
- Lookup table (LUT): 17600 (XC7Z010), 53200 (XC7Z020)
- DSP unit multiplier: 80 (XC7Z010), 220 (XC7Z020)
- Trigger: 35200 (XC7Z010), 106400 (XC7Z020)
- RAM: 2.1MBit (XC7Z010), 4.9MBit (XC7Z020)
- Speed class: -1 (XC7Z010), -2 (XC7Z020)
- Temperature grade: consumer grade (XC7Z010), industrial grade (XC7Z020)

Development Board Parameters:
- Power supply mode: all TYPE-C ports can supply power. When running Linux alone, please use the DEBUG port for power supply to ensure the stability of the USB.
- Development board clock resources: 33.33M (PS), 50M (PL)
- Ethernet: Gigabit RTL8211E, one PS ETH0, one PL
- Debugger: onboard SMT2 programmer debugger, supporting all development of ARM and FPGA.
- Serial port: one PS CH340 serial port
- SD card: two PS TF card holders, SD0 support for boot (SD support up to 32G)
- HDMI-compatible interface: one HDMI-compatible output, maximum support 1080 at 60Hz.
- LED: 3 dual-color LEDs, a DONE signal indicator, a USB PHY power enable indicator
- Buttons: two PS buttons and one PL button, one reset button
- Start setting switch: a BOOT dial switch used to start setting
- Onboard OLED module: 0.96-inch 128x64 mono OLED, SPI interface, based on PL
- Onboard FLASH: PS FLASH, W25Q128FVSG, 128Mbit (16Mbytes)
- 40-Pins expansion IOs: including 34 single-end IO port, on PL BANK34, 3.3V standard; providing 5V/3.3V external power supply, equal length IO signal.
- System reset: one system reset (POR) button
- Development board indicator: DONE, USNCPEN, power input indicator
- Development board power supply system:
  Onboard inner-core power supply: 1.0V/6A
  Others: 1.8V/3A, 1.5V/3A, 3.3V/3A
  Expansion IO port 40P BANK34 VCCO voltage:3.3V

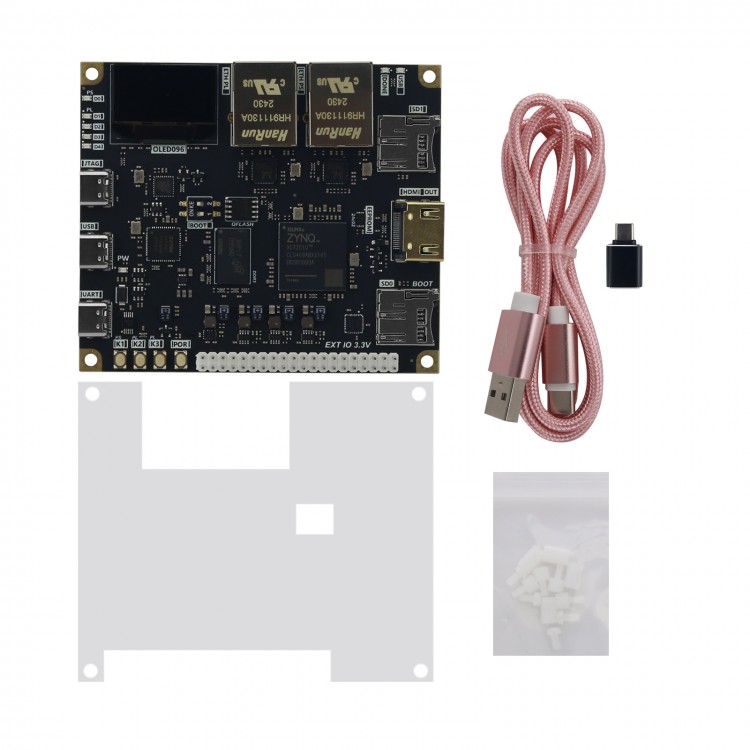

Package Included:
- 1 x Development Board
- 1 x Type-C Data Cable
- 4 x Pair of Nylon Screw Stud
- 1 x Acrylic Organic Glass
