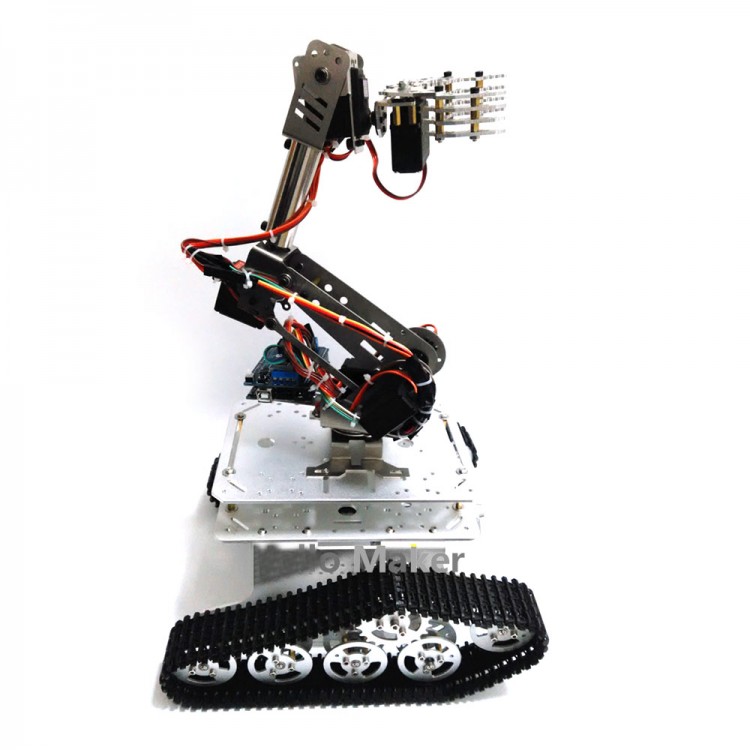

7DOF Mechanical Robot Arm Clamp Claw Mount + Car Tank Chassis + Servo + Controller Kit for Robotic Car

7DOF Mechanical Robot Arm Clamp Claw Mount + Car Tank Chassis + Servo + Controller Kit for Robotic Car

7DOF Mechanical Robotic Arm:
- Spare parts, not assembled
- 7 degree of freedom
- Aluminum alloy, CNC processing
- Steel bearing to fix  the bottom joint

Car Specification:
- Model: T300-M Car/ tank chassis
- Color: Silver
- Surface oxidation: Yes
- Car body:Aluminum alloy
- Wheel: Aluminum alloy
- Tracks: Plastic
- Product size: 270* 270 *150mm (length * width * height)
- Working voltage: 5~12V
- Tank chassis weight: 1.5kG
- Working carrying capaticy:7KG

Servo:
- Model: MG996R
- Net weight: 55g
- Size: 40.7*19.7*42.9mm
- Thrust: 9.4kg/cm (4.8V), 11kg/cm (6V)
- Reaction speed: 0.17sec/60degree (4.8V) 0.14sec/60degree (6V)
- Working voltage: 4.8-7.2V
- Operating temperature: 0 degrees -55
- Gear form: Metal Gear
- Working dead zone: 5us

2 channel motor+16 channel servo expansion board :
Specification:
- Power Supply: Motor Power(VM):4.5V-36V;
- Servo Power(VIN):5-18V;
- Single Power:Short VM and VIN,(Motor control only,6-18V);
- Short circuit VS and VIN, control servo only(6-18V);
- Short circuit  VM and VIN,and short circuit  VS and 5V. control (6-18V)and 16 channels 5V servos  .
- Motor drive current:≤1.2A;
- Power:4W(T=90 deg C)
- Control Signal input level:High level:2.3V≤VIH≤VIN;Low level:-0.3V≤VIL≤1.5V
- Operating Temperature:-25-125 deg C
- DriveType:Dual channel H-Bridge
- Weight: About 46g

Package List:
- 1 x Mechanical Robot Arm + Tank Chassis kit
- 7 x MG996R Servo
- 1 x XD-229 Arduino UNO R3 development board
- 1 x 2 channel motor+16 channel servo expansion board
