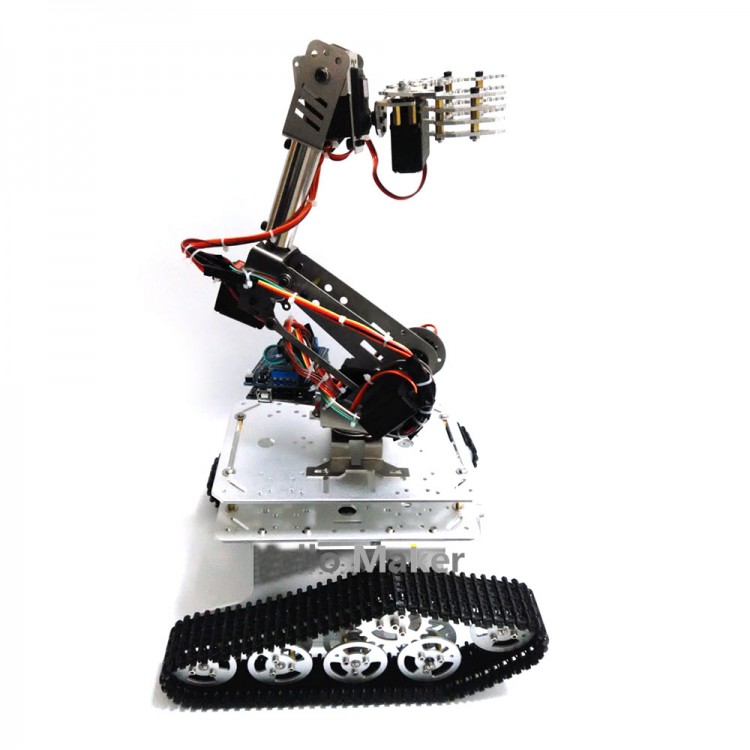

7DOF Mechanical Robot Arm Clamp Claw Mount + Car Tank Chassis + Servo +Controller Kit for Robotic Car

Availability: In stock, usually dispatched in 1 business day

  • Price:$287.68
  • Price in reward points: 2877 Reward Points: 29
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $281.93 $276.17 $267.54 $256.04 Contact US
Quantity:

7DOF Mechanical Robot Arm Clamp Claw Mount + Car Tank Chassis + Servo +Controller Kit for Robotic Car

7DOF Mechanical Robotic Arm:

- Spare parts, not assembled
- 7 degree of freedom
- Aluminum alloy, CNC processing
- Steel bearing to fix the bottom joint

Tank Car Specification:
- Model: T300-M
- Color: Silver
- Surface oxidation: Yes
- Car body:Aluminum alloy
- Wheel: Aluminum alloy
- Tracks: Plastic
- Product size: 270* 270 *150mm (length * width * height)
- Working voltage: 5~12V
- The tank whole weight: 1.5kG
- Working carrying capaticy:7KG

DS3218 servo:
- Mechanism limit angle: 180 deg
- Weight: 60g
- Wire: 28# PVC
- Wire length: 320mm
- Operating voltage: 5-7.4V
- Operating frequency: 50-330Hz
- Operating anglr: 180degree (500-2500u sec)
- Pulse width range: 500-2500u sec

2 channel motor+16 channel servo expansion board :
Specification:

- Power Supply: Motor Power(VM):4.5V-36V;
- Servo Power(VIN):5-18V;
- Single Power:Short VM and VIN,(Motor control only,6-18V);
- Short circuit VS and VIN, control servo only(6-18V);
- Short circuit  VM and VIN,and short circuit  VS and 5V. control (6-18V)and 16 channels 5V servos  .
- Motor drive current:≤1.2A;
- Power:4W(T=90 deg C)
- Control Signal input level:High level:2.3V≤VIH≤VIN;Low level:-0.3V≤VIL≤1.5V
- Operating Temperature:-25-125 deg C
- DriveType:Dual channel H-Bridge
- Weight: About 46g

Package List:
- 1 x Mechanical Robot Arm + Tank Chassis kit
- 7 x DS3218 Servo
- 1 x XD-229 Arduino UNO R3 development board
- 1 x 2 channel motor+16 channel servo expansion board
