• 7inch Display 5.8GHZ LCD5802 Monitor Double Antenna FPV Aerial Wireless Diversity Receiver

7inch Display 5.8GHZ LCD5802 Monitor Double Antenna FPV Aerial Wireless Diversity Receiver

Availability: In stock, usually dispatched in 1 business day

  • Price:$138.51
  • Price in reward points: 1385 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $135.74 $132.97 $128.81 $123.27 Contact US
Quantity:

7inch Display 5.8GHZ LCD5802 Monitor Double Antenna FPV Aerial Wireless Diversity Receiver

Specification:
- Built-in 5.8Ghz Dual diversity receiver automatically for best reception
- Built-in 2CH 5.8Ghz AV output and 1CH AV input
- Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
- Work status OSD display :RSSI indication ; Battery indicator;Channel indication
- A key to automatic signal search
- Support Chinese and English menu
- Size:180mm x 120mm x 50mm(Note:Sunshield height:28mm)
- Working Voltage:DC  7~16V
- Power Consumption:650 mA @12V
- Battery charging current: 850mA @12V ( max )
- Working temperature:-10degree~+ 65degree

Features:
- Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
-  Dual buffered AV outputs
-  Can receive 2 different channels at the same time
-  Not affect by 2.4GHz R/C Radios
-  AV Receiver with Diversity inputs
-  Small, light weight, durable
-  4 Bands and total 32 Channels
-  Built-in battery , easy to carry and outdoor use
-  A key to automatic signal search,Simple operation
-  Work status OSD display:Always be aware of the device working condition

Parameter:
- Screen type: TFT LCD Screen/long life, LED backlight
- Resolution: 800*480
- Brightness: 450cd/m2
- Visual angle: 140/120 degree (horizontal / vertical)

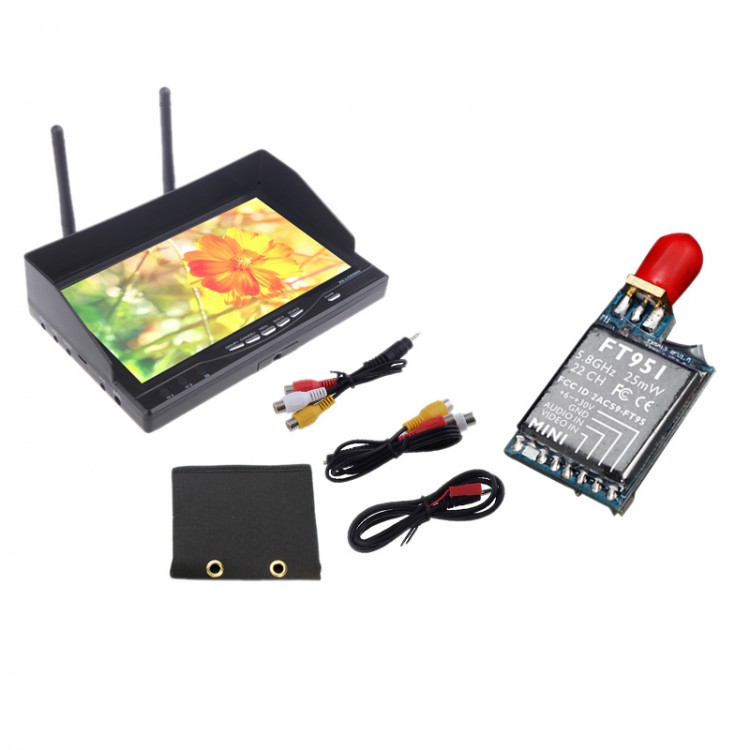

Package included:
- 1 x transmitter module
- 1 x  Gopro3 x cable
- 1 x DIY connected line
- 1 x  2dB x antenna
- 1 x instruction manual (English)
