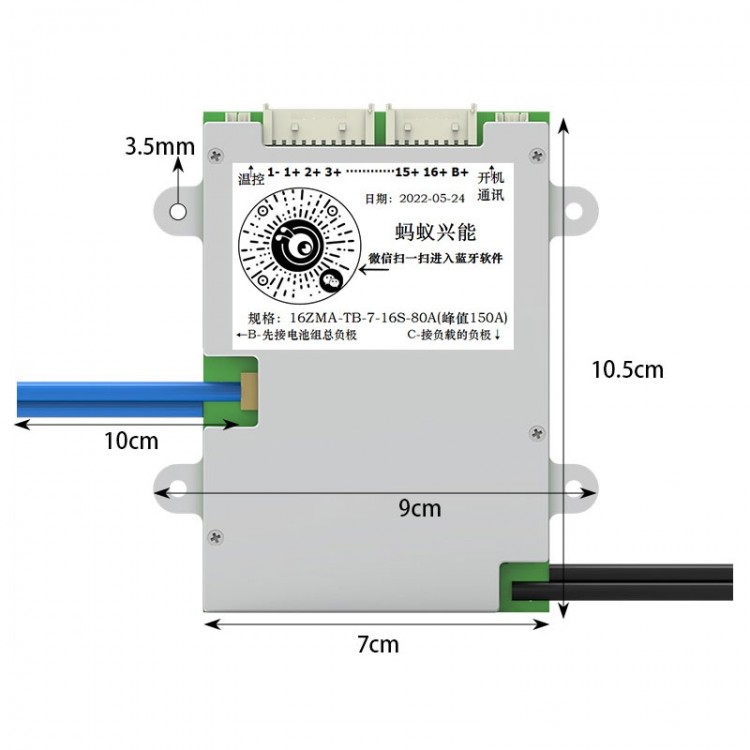

• 7S to 16S 80A (Peak 150A) BMS Lithium Battery Protection Board for Electric Vehicle Lithium Battery

7S to 16S 80A (Peak 150A) BMS Lithium Battery Protection Board for Electric Vehicle Lithium Battery

Availability: In stock, usually dispatched in 1 business day

  • Price:$48.62
  • Price in reward points: 486 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $47.65 $46.68 $45.22 $43.27 Contact US
Quantity:
7S to 16S 80A (Peak 150A) BMS Lithium Battery Protection Board for Electric Vehicle Lithium Battery

Version Introduction:

7S to 16S 80A: BMS continuous discharge current 80A and peak discharge 150A. LCD screen display is not included.

Description:
Newest version! It has an English APP for iPhone IOS and Android, and computer software. It is built-in Bluetooth type.

Attention:
- Newest BMS must use the newest APP or software! Old APP can't program newest BMS! Please contact us for the newest APP and other documents before using!
- And BMS also supports computer software (you need to buy a usb adapter separately).

Product Introduction:
- Balance current: 100MA
- Wiring method: common port
- Single cell voltage: detection range 1V-4.6V, accuracy less than 5Mv
- Overcharged and paid: protected
- Short circuit protection: short circuit protection current can be set
- Bluetooth connection: for Android hand sail
- Applicable battery: Lifepo4/LTO/Li-ion/Lipo
- Coulomb counter: accurate calculation based on current versus time
- Battery remaining capacity, error range is less than 5%
- Power consumption: 3MA at work
- 1.5MA during standby

Package Included:
- 1 x Lithium Battery Protection Board

Note:
- Batteries and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
