Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $127.28 | $124.68 | $120.79 | $115.59 | Contact US |
8.5GHz Bandpass Filter BPF with SMA Female Connector 50ohms Impedance High Quality RF Accessory
Bandpass Filter 2.7-3GHz:
- Model: RFBP-27G
- Measuring range: 0 - 6GHz
- Pass band: 2.6 - 2.9GHz
- Stop band: DC-2.2GHz, 3.3 - 6GHz
- Impedance: 50ohms
Bandpass Filter 3.3GHz:
- Model: RFBP-33G
- Measuring range: 0 - 6GHz
- Pass band: 3.2 - 3.4GHz
- Stop band: DC-2.7GHz, 3.9 - 6GHz
- Impedance: 50ohms
Bandpass Filter 4GHz:
- Model: RFBP4GHz
- Measuring range: 0 - 6GHz
- Pass band: 3.8 - 4.2GHz
- Stop band: 0-3GHz & 5-6GHz
- Impedance: 50ohms
- Power: > 50W
Bandpass Filter 4.5GHz:
- Model: RFBP4.5GHz
- Measuring range: 0 - 6GHz
- Pass band: 4.45 - 4.55GHz
- Stop band: 0-3.9GHz & 5.2-6GHz
- Impedance: 50ohms
- Power: > 50W
Bandpass Filter 2.4GHz:
- Model: RFBP-24G
- Measuring range: 0 - 6GHz
- Pass band: 2.35 - 2.55GHz
- Stop band: DC-1.9GHz, 2.8 - 6GHz
- Impedance: 50ohms
Bandpass Filter 3.5GHz:
- Model: RFBP-35G
- Measuring range: 0 - 6GHz
- Pass band: 3.4 - 3.6GHz
- Stop band: DC-2.8GHz, 4.0 - 6GHz
- Impedance: 50ohms
Low Pass Filter 2.4GHz:
- Model: RFLP-24G
- Measuring range: 0 - 6GHz
- Pass band: DC-2.4GHz
- Stop band: 3.0 - 6GHz
- Impedance: 50ohms
High Pass Filter 3GHz:
- Model: RFHP-30G
- Measuring range: 0 - 6GHz
- Pass band: 3 - 6GHz
- Stop band: DC-2.5GHz
- Impedance: 50ohms

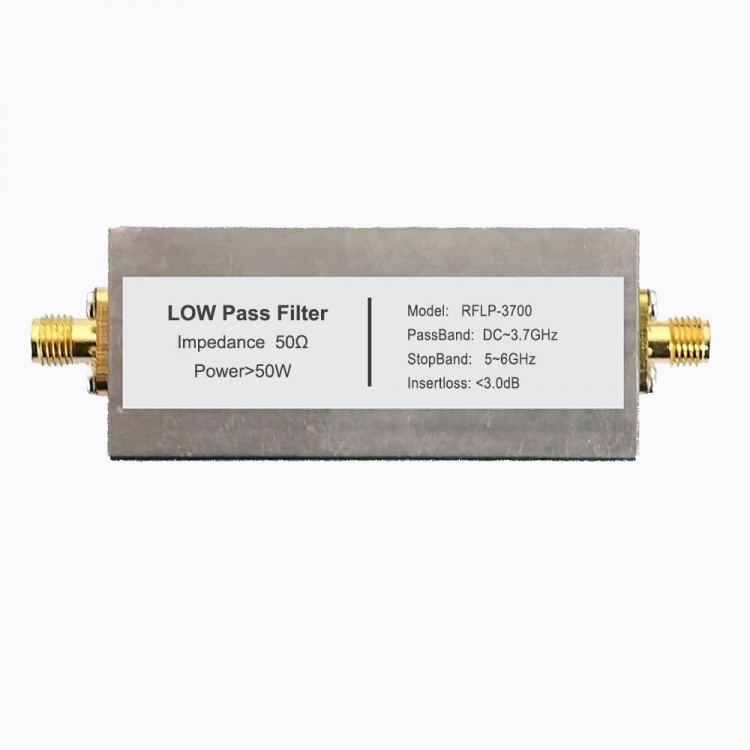

Low Pass Filter 3.7GHz:
- Model: RFLP-3700
- Measuring range: 0 - 6GHz
- Pass band: DC-3.7GHz
- Stop band: 5 - 6GHz
- Impedance: 50ohms
- Power: > 50W
- Insertloss: < 3.0dB
Low Pass Filter 3GHz:
- Model: RFLP3GHz
- Measuring range: 0 - 6GHz
- Pass band: 0 - 3GHz
- Stop band: 3.5 - 6GHz
- Impedance: 50ohms
Bandpass Filter 2.85-3GHz:
- Model: RFBP-2.85/3
- Measuring range: 0 - 6GHz
- Pass band: 2.85 - 3GHz
- Stop band: DC-2.35/3.3-6GHz
- Impedance: 50ohms
- Power: > 50W
Bandpass Filter 3.65-3.75GHz:
- Model: RFBP-3.65/3.75
- Measuring range: 0 - 6GHz
- Pass band: 3.65 - 3.75GHz
- Stop band: DC-3.3/4.0-6GHz
- Insertloss: < 3.0dB
- Impedance: 50ohms
- Power: > 50W
High Pass Filter 700MHz:
- Measuring range: 0 - 6GHz
- Details are not immediately available.
Bandpass Filter 4.9GHz:
- Measuring range: 0 - 6GHz
- Details are not immediately available.
Bandpass Filter 3.4GHz:
- Model: RFBP3.4GHz
- Measuring range: 0 - 6GHz
- Pass band: 3.35 - 3.45GHz
- Stop band: 0-3GHz & 3.8-6GHz
- Impedance: 50ohms
- Power: > 50W
Bandpass Filter 5.8GHz:
- Model: RFBP5.8GHz
- Measuring range: 0 - 10GHz
- Pass band: 0-5.6 & 6-8GHz
- Stop Band: 5.8GHz
- Impedance: 50ohms
- Power: > 50W
Bandpass Filter 8.5GHz:
- Measuring range: 0 - 12GHz
- Details are not immediately available.
Bandpass Filter 10GHz:
- Measuring range: 0 - 15GHz
- Details are not immediately available.
Bandpass Filter 5-6GHz:
- Measuring range: 0 - 10GHz
- Details are not immediately available.
Bandpass Filter 9-10GHz:
- Measuring range: 0 - 15GHz
- Details are not immediately available.
Package Included:
- 1 x Filter Module
