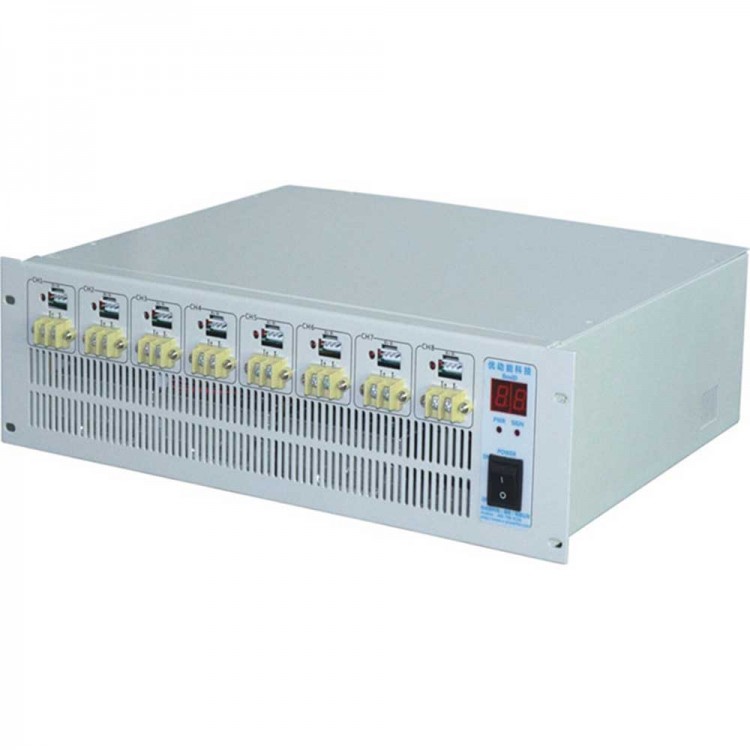

8 Channel Battery Capacity Cabinet 5V 20A Lithium 18650 Polymer Capacity Tester Cycle Test
Description:
- 8 channel
- Advanced channel independent function
- Three working mode:charging (constant voltage and current),supend,discharging
- Four wire system test method
- Constant current to constant voltage switching,no impact
- Controlled by computer, secure and reliable
- Smart power off protection, never lost the data
Software function:
- Windows-style interface, powerful function and Easy to operate
- Display the battery tesing information, current,voltage,capacity,time and state,etc.
- Can interrupt operation freely and continue automatically when restarting
- Different color helps you to distinguish the working state,it is apparent to see the channels. Also the shortcut control interface is available
- Sampling interval is adjustable, 1-900s
- Cycle times 1-999
- User can stop the current performed process and to the specified procedure
- The test will record many information, like current, voltage,,capacity,time and energy,etc.
- Check the data and curves at any time when working
- Save the test process information and can retrieval
- Each channel data will make the independent file and save in a specified path to check them later
- Can convert format into Excel.
Parameters:
- Input power: 220V/ 50Hz-+10%
- Power consumption: 150W 8CH, 300W 8CH
- Current output: -+20A
- Voltage: 0-5V
- Power: 800W
- Input impedance: >=10MOhm
- Current control accuracy: -+(0.1%RD+0.1%FD)
- Voltage control accuracy: -+(0.1%RD+0.1%FD)
- Current setting reolution: 1mA
- Voltage setting resolution: 1mV
- Time testing resolution:1s
- Interface: RS232/RS485
- Voltage stability when constant charging: 0.1%
- Occasion: Indoor
- Working temperature: 5-45 deg C
- Relative temperature: 20-80%
Software running environment:
- PC :IntelP4 2GHz above version
- Memory: >1GB
- Free hard disk space: >80GB
- OS: Windows 2000 above version
- One available RS232 or 4*USB2.0 seriel communication port at least
Package list:
- 1 x 8 Channel Battery Capacity Cabinet
