| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $70.55 | $69.11 | $66.95 | $64.07 | Contact US |
Feature :
- 8 output/8 input
- 8 input can be configured by webpage (PC or Cellphone);
- 8 output can be controlled by 8 input
- Support RS485 port
- Support DC 12V/15~60V
Description:
- TCP interface, control switch through local area and remote network
- 8 channel relay outputs under the open/close condition at all times
- 8 channel configurable inputs which can report the input state
- Extract RS485 interface. Users can extend device conveniently.
- Double net gapes and support LAN and WAN
- Support the password vertification and realize the safety control of the device
- Each relay access has 6 accesses switch function at certain times.
- Input light-coupled isolation and isolate the interference of the outside
- Output the latch and prevent the relay from the interference
- The controlled software supports 5 platform: Windows, IOS, Android, Webpage, you can choose freely
- Restore the factory setting and return to the original state
Parameter:
- Dimension:190x118x23mm(L*W*H)
- Working Voltage:DC 12V/15~60V
- Power Consumption
12V: Max 7W
15~60V: MAX 8W
- Operating Temperature:-40~85°C
- Storage Environment:Temperature：-40~85°C
- Humidity:5%~95%RH
- Relay Voltage
10A 277VAC/28VDC
12A 125VAC
Package:

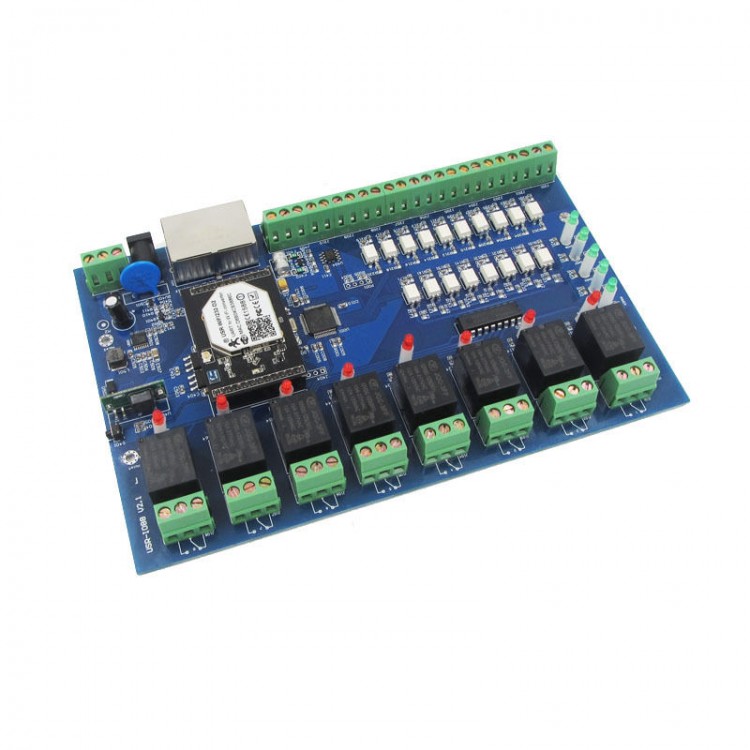

- 1 x 8CH WIFI wireless ethernet relay Card
- 1 x Power Adapter
- 1 x Network Cable
