8 in 8 out 10A Network Relay Controller Net Switch Support TCP UDP Control
Features:
- Support network connection encryption authentication
- Power supply part adopts LM2596S switch power supply
- 8 channel relay outputs control, 10A
- 8 digital inputs detection, support for passive dry contact (also supports active 5-12V DC switching inputs), With active trigger switch reporting functions.
- Standard 9V or 12VDC power supply (default 12v) , can be round hole or terminals type. (Leave message when ordering)
- Supports a variety of control modes. Supports digital input trigger relay switches, remote real-time control, timing control mode

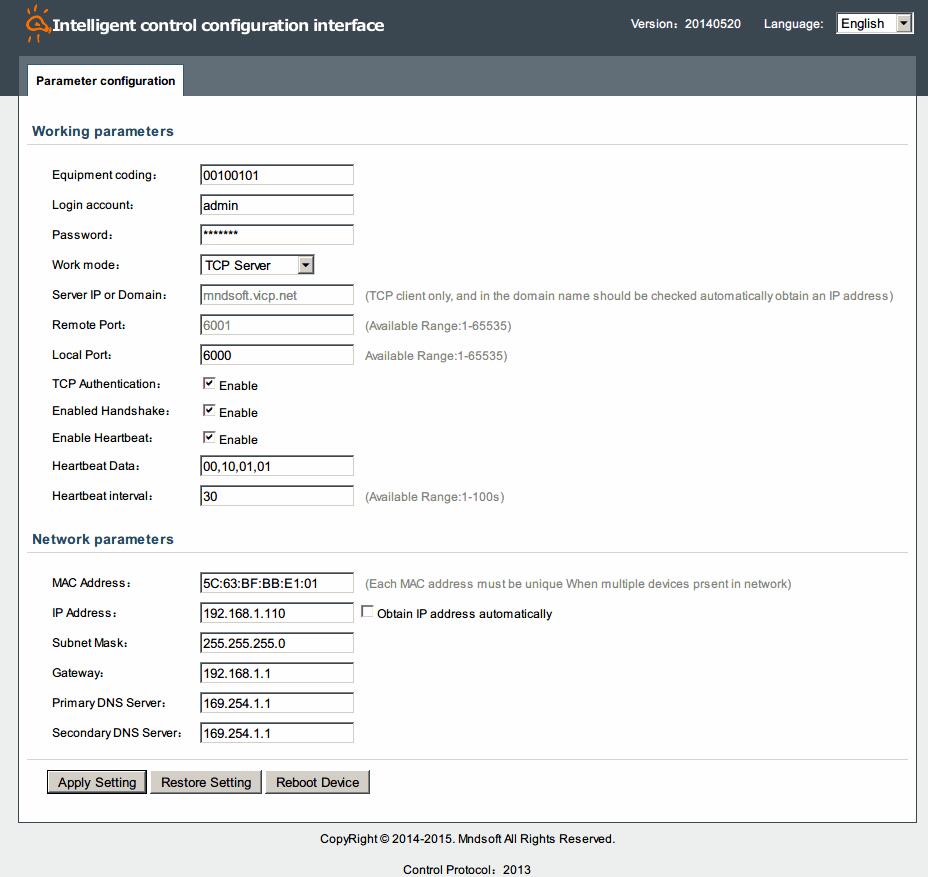

- Easy to configure. Each channel can be configured among three modes.
- Trigger delay can be configured. 1-99 seconds.
- Auto power off memory. automatically save the last switch state when disconnected, restore after power on.
- Single or multiple jog control. Time delay control single channel or multi-channel at the same time.
- Support Android phone software WIFI control
Package List:
- 1 x Relay control box
- 1 x Power adapter
- 1 x RJ45 network cable 1.2 m
