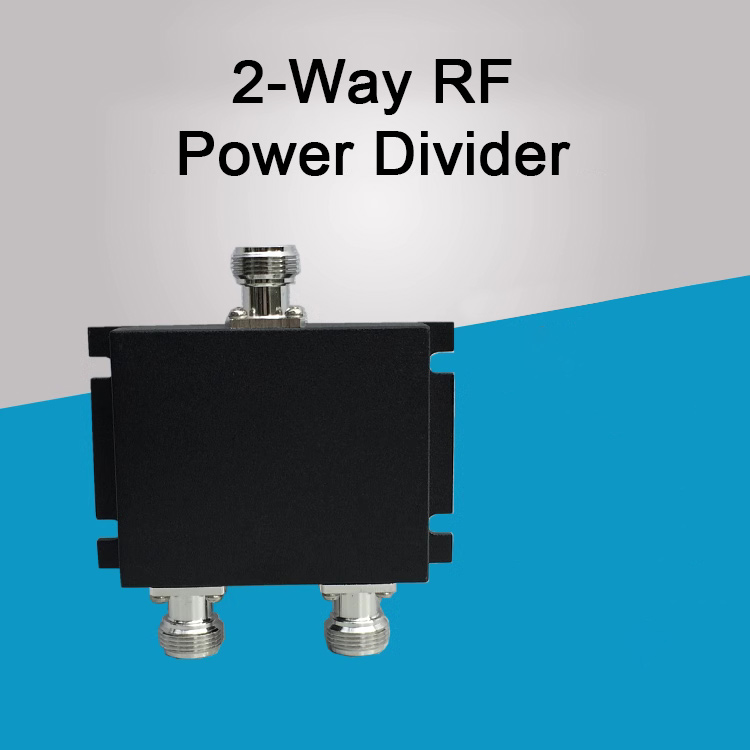

800-2500MHz 2-Way Microstrip Power Divider RF Power Splitter Designed with N-Female Connectors
Features:
- 50W 2-way microstrip power divider
- Designed with N-female connectors
- Quality materials: Copper (connector) and aluminum alloy (cavity)
- Uses: Indoor distribution system, repeater, communication engineering coverage, system network splitting and merging
Specifications:
- Frequency Range: 800-2500MHz
- Split Loss: 3.0 dB
- Insertion Loss: ≤ 0.5 dB
- Max. VSWR: 1.25
- Isolation: ≥ 20 dB
- Impedance: 50Ω
- RF Connector: N-F
- Average Power: 50W
- Temperature: -20 to +70 ℃
- Product Size: 96 x 88 x 21mm/3.8 x 3.5 x 0.8"
Package Included:
- 1 x RF Power Divider
