800TVL Industrial Microscope Color CCD Camera AV BNC Output + 100X C-Mount Zoom Lens
Specifications of Lens:
- C mout lens
- The optical magnification 0.12X-2X (about 8X-100X in 21-inch monitor)
- Working distance: 55mm-200mm
- FOV: 2.4mm-32mm
- Size: 115mm (L) × 40mm (diameter)
- Weight: 210g
Specifications of Industrial Camera:
- Resolution: 800TVL
- Sensor Type: 1/3 "CCD color (Sony)
- Resolution: 800 * 600 (1024 * 768)
- Output: AV / BNC
- Color: Color
- Frame rate: 60 frames / sec.
- White Balance: Auto
- Pixel size of 2.8μm * 2.8μm
- 10bit
- Scan mode: progressive scan
- Shutter Type: Electronic shutter
- Dynamic Range:> 60dB
- Exposure time: 54μs-540ms, automatic exposure
- Power: DC12V1A
- Operating temperature: -10- 60 deg C
- Interface: standard C mount interface
- Lens: Iris manual focus lens (sold separately optional)
- Support System: Monitor with AV BNC interface

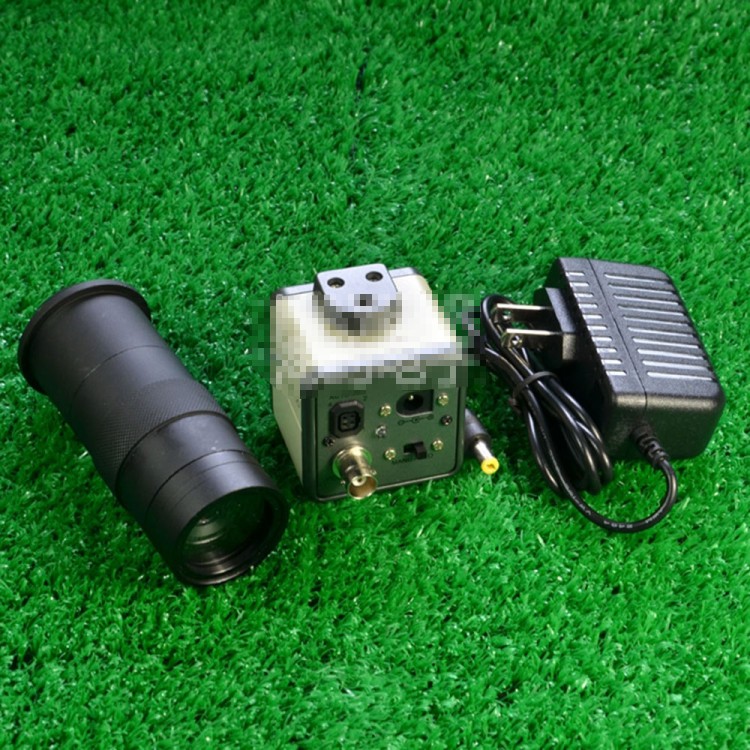

Package Included:
- 800TVL Industrial CCD Camera * 1
- 100X Microscope Lens * 1
- Adapter * 1
