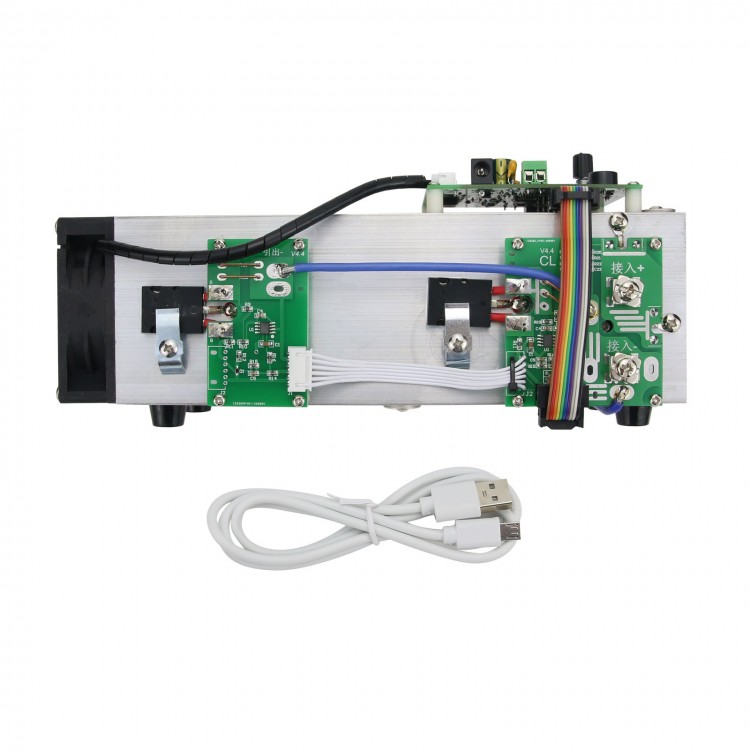

800W High-power Electronic Load Battery Discharger Compatible With 600W 500W 400W TEC-80K
Description:
-This load is an adjustable constant current linear load. Users can set the discharge current according to their own needs.
-It can be used for battery capacity detection, power aging, etc.
-This load can be used independently, or it used via host computer control, and the discharge curve can be drawn by the host computer.
-The host control is Modbus bus control, each bus can control up to 99 loads.
Specification:
Maximum power: 800W
Input voltage range: 0.8V~100V, measurement error <0.3%
Turn-off voltage adjustment step: 0.01V below 2V; 0.05V between 2V~5V; 0.1V between 5V~20V; 0.5V above 20V
Current adjustment range: 2~45A (800W), control error <0.3%;
Current adjustment solution step: below 2A adjustment step size is 0.1A; above 10A adjustment step size is 0.5A
Maximum error of capacity detection: 0.5%.
Power supply: 12V/2A or above 2A, interface 5.5/2.1mm.
Technical Features:
-The maximum withstand voltage is 100V, the power is 800W, and high power can be customized according to user needs.
-There is a voltage sampling terminal, which can be connected with 4 lines to avoid errors caused by line loss.
-It can work independently from the computer, or it can be controlled by the computer.
-With 3 data interfaces: USB, TTL (5V), RS485 (Modbus).
-Modbus (RTU) industrial bus adopts RS485 interface, which can realize the networking of up to 99 devices.
-Intelligent power limitation, with over-temperature protection and anti-reverse protection.
-Intelligent speed control fan, silent start, the higher the temperature the faster the speed.
-It has multiple protection functions, including anti-reverse protection, over-temperature protection, maximum power limit, and under-voltage protection.
-Data storage function when power-down.
-After the measurement, the music alarm, 3 music options: Beethoven Symphony No. 9/Are you sleeping/Kamata March, can also set mute.
Package List:
1 x Battery Discharger
