800W Pure Sinewave Inverter Motherboard 12V/24V/48V to 220V Vehicle High Power Outdoor Power Converter

800W Pure Sinewave Inverter Motherboard 12V/24V/48V to 220V Vehicle High Power Outdoor Power Converter

Features:
- Made of high-quality materials for durability. F-type aluminum alloy heat sink for faster heat dissipation, coupled with a ball fan for fast heat dissipation and maintaining excellent working temperature. High quality large capacitor rectification and filtering can better stabilize the output voltage and resist pulse interference. The large insurance is easy to replace and can easily cope with various threats such as short circuits, water damage, lightning flashes, and other harsh environments.
- Widely applicable, can be used for various electrical equipment, long-distance trucks/cars, outdoor camping, home/company, outdoor/factory construction.
- Low battery power consumption, longer working time, continuous output.

Specification:
Output Parameter:
- Model: EE800W
- Rated power: 800W
- AC voltage: 220V (110V is optional, which need extra payment)
- Waveform: pure sinewave
- THD: ≤5%
- Frequency: 50Hz (60Hz for 110V version)
- Frequency range: ±0.5
- Continuous output power: 800W (resistive load)
- Peak power: 1600W
- Efficiency: ≥87% above

Input Parameter:
- Battery voltage: 12V
- Voltage range: 9.5V - 15.5V (can be fine tuned according to requirements)
- Power-off mode static current: ≤30uA
- Positive and negative wiring: tighten and fix the screws
- Battery type: 12V (3S ternary lithium battery)
- Battery low voltage alarming: 9.5V
- Battery low voltage protection: 9V (off)
- Battery high voltage protection: 16V (off)

Others:
- High temperature protection: >70℃, output-off
- Heat dissipation method: intelligent fan, automatic start for 45℃ above
- Output short-circuit: light short-circuit automatically recovers, and the output is turned off when the long short-circuits exceed 3 seconds.
- Working temperature: -20℃ ~ 40℃
- Working humidity: 10% ~ 90%RH
- Storage temperature: -40℃ ~ 60℃
- Storage humidity: 10% ~ 95%RH
- Using altitude: ≤3000m (exceeding 1000 meters, reduce usage)

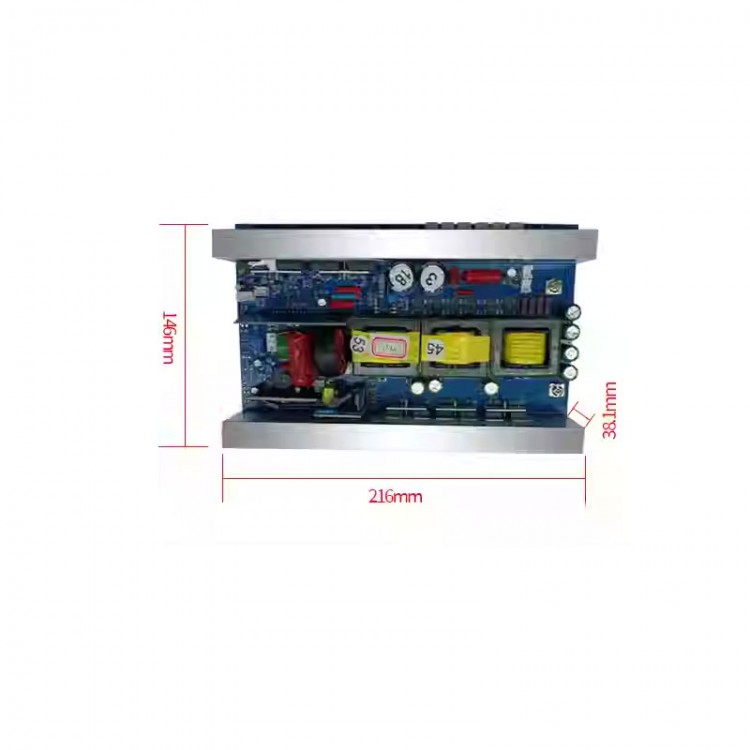

- Size: 216 x 146 x 38.1mm
- Net weight: 0.9kg

Package Included:
- 1 x Inverter Motherboard

Troubleshooting:
1. Inverter not working.
A. Check if the plug is properly inserted and if it is loose.
B. Make sure the inverter switch is turned on.
C. Is there any voltage output from the car cigarette lighter socket (such as external leads and correct polarity)?

2. The inverter output power is insufficient and can only drive low-power appliances.
A. The battery capacity is too small (requiring replacement or reduction of electrical appliances).
B. The voltage is too low (requiring charging or replacement).
C. If it is used in another car and the inverter is normal, it is necessary to go to a professional repair shop to thicken the car cigarette lighter socket lead (the load of the cigarette lighter socket should not exceed 150W).
D. If an external battery is connected (thicker lead and shorter lead length are required).

3. The inverter does not work and the FALT light goes out.
A. Using electrical appliances with power exceeding the nominal power may cause protection (you need to reduce the power of electrical appliances).
B. Battery voltage is too low (charging or replacing the battery is required).
C. Reduce the power of electrical appliances.

4. High shell temperature.
A. Normal phenomenon within 65℃ (with built-in temperature protection).
