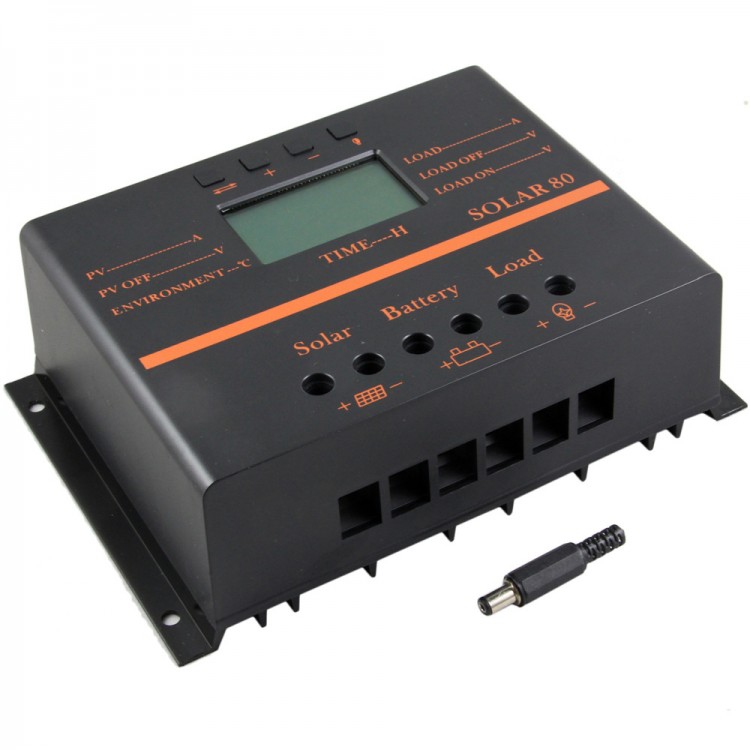

80A Solar80 Solar Regulator Charge Controller with LCD Display 5V Mobile Charger

80A Solar80 Solar Regulator Charge Controller with LCD Display 5V Mobile Charger

NOTE:Optional USB 5V charging (500mA，Not suitable Apple iphone 5 5G)

- 80A Solar Panel Charge Controller Regulator Solar panel 960W/12V 1920W/24V
- Compatible with 1920W(24v) solar panel with dark activated function,
- Max current is 80A
- 80A Solar Panel Charge Controller 12V/24V + LCD display
- Compatible with MAX 1920W Solar Panel 12V/24V Auto Switch;
- Timer Intigrated (Lighting function)
- SOLAR80 Series controller has the following features:
- Solar LCD series a kind of intelligent,
- multipurpose solar charge and discharge controller


1, LCD screen display
2, Easy operation interface
3, PWM charging mode
4, Parameter user can reset,
5, A key to open and close the load,
6, A key to restore the factory settings,
7, Battery reverse discharge protection,
8, Battery reverse polarity protection
9, Battery under voltage protection,
10, Overload, short-circuit protection,
11, Automatic temperature compensation function,
12, USB 5V charging (for 500mA) for mobile phone.


SOLAR80 Datasheet:
- Output Voltage: 12V/24V Automatically distinguish voltage
- Rated working current :≤80A
- Solar panels voltage:≤48V
- Full Charge Cut : 13.8V/27.6V
- Low Voltage Cut :10.7V/21.4V
- Temp ompensation: -4mv/℃/cell
- Zero Load Loses: ≤25mA
- Low voltage recovery(settable): 12.5V/25.0V
- Loop pressure drop: ≤160mV
- Installable maximum cable: (25mm2)
- Working temperature: -10℃~60℃
- Storage temperature: -30℃~70℃
- Temperature requirement: ≤90％,no condensation
- Dimension: 90 mm×188 mm×48 mm
- Mounting hole spacing: 60 mm×178 mm --Φ5
- Weight: ≤1000g

Package Included:
1. 1X 80A PWM solar charge controller
2. 1X User's Manual
3. 1X Temp. Sensor
