Specifications:
- Input power: 1-5W
- Transmitting frequency: 400-470MHZ
- Receiving frequency: 50-1000MHz
- Working mode: half duplex (not acceptable under transmit status)
- Receiver loss: -1DB + 0.4
- Output power: 18-85W
- Supply voltage: 10-13.8V
- Standby current: about 10-30mA
- Heat dissipation mode: 40 degrees temperature control,air cooling
- Minimum size: 152x106x55mm
- 80W hand power amplifier,power amplifier and intercom ordinary moments after cars in Taiwan,this product with automatic transceiver circuit,suitable for all U interphone on the market,can be the perfect support for DMR,DPMR,P25 digital and traditional linear simulation model.
Note:Antenna SWR will directly affect the output power, you must use SWR less than 1.5 to withstand the power of more than 100W antenna. Our power test using the standard 50 ohm load and SWR meter for the measured.
Working frequency, current correspondence table
Frequency | Current | Power |
410.000 | 14.3A | 74W |
420.000 | 15.4A | 80W |
430.000 | 14.2A | 76W |
440.000 | 17.6A | 85W |
450.000 | 19.2A | 85W |
460.000 | 19A | 80W |
470.000 | 16.7A | 63W |

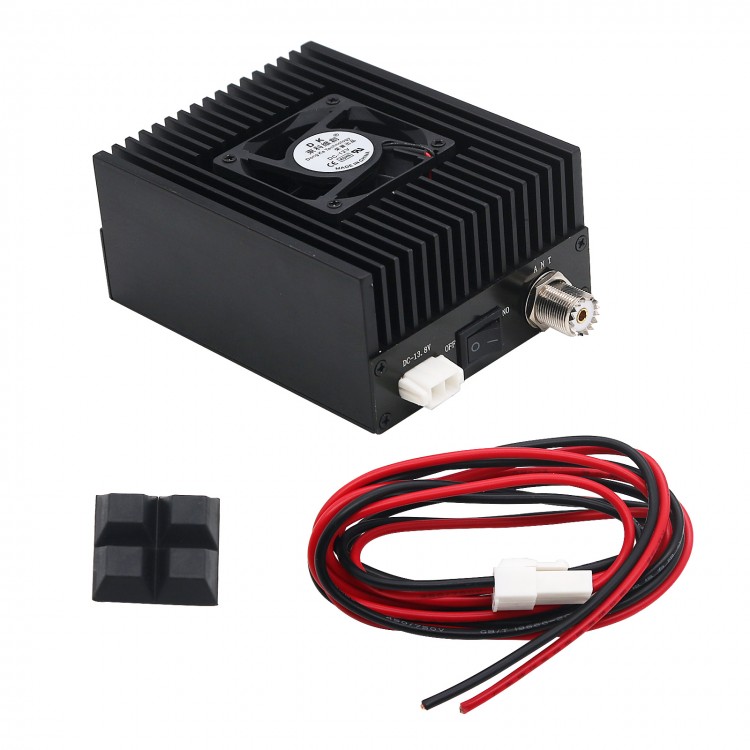

Package List:
- 1 x 80W AMP 410-470MHZ
- 1 x Power cable
