80x80mm X-Axis Manual Linear Stage Micrometer Linear Stage Accurate Position SEMX80-AC
Features:
- 100% brand new and high quality
- Durability: Made of aluminium alloy material with black anodized surface
- Single Axis: X for linear guide sliding track
- Accuracy: Precision machining and stable performance
- Application: Widely used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement, etc.

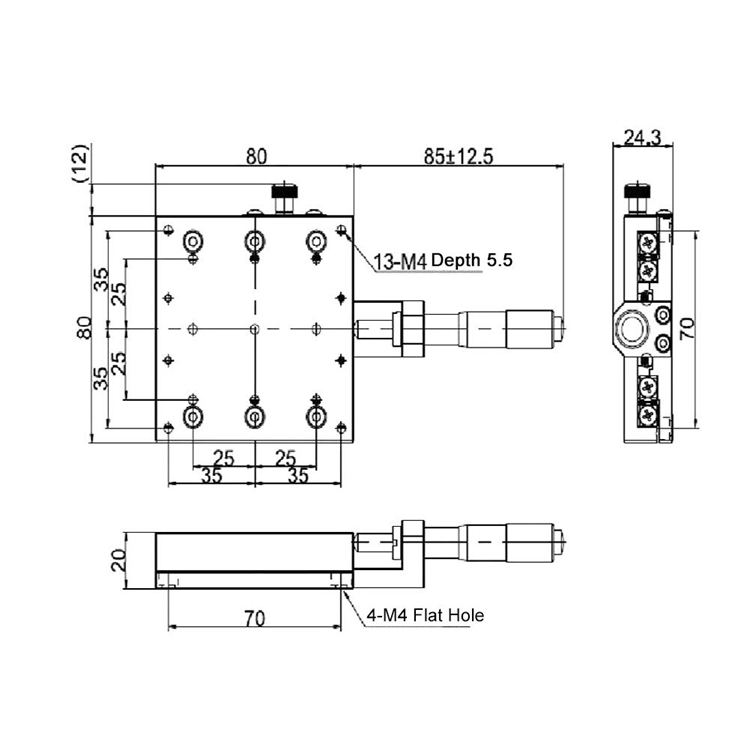

Specifications:
- Model: SEMX80-AC
- Micrometer Accuracy: 0.01mm
- Table Size: 80 x 80mm
- Type of Guide Rail: Crossed-Roller Bearing
- Axis: For X Axis
- Load Capacity: 98.0N
- Material: Aluminium Alloy(Black Anodized Surface)
- Length of Travel: ±12.5mm
- Parallelism: 30μm
- Mobile Parallelism: 10μm
- Straightness: 3μm
- Vertical Run-out: 25''
- Horizontal Run-out: 15''
- Weight: 0.45kg
Package Included:
- 1 x Linear Stage
