8120 100KV Brushless Motor Multirotor for FPV Drone Quadcopter TL81P20
Description:
- HIgh voltage motor, suitable for hexacopter, quadcopter, octocaopter, drones, etc.
- Suitable for propeller 26-34"
- Light weight and high efficiency.
Parameters:
- Item No: 8120
- KV: 100
- Stator : 36N
- Motor pole number: 40P
- Shaft diameter: 20mm

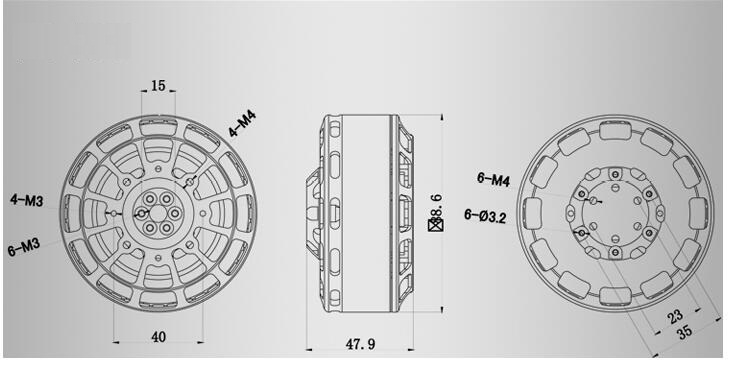

- Motor size: diameter 88.6*47.9mm
- Weight: 556G
- No load current (A) @10v:0.87
- Battery number: 12s
- Maximum continuous current (A): 66.45
- Maximum continuous power (W): 2782.4
- Resistance: 215mOhm
- Motor mounting hole distance: Diameter 40mm
Product includes:

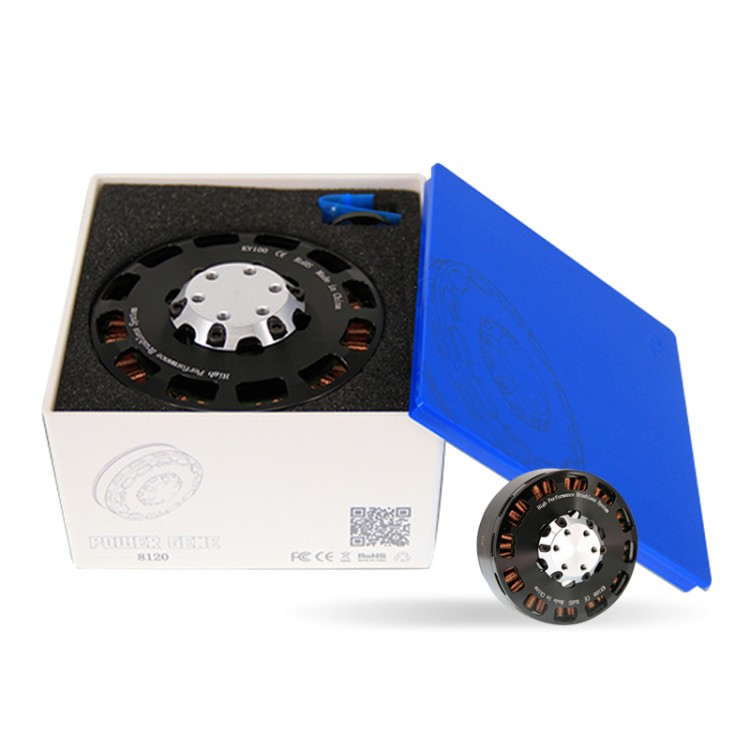

- 8210/100kv brushless motor x 1
- Metal clamp gasket * 1
- M4*35 cup head screws * 6
