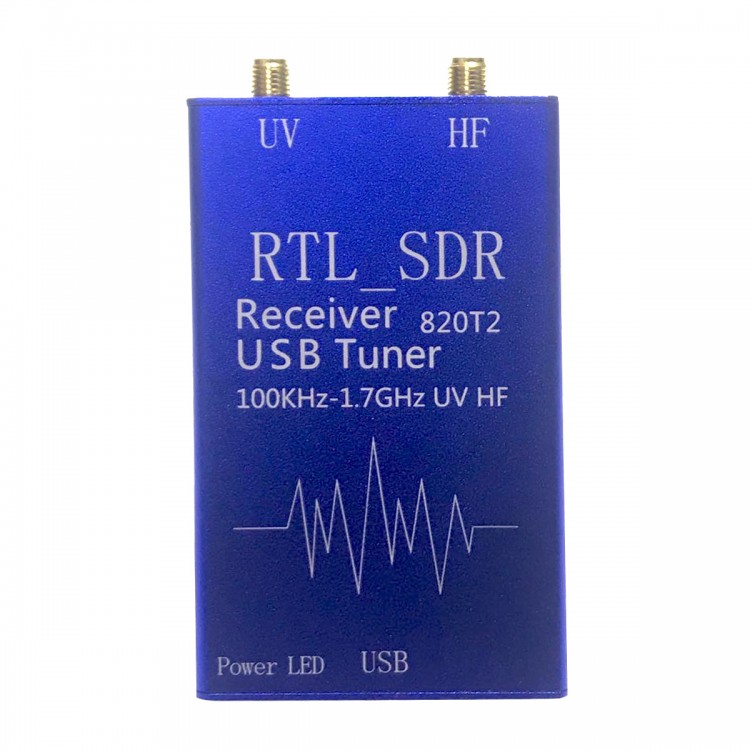

820T2 For RTL SDR Receiver USB Tuner 100KHz-1.7GHz UV HF RTL2832U + R820T2 For Radio Communications
Description:
This receiver is now upgraded to adopt the latest RTL2832U+R820T2 solution, using the Q channel on the RTL2832U to increase the direct reception of frequency 100KHz-24MHz. Achieve full range receiving of 100KHz-1.7GHz.
R820T2 tuner has slightly better sensitivity than that of R820T, lower noise floor and higher SNR. It can work more stably at frequencies around 1.5 GHz. It enables connections for computers, Android phones and other devices to use SDR software to receive electromagnetic waves of 100KHz-1.7GHz. Support AM, FM (NFM, WFM), CW, DSB, LSB, USB demodulation. You can listen to short-wave single-sideband communications, FM radio, walkie-talkie calls, aviation bands, etc.
Analog subtone and digital subtone can be cracked through software. You can set up automatic search and scan. You can use software to crack the ID of commonly used digital walkie-talkies and demodulate voice signal.
Features:
- It is assembled and ready to use
- Use RTL2832U+R820T2 chipset
- R820T2 tuner has slightly better sensitivity than that of R820T, lower noise floor and higher SNR. It can work more stably at frequencies around 1.5 GHz.
- 100KHz-1766MHz, working frequency range.
- Covers all short-wave amateur bands.
- VHF and UHF frequency bands cover from 24-1766MHz.
- Sampling rate up to 3.2MHz. (2.8MHz stable).
- The receiving modes include NFM, FM, DSB, USB, LSB and CW. Attention: It depends on the SDR software used.
- 8-bit ADC sampling provides up to 50 decibels of dynamic range.
- 50 ohm input impedance.
- Dual SMA gold-plated antenna connector.
- Aluminum shielding shell, blue oxide layer on the shell, laser engraving, fine processing appearance.
- Small size
- Free software is provided
- Independent antenna input ports HF and UV
- USB computer connection (powered via USB)
- Very high dynamic range
Note: All specifications are subject to change without notice. Thank you for your understanding!
Package Included:
- 1 x Set of SDR Receiver
