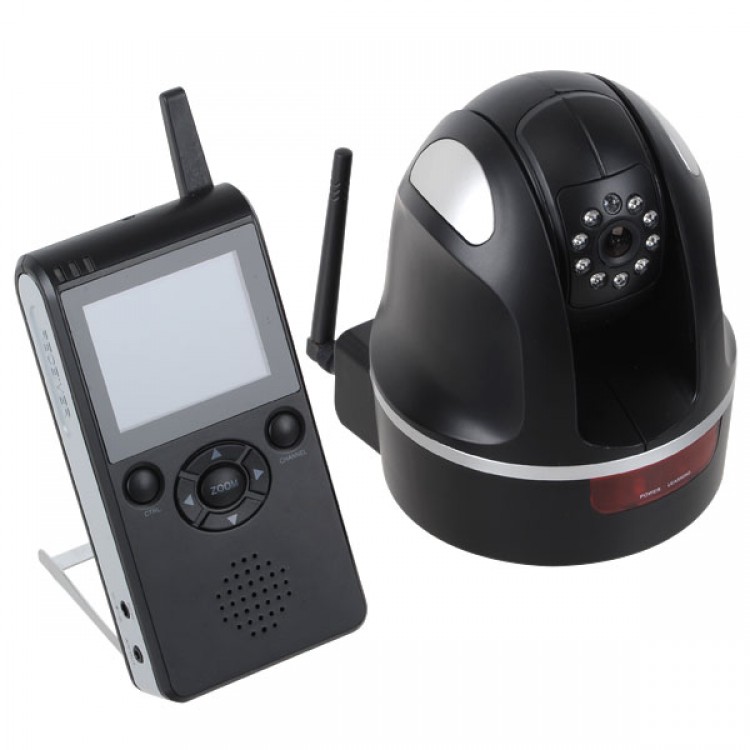

8229JE Wireless Digital Pan and Tilt Home Surveillance System

8229JE Wireless Digital Pan and Tilt Home Surveillance System
Description:
- Real-time high-quality video and audio monitoring
- Built-in digital wireless transmission module
- Automatic channel switching scheme for avoiding interference
- Encrypted digital wireless signal for privacy protection
- Control pan & tilt and viewing functions wirelessly
- Infrared LEDs allow for nighttime surveillance
- Camera pans 270 and tilts 120 - High-quality microphone and built-in speaker
- Operates on 4 different wireless channels
- Maximum signal transmission of 300m (1000 ft)
Specification:

- Receiving Frequency:2.400GHz~2.480GHz
- Method of regulation:GFSK
- Working Temperature: -20~60°C/ -10~50°C
- Definition (dot): 480mm((W) x 240mm((H)
- Operation Humidity: 15%~85%
Camera:
- Picture Total Pixels: 640×480
- View angle: 55°
- Bandwidth: 3MHz
- Image Sensor Type: CMOS
- Horizontal Definition: 380TV Line
- Transmission Signal: Video, Audi
- Minimum Illumination: 3Lux/F1.2
- Open Transmission Distance: 200M
- Power Supply: 5 V
- Transmission Power: 17dBm
- Dimensions(W×D×H): 112×109×133mm
- Weight: 420g
Receiver:
- Sensitivity≤-80dBm
- LCD: 2.4'' tft lcd
- Working time:3 hours
- Power: DC5V
- Size: 68 x 149 x 26mm
- Weight:135g
- Receiving Signal: Video, Audio
- Battery: Build-in 3.7V/350mAh lithium battery
- Power Consumption: ≤1W
