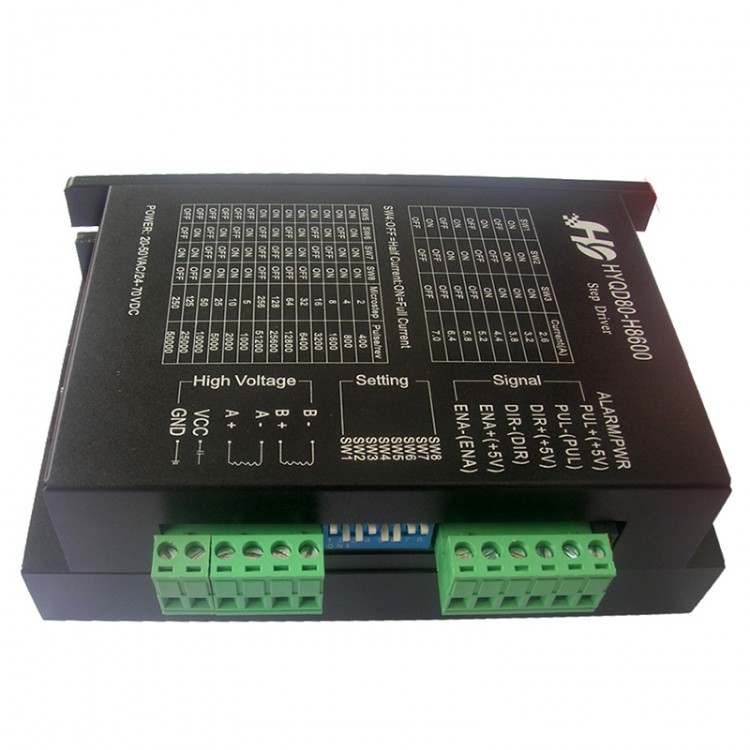

86 Step Motor Drive High-Voltage DC24V-70V AC20-50V 7A 256 Subdivision Stepper Motor Driver
Description:
This is driven by discrete element structure, as long as you don't over voltage and the connection is good, please be assured to use, for 2phase 4 line, 6 line, 8 line . For the 86, 57 series of 7A (including 7A) two-phase four wire, six wire, eight wire stepper motor.
Features:
- Input signal optical isolation
- 0KHz chopper frequency
- Bipolar constant current chopping
- DC24-70V, AC20-50V power supply
- Maximum drive current: 7A/phase
- Output current dial switch be adjustable
- Input signal is compatible with TTL, and can accept the differential signal input
- Automatic into semi flow mode 8, stationary, reduce the drive and motor heating
- High subdivision: 2,4,8,16,32,64128256. 5,10,25,50125250
- High reliability: after testing work for a long time, ensure the stability of power devices selection, leave enough margin.
Environment:
- Cooling way:Natural air cooling mode
- Occasion: Avoid metal dust, oil mist and corrosive gas
- Temperature: -15 -- +45degree C
Electrical characteristics:
- DC24-70V, maximum power supply:80V
- Output phase current :2.6A-7A
- Logic input current: 10-20mA
Package included:
- 1 x Stepping Motor Driver
