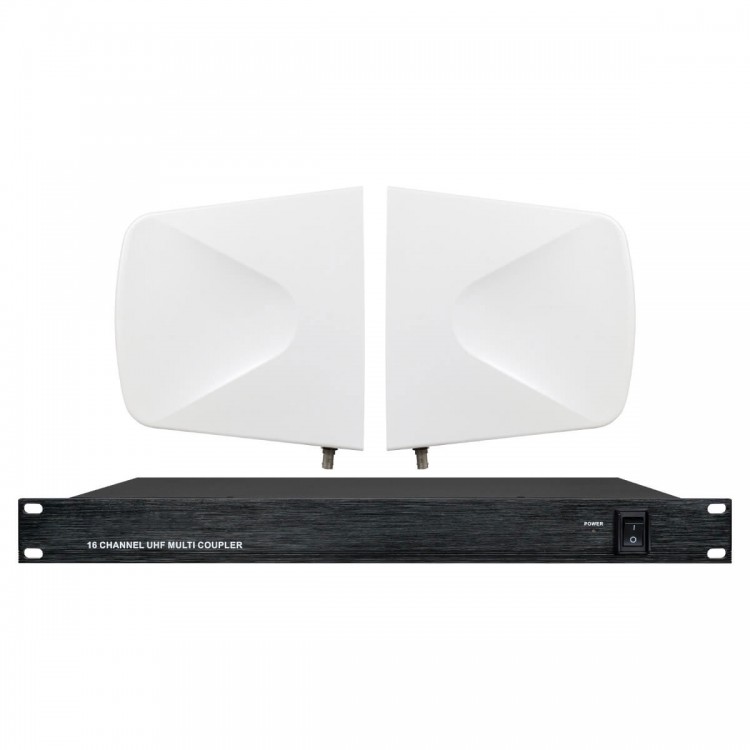

866 Antenna Distribution System Distributor 16 Channel UHF Multicoupler for 8pcs Dual-antenna Mics
Features:
- 866 antenna distribution system
- 16-channel UHF multi-coupler
- For 8pcs dual-antenna microphones
- It comes with an aluminum case
- Your ideal antenna distribution amplifier
Specifications:
1. Antenna
- Operating frequency: 550-810MHz
- Operating current: DC 100mA±10mA
- Working voltage: DC 10-15V
- Antenna interface: BNC
- Gain: 18dB±1dB
- Directivity: 3db bandwidth 72 degrees
- Impedance: 50Ω
2. Main Unit
- Operating frequency: 440-900MHz
- Operating current: DC MAX: 3000mA±100mA
- Working voltage: DC 12-15V
- Bias voltage: DC 12V±1V
- Bias current: DC 100mA±10mA
- DC output: 4 interfaces and 2.5A maximum
- Gain: -0.5 to 5dB±1dB
- Antenna interface: SMA*16
- Bias interface: BNC*2
- Impedance: 50Ω
Package Included:
- 1 x Main unit
- 2 x Antennas
- 1 x Power adapter
- 4 x DC power cables
- 2 x 2.5m connection cables
- 16 x 1m connection cables
- 2 x Bracket connectors
- 16 x Screw-on adapters
- 1 x Aluminum case
Packaging Details:
- Weight: 8.5kg
