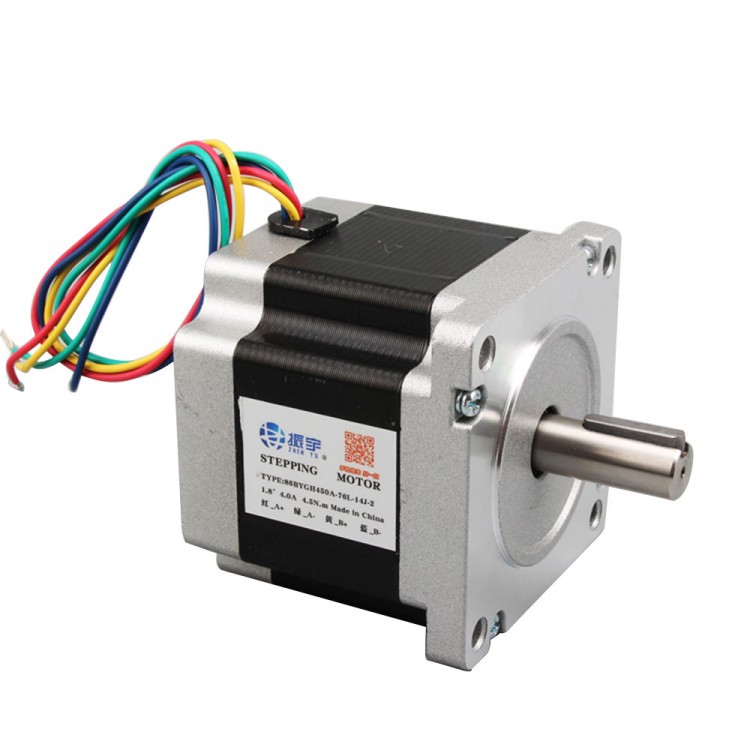

86BYGH450A Stepper Motor 4-Phase 14mm Shaft Diameter for CNC Engraving Machine
Specification:
- Shaft diameter: 14mm
- Size: 86*76mm
- Length of the output shaft: 35mm
- Mount size: 70*70mm
- Keyway size: 5*25mm
- Step angle: 1.8 degree -+5%
- Insulation resistance: 500V DC 100mOhm Min
- Wnvironment temperature: -20~50 degree C
- Temperature rise: 80 deg C max.
- Radial runout: 0.02mm Max.
- Axial runout: 0.1-0.3mm
- Phase: 4
- Current: 4A
- Inductance: 3.5mH
- Maximum static torque: 2.5 kg.cm
- Weight: 2.3kg
- Body: 86*76mm
- Moment of inertia: 2700g.cmxcm
Package included:
- 1 x Stepper Motor
