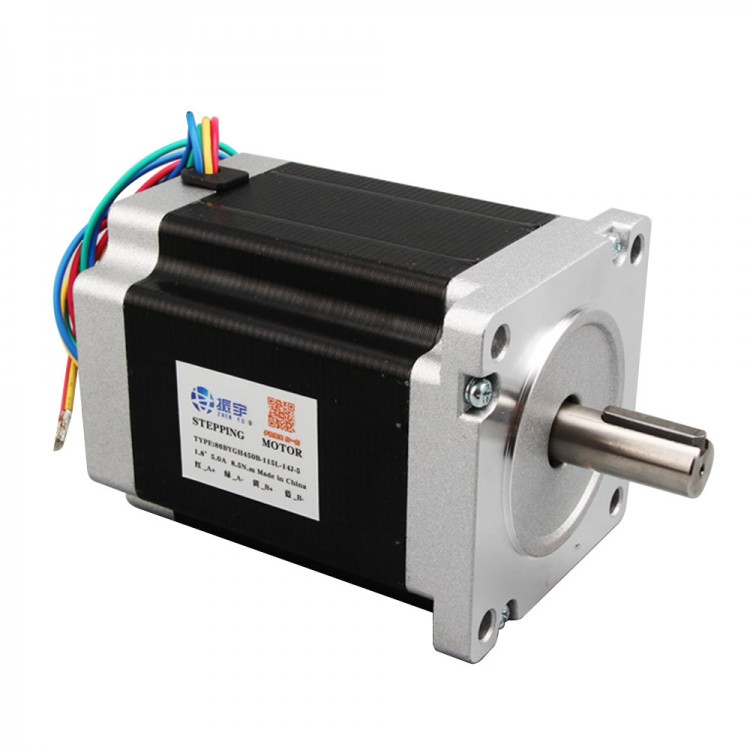

86BYGH450B Stepper Motor 8.5N.m 86x113mm 5A for CNC Router Engraving Machine
Specification:
- Shaft diameter: 14mm
- Step angle: 1.8 degree-+5%
- Voltage: 3.5V
- Phase: 2
- Current: 5.0A
- Inductance: 2.2mH
- Resistance: 0.6-+10%Ohm
- Insulation resistance: 100MOhm (500V DC) Min
- Maximum static torque: 60KGF.CM
- Insulation grade: B
- Temperature: 20-50 deg C
- Temperature rise: 80 deg C Max
- Radial runout: 0.02mm Max.
- Axial Bounce: 0.1-0.3mm
Package List:
- 1 x Stepper Motor CNC
