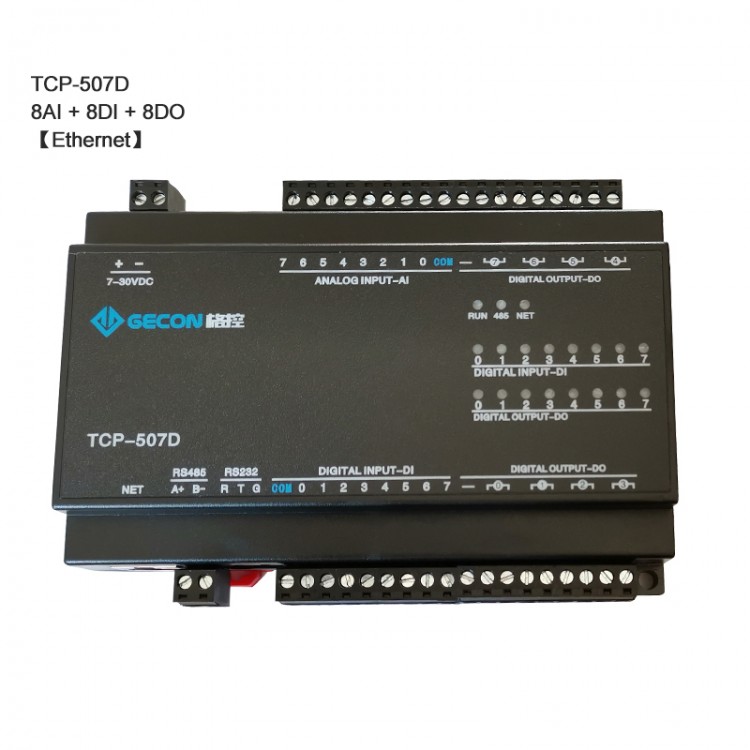

8AI + 8DI + 8DO For Modbus Ethernet Module Industrial Controller TCP-507D [Ethernet Communications]

8AI + 8DI + 8DO For Modbus Ethernet Module Industrial Controller TCP-507D [Ethernet Communications]



Download Module Information:
http://pan.baidu.com/s/1i5DOOwX

Advantages:
- AI: 8
- DI: 8
- DO: 8
- Ethernet: 1
- For MODBUS-TCP Protocol: Support

Description:
The general data acquisition module is widely used in various industries such as building, HVAC, fire protection, water supply, petrochemical, and environmental protection. It is adopted by most integrators, automation companies, and research institutes. It is a cost-effective data acquisition module with stability and reliability.

Support PLC. For Siemens and the like.
Support for Kingview, Force Control, MCGS and other configuration software.
Support for Modbus protocol touch screen, text screen.
Support for all standard Modbus device online communication.
If it reaches a certain number, functional modules can be customized.
R&D personnel directly face customers with technical support and assist customers in completing projects.

Product Stability & Reliability:
- Device selection: CPU and other key devices are imported from the United States
- Production link: reflow soldering process, integrated machine production soldering
- Technical support: R&D engineers directly face customers and provide technical support
- Quality assurance: industrial grade quality

System Parameters:
- CPU: American imported chip, 32-bit high-speed processor for ATMEL ARM, 72MHZ
- Operating system: For GCOS, 10ms scheduling mechanism
- Power supply voltage: 7-30VDC at 3W, power supply reverse connection protection, isolation design
- Communication interface: DCDC isolation design, 2500V lightning protection, ESD, over-voltage, over-current protection

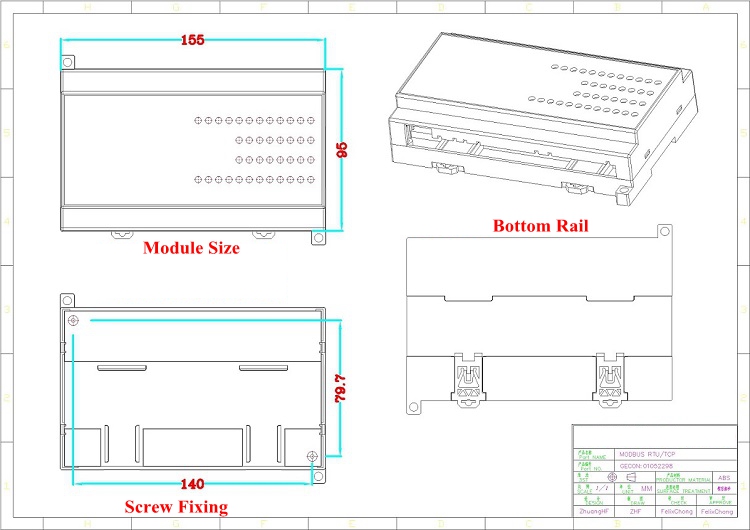

- Dimensions: Volume: 155 x 95 x 39 mm (LxWxH)
- Installation method: screw fixation, rail installation
- Environmental indicators: -40 to 85℃, 5%~95%RH without condensation, IP20 protection
- Hardware watchdog: 1 second hardware watchdog protection system
- Channel isolation: 2500VDC isolation, anti-interference protection design. Since 1997, the product has been stably applied to industrial sites

Ethernet Parameters:
- Communication interface: RJ45 interface
- Communication protocol: For MODBUS TCP protocol
- Communication rate: communication with the host computer, more than 100 times per second
- Communication bandwidth: 10M/100Mbps, real high-speed Ethernet
- IP address: 192.168.1.75
- Port number: 502
- TCP link: It can establish a link with 8 computer clients at the same time and communicate simultaneously
- Support network cable: Both crossover network cable and direct network cable are available, and the module can be adaptive
- Configured software:
* IP Address: 192.168.1.75
* Port number: 502
* Subnet-mask: 255.255.255.0
* Default gateway: 192.168.1.1

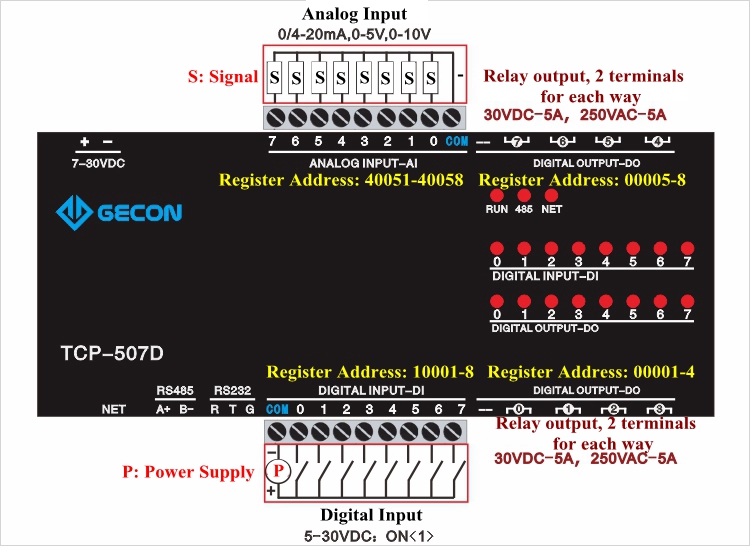

AI (Analog Input):

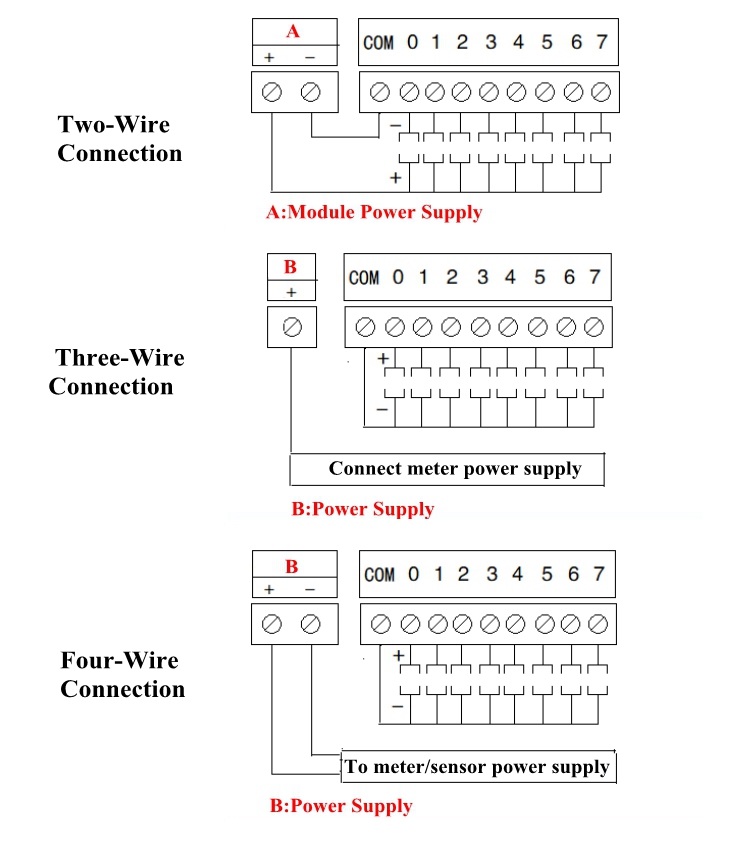

- Input type: Current 4~20mA/0~20mA; Voltage 0~5V/0~10V
- Accuracy: 0.1% accuracy, 12-digit ADC imported from the United States
- Refresh rate: update all I/O point data every 0.1 second
- Application design: Industrial-grade anti-interference design, stable and reliable data, and anti-misconnection protection design


DI (Digital Input):

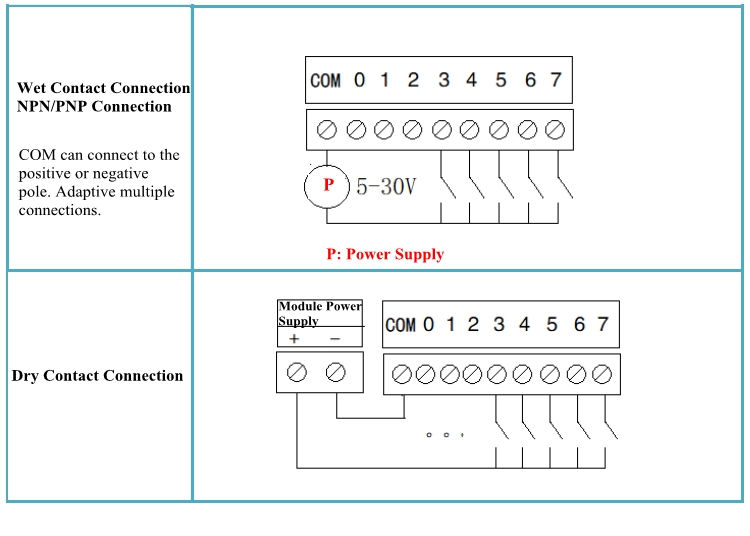

- Input mode: NPN, PNP, dry contact, wet contact
- ON level: 5-30VDC
- OFF level: 0-1VDC
- Refresh rate: update all I/O point data every 0.1 second
- Application design: industrial-grade anti-interference design, stable and reliable data, anti-misconnection protection

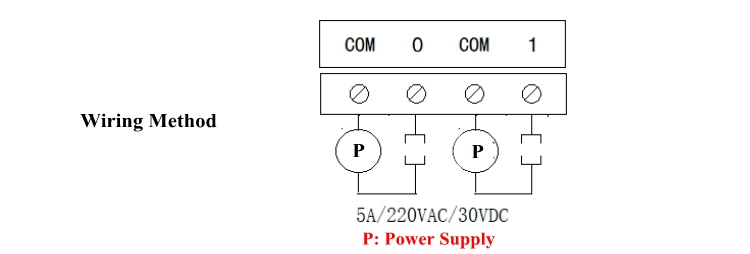

DO Relay Output:
- Output mode: relay
- Contact capacity: normally open relay: 5A/250VAC, 5A/30VDC
- Isolation protection: optocoupler isolation + relay isolation
- Response speed: 0.01 seconds (10ms)
- Application design: industrial-grade anti-interference design, stable and reliable

Package Included:
- 1 x Module

Note: Other items pictured are not included, for demonstration purposes only.
