8CH H.265 1U HDMI Encoder PC NVR Video Encoder for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP/RTP/ONVIF

8CH H.265 1U HDMI Encoder PC NVR Video Encoder for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP/RTP/ONVIF

Features:
- 8CH HDMI H.265 audio video encoder
- HD picture quality is convenient for real-time livestreaming: support input 1920*1080P30 frame HD picture and output 1920*1080P30 frame HD picture

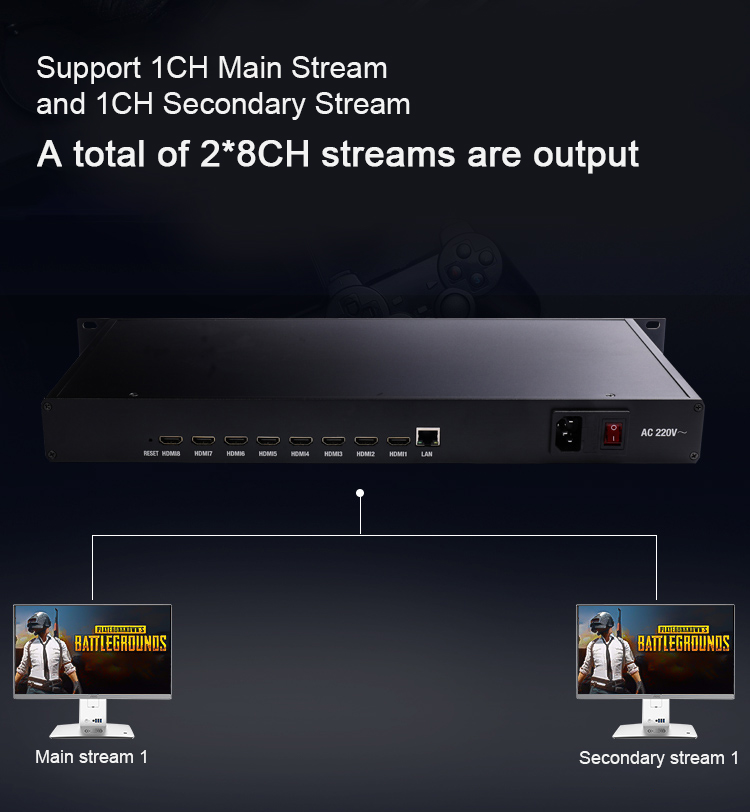

- Support 1CH main stream and 1CH secondary stream. A total of 2*8CH streams are output
- 7*24 hour stable working performance
- Main functions: can be used for NVR recording, IPTV livestreaming, and LAN livestreaming. Supports low-latency transmission and OSD settings
- Enable HD livestreaming experience: Collect computer footage for livestreaming without affecting your computer's speed. It can directly replace another computer to complete livestreaming, saving money, space and power

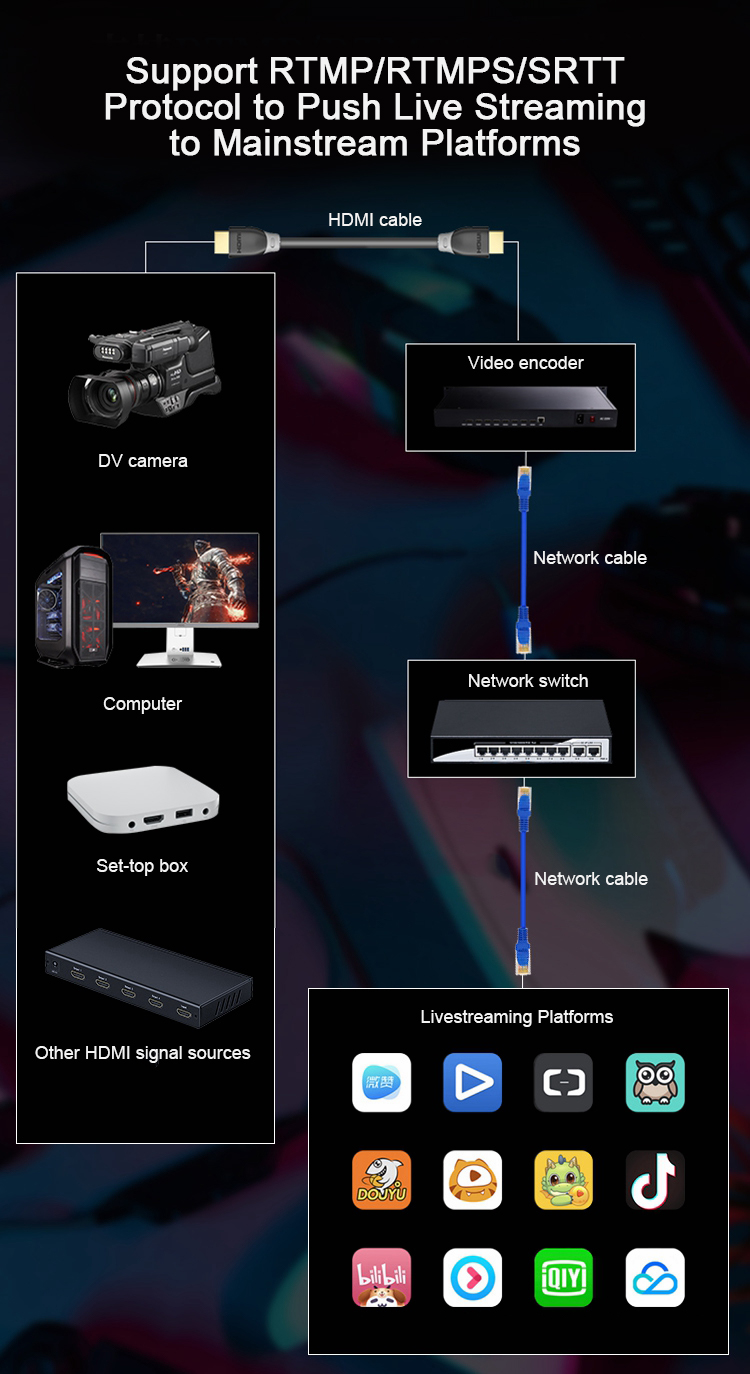

- Support RTMP/RTMPS/SRT protocols to push live streaming to major mainstream platforms

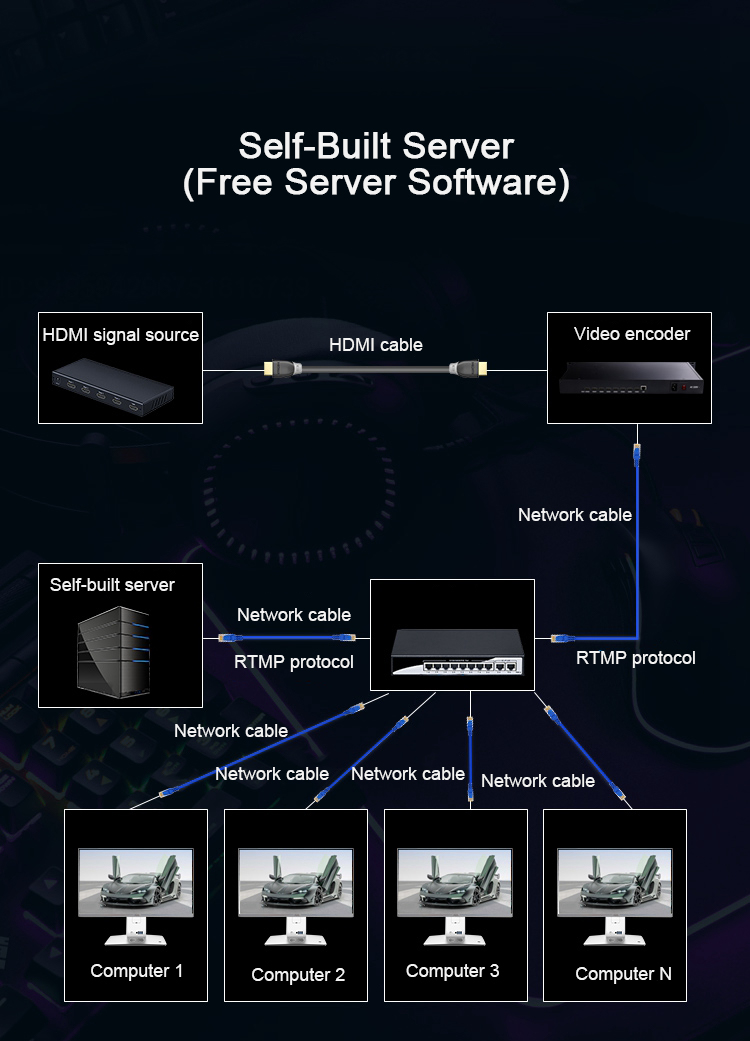

- Built-in RTMP/SRT server. The default RTMP pull link (rtmp://192.168.1.168/live/0). The default SRT pull link (srt://192.168.1.168:9000)

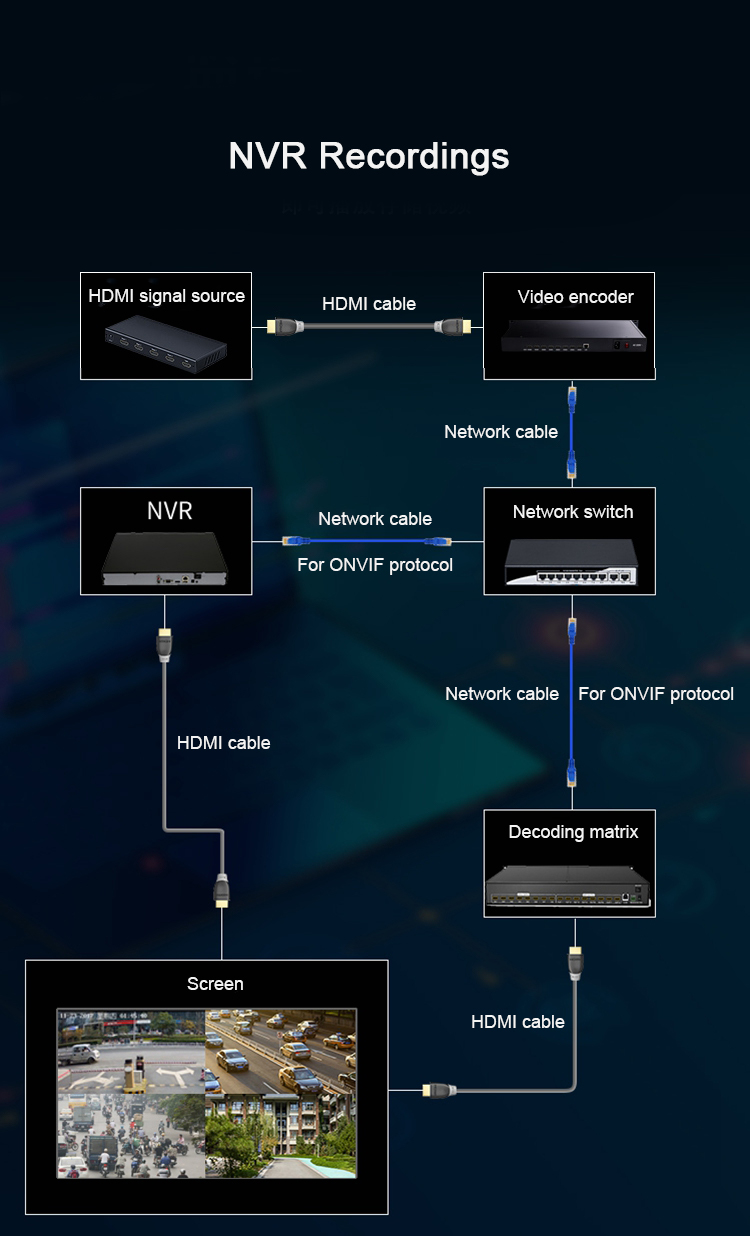

- NVR recordings: Through the protocol for ONVIF, the NVR can find the 8 IPs of the encoder, and add 8 HDMI channels to the NVR to play the stored video

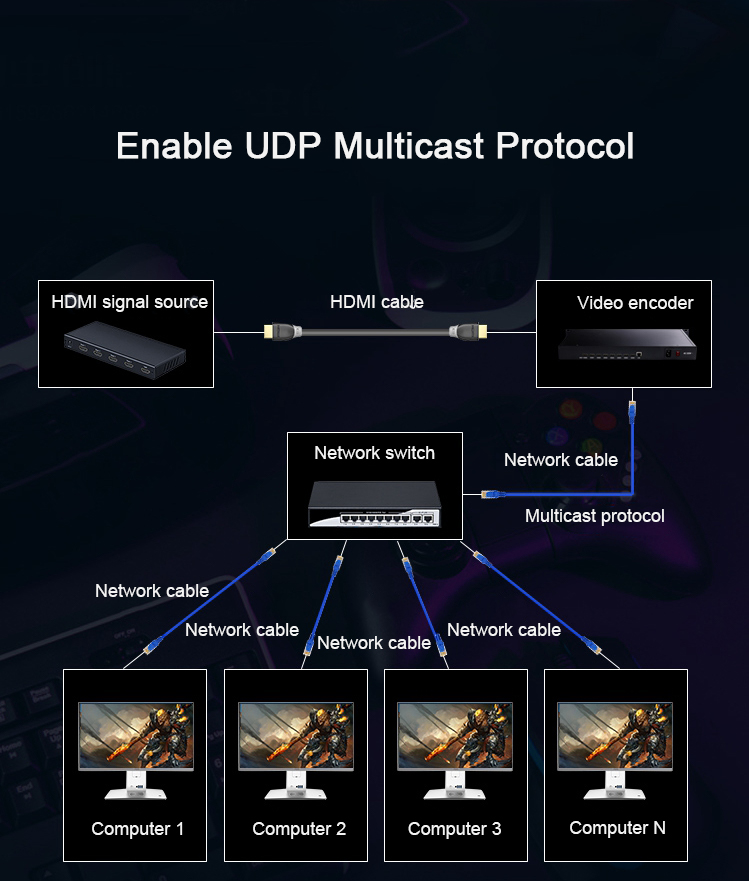

- Support LAN multi-person access to livestreaming. Support RTMP/RTSP/HTTP TS/HLS/FLV/RTP/UDP/SRT protocol for direct playing in the LAN. The standard version defaults to the output of single-screen content per HDMI stream, if you need to display multi-screen content in one stream, please find customer service for the upgrade package of this version
- Low latency: Collect computer desktop and play PTE protocol. Delay is 80-200 milliseconds
- PTE protocol: This protocol is a proprietary protocol independently developed and its main function is low latency
- OSD display: LOGO images, text, scrolling text, and time can be added to multiple areas of the video screen
- Audio access: 8-channel HDMI audio can be accessed. Audio coding method: AAC/AAC+/AAC++/MP3/MP2/AC3. Channel: stereo/left/right. RTSP streams are compatible with G711A encoding

Product Parameters:
Audio & video input:
- Video input: 8CH HDMI
- Audio input: 8CH HDMI built-in audio

Video encoding:
- Encoding type: H.265/H.264/MJPEG
- H.264 level: Baseline/Main/High optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval: 5-300 frames adjustable
- Bit rate: 32-32000kbit adjustable
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/ 352x228/320x256/320x240/320x180/240x180. Same as input resolution
- Stream control: CBR/VBR optional
- Streaming: Support RTMP/RTSP/HTTP TS/HTTP/FLV/HLS/SRT/UDP MULTICAST/RTP MULTICAST

Other parameters:
- Network: Gigabit
- Configuration management: Configuration management via Web
- For ONVIF: Support for ONVIF to find and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: < 12W
- Operating temperature: -20°C to +60°C
- Operating humidity: < 90%, non-condensing
- Size: 48.2 x 20 x 4.5cm/19 x 7.9 x 1.8"
- Net weight: 2.65kg/5.8lb

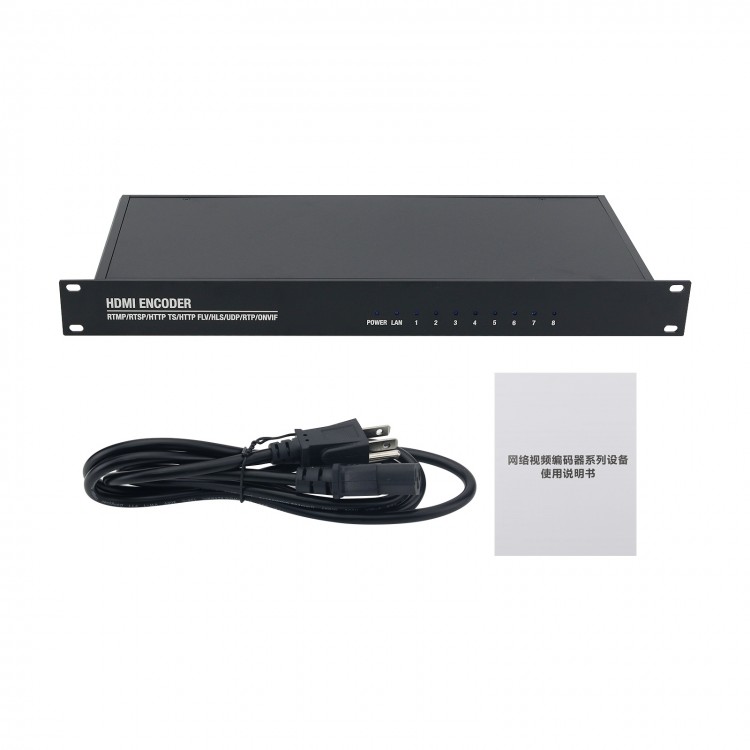

Package Included:
- 1 x Video Encoder
