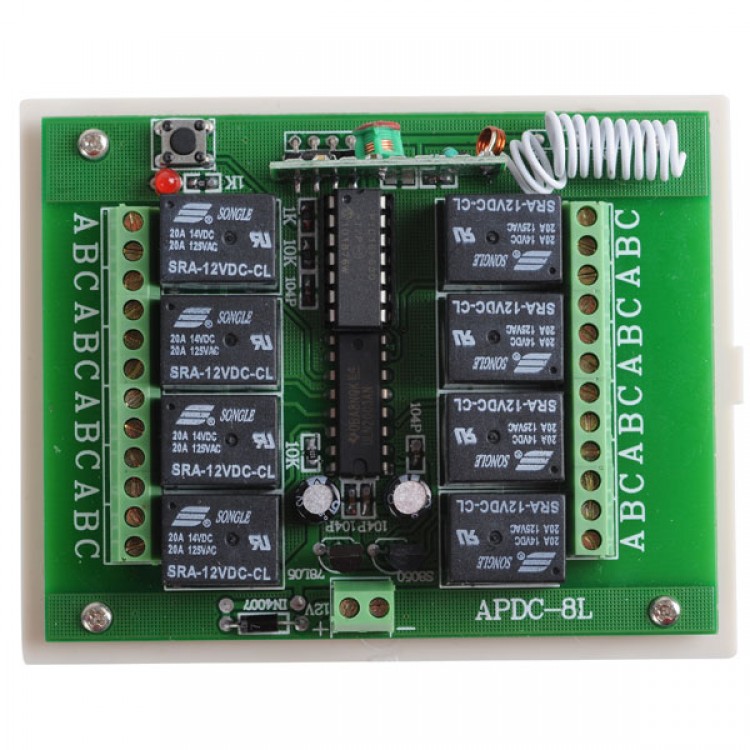

8CH Remote Control Switch Receiver Module 12V

8CH Remote Control Switch Receiver Module 12V
Introduction:
- This is a widely used wireless control devices.It use of intelligent microprocessor control and can be used in garage door control, lighting control, remote control curtains, and other areas. Easy to install, simple to use safe and reliable.Great help for you !
Features:
- New and high quality
- Compact design and easy to operate
- Used in garage door, barrier, lift gate, home appliances and other industrial remote areas
- 8CH reliable control
- Transmitting frequency: 315MHz / 433MHz ( optional)
- Low power consumption
Specifications:
Receiver:
- Channel: 8CH Control
- Working  voltage:12V
- Working  current:≤6mA
- Working  frequency: 315MHz / 433MHz ( optional)
- Working  temperature: -20℃ ~ 70 ℃
- Alarm  volume:≥105dbm
- Panel chipset: PICI6F630
- Output current: ≤10A
- Types: Toggle, Momentary, Latched, Toggle+ Momentary
- Decode: Learning code
- Color:White
- Dimension: 10 x 9 x 4(L*W*H)

Learning method:
- First,pls press the learning button on the controller,then,according to your requirement press the corresponding button on the remote control.When you hear a “Bi” sound from buzzer,that indicates successful studying of code.(Note:If you would like to change the operate function,pls make sure clear all the other function and reselect the learning button.)
Caution:
If you lost the remote control,you just need to clear away the storaged information in the receive controller.The lost remote control will can not remote the receive controller.
Package included:
- 1 x 8CH Remote Control Switch Receiver 12VDC
