8G RAM 32G EMMC Dual Network Interface Development Board with RK3568 CM3I Core Board and Metal Case

8G RAM 32G EMMC Dual Network Interface Development Board with RK3568 CM3I Core Board and Metal Case

Description:

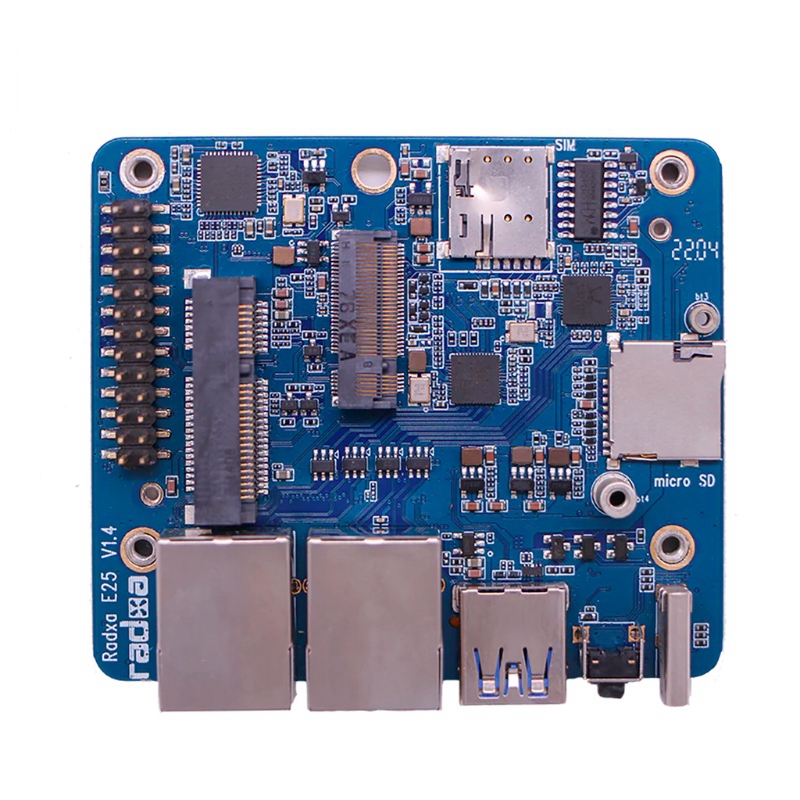

- For Radxa E25 is a network application carrier board for ROCK3 Compute Module Industrial(CM3I) for Radxa. It utilizes the CM3I SOM with a 64bits quad core processor, USB 3.0, dual 2.5G Ethernet and supports a wide range of WiFi & Cellular modules, making it perfect for 4G/5G and network applications. With different CM3I, for Radxa E25 provides ram sizes options from 1GB to 8GB LPDDR4, and offers USD card for OS and storage as well as supporting M.2 SATA SSD.

Hardware overview:
- Upgradeable SoM and carrier Board design with easy to assemble case and heat sink
- Rockchip RK3568 with Quad core Cortex-A55 (ARM v8) 64-bit SoC at 2.0GHz
- Mali G52 GPU, supports OpenGL ES 3.2/OpenCL 2.0/Vulkan 1.1
- 1 Tops NPU with RKNN Toolkit support
- 1GB/ 2GB/ 4GB/ 8GB LPDDR4 RAM
- Expansion via M.2 and mini PCIe interface for 4G/5G mobile network

Interfaces:
- 1 x USB C for power and serial console management
- 2 x 2.5G Ethernet
- 1 x M.2 Connector for 4G LTE network network or M.2 SATA 2242
- 1 x mini PCIe connector for AP WiFi or 5G cellular network
- 1 x SD Card for storage or OS
- 1 x Nano SIM card slot
- 1 x USB3 Type A 5Gbps OTG ports
- 1 x user button
- 26 x user GPIO supporting various interface options:
  – up to 3 x UART
  – up to 2 x SPI bus
  – 1 x I2C bus
  – 1 x PCM/I2S
  – 1 x CAN
  – up to 6 x PWM
  – 1 x ADC
  – up to 17 x GPIO
  – 2 x 5V DC power pin
  – 2 x 3.3V power pin

Software:
- ARMv8 Instruction Set
- Debian/Ubuntu Linux Server support
- Hardware access/control library for Linux

Power options and demands:
- via USB C with 5V2A
- via USB C with 5V4A with all peripherals connected
- via GPIO PIN 2&4 with 5V

Peripherals:
- GPIO Interface 26pin (compatible with common accessories in the market)
- EMMC
- USB
- M.2 B Key connector
- MINI PCIe connector

Case:

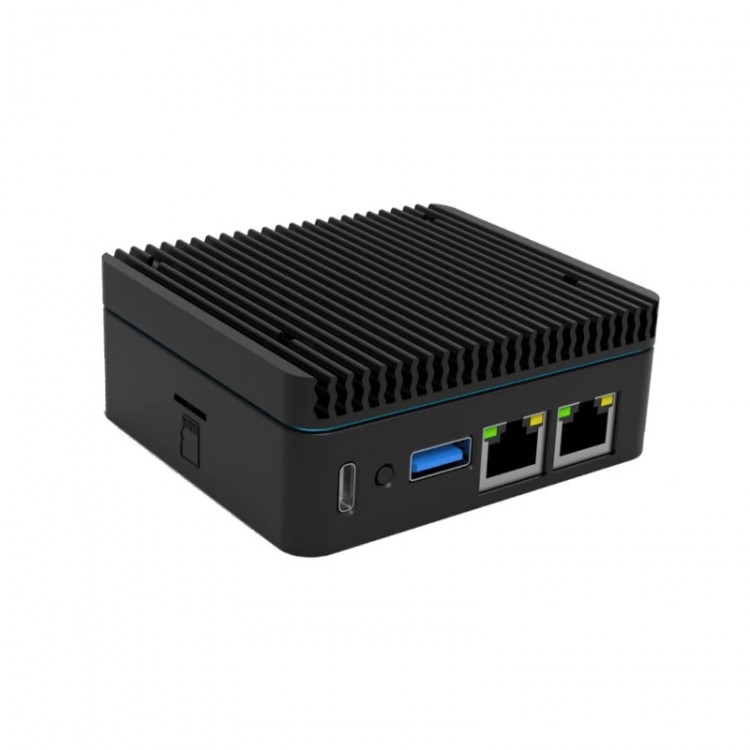

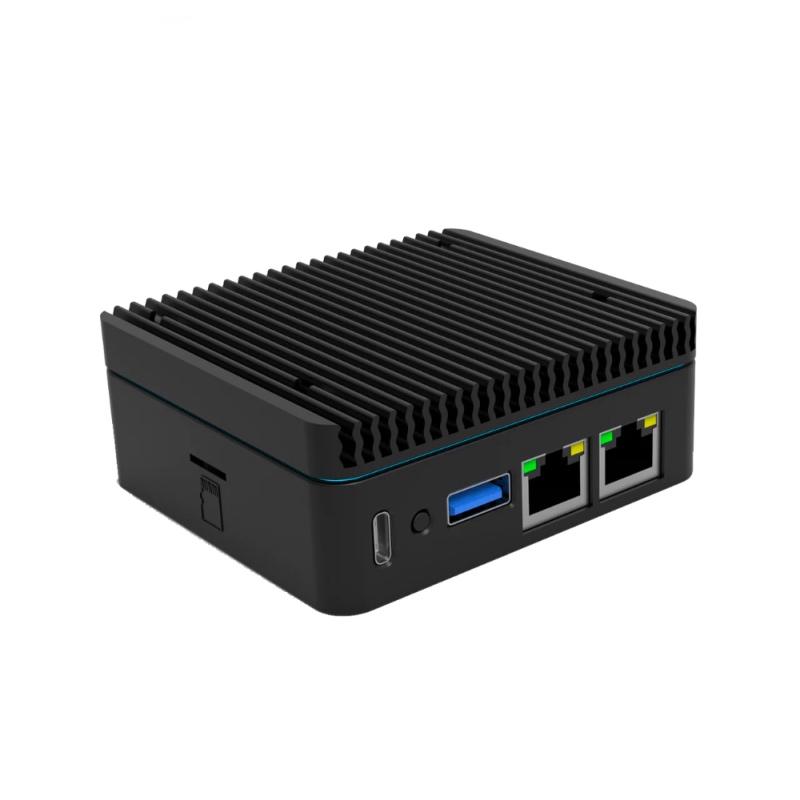

- E25 comes with a case which has an integrated heat sink

Package Included:
- 1 x CM3I Core Board
- 1 x E25 Mother Board
- 1 x Metal Case
