8K 60Hz HDMI Matrix 4X2 HDR HDMI Matrix Switch Supports HDCP 2.3 HDMI 2.1 EDID Management

8K 60Hz HDMI Matrix 4X2 HDR HDMI Matrix Switch Supports HDCP 2.3 HDMI 2.1 EDID Management

Description:
The HDMI 8K/60Hz matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals, with stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by stereo head phone.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:
- Support HDCP2.3
- Support 3D video format
- Support 8K at 60Hz
- Support audio outputs and 3.5mm earphone jack output

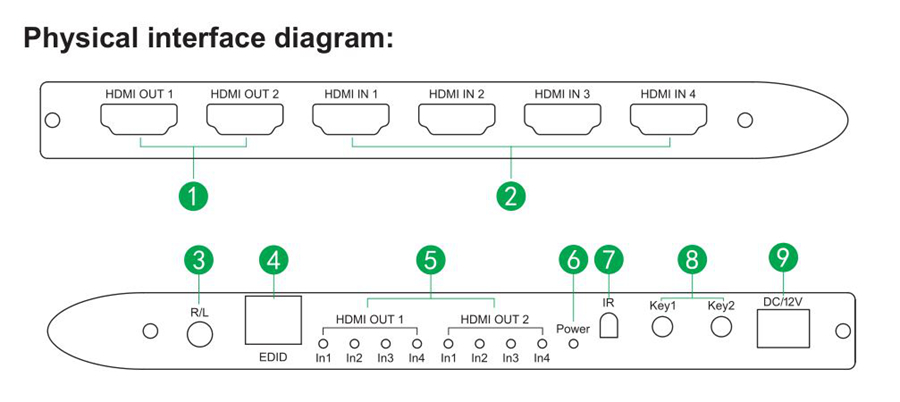

- HDMI 2.1; 4 input and 2 output ports
- Anti-static technology: prevent electronic components from being damaged by static electricity
- Anti-surge technology: Enhance product stability to prevent surge impact
- 7680*4320 pixels: Enjoy the delicate world of high-definition visual experience
- HDR: Its picture is more realistic

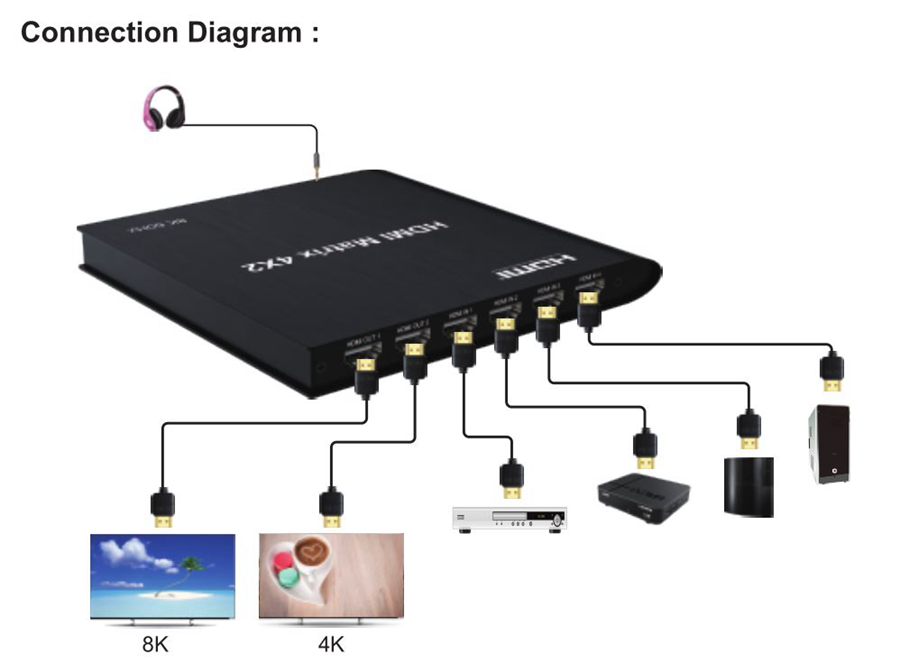

- Supports devices with HDMI interface, including set-top boxes, desktop computers and laptops; can connect to monitors, projectors, etc.
- Two-way output and dual-screen display. Four-way input signal; two-way output can be displayed in the same screen or switched to any screen
- Compatible systems: for Windows, Mac OS, and Linux. Drive-free. Just plug and play

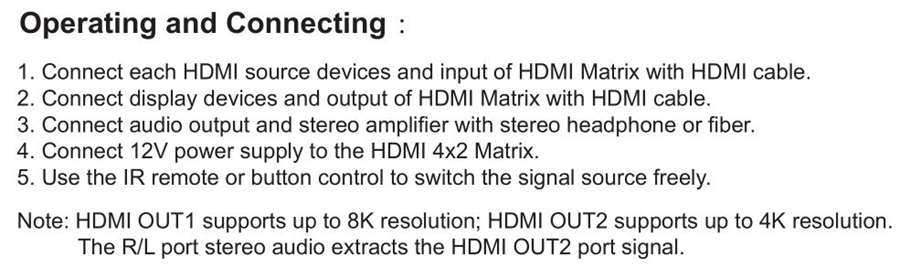

- High-resolution output: HDMI OUT1 supports up to 8K; HDMI OUT2 supports up to 4K; R/L port stereo audio extracts the signal of HDMI OUT2
- Suitable for home sharing, TV mall, advertising display, multimedia teaching, etc.

Specifications:
- HDMI resolution: up to 8K/60Hz (backward compatible)
- Support video format: 8/10/12 bit deep color
- Support audio format: for LPCM/DTS/Dolby-AC3
- Max baud rate: 40Gbps
- Input cable distance: 4K/60Hz ≤5M; 8K/60Hz ≤3M HDMI 2.1 standard cable
- Output cable distance: 4K/60Hz ≤5M; 8K/60Hz ≤3M HDMI 2.1 standard cable
- HDMI Input: 4
- HDMI Output: 2
- Max working current: 600mA
- Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/1A
- Operating temperature range: -15 to +45℃
- Operating humidity range: 5 to 90%RH (No Condensation)
- Product weight: 456 g (1 lb)
- Product dimensions: 172 x 172 x 19 mm (6.8 x 6.8 x 0.7 inch)

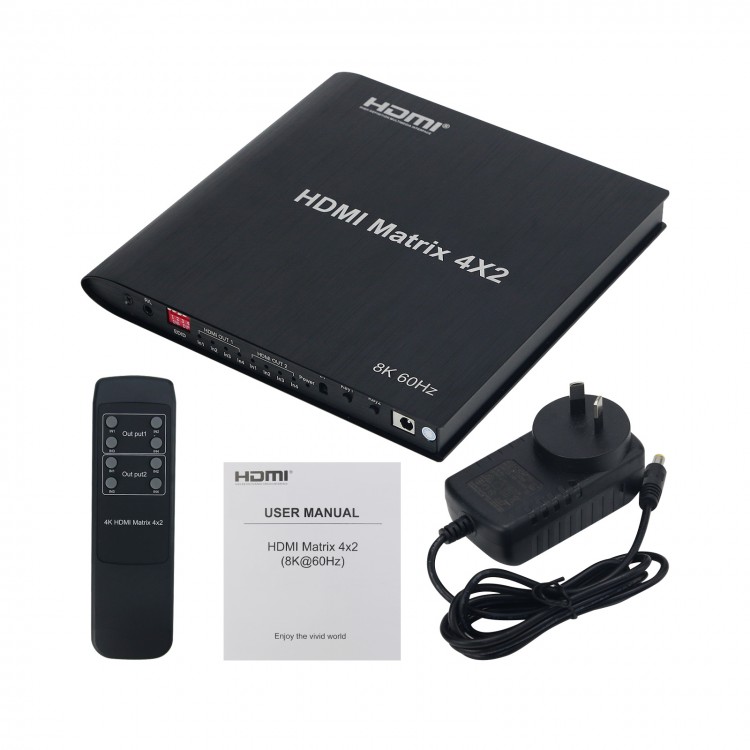

Package Included:
- 1 x HDMI Matrix 8K 60Hz

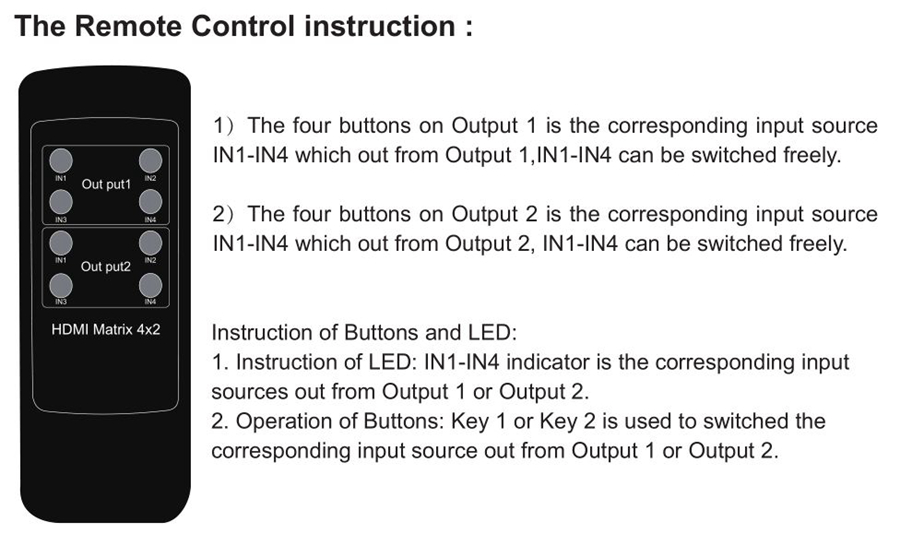

- 1 x IR Remote Control
- 1 x Power Adapter
- 1 x User Manual

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
