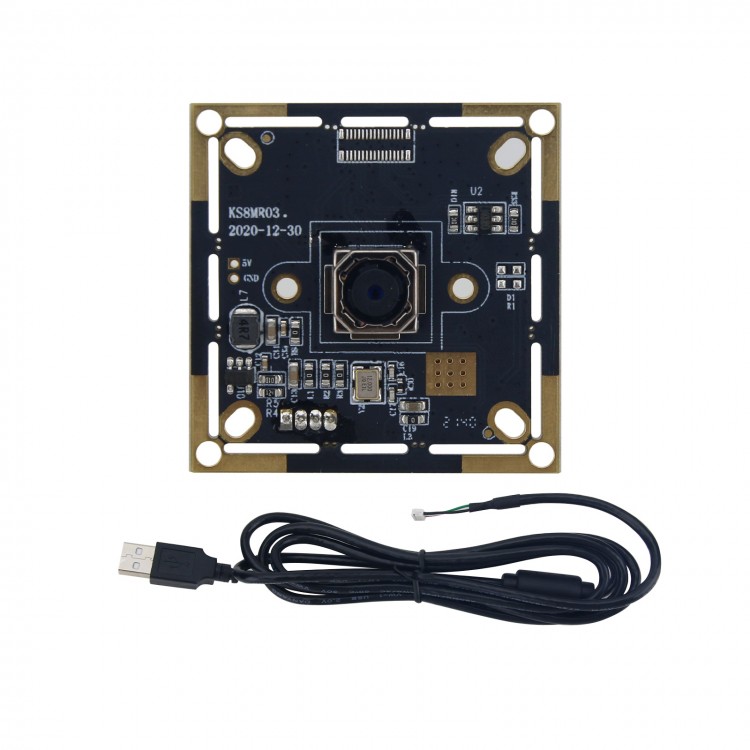

8MP USB Camera Module IMX179 79-Degree Distortion-Free AF Lens 3.6MM For Industrial Camera Scanner

8MP USB Camera Module IMX179 79-Degree Distortion-Free AF Lens 3.6MM For Industrial Camera Scanner

Attention:
According to application scenarios and functional goals of the camera, it is necessary to comprehensively consider the product structure size, image clarity, frame rate, lens angle, lighting scene and other factors to select the appropriate DSP chip, sensor and lens. Therefore, the camera usually needs to be customized. This product is only for customer testing DEMO. Please tell us what product do you want the camera to be used for? What function does it achieve? What are the special requirements? We will help you choose the DPS+sensor+ lens solution according to the cost target and other comprehensive factors, and then design the product PCBA according to the structural requirements.

Description:
The module reserves LED light control, GPIO trigger. It can be used as an AF module. It can be connected to IR-CUT and LED peripheral circuit. It boasts low working current, low power consumption, low heat generation. It can be used in text recognition equipment, beauty equipment, outbound scanners, and microbial observation equipment.

Features:
- 8MP camera module
- Used in text recognition, biometrics, skin detail shooting and the like
- 3264*2448, 2592*1944, 15fps (MJPG), high-speed focusing
- 8MP HD, suitable for macro detail shooting
- Stable work in the range of -20℃ to 60℃
- Support USB2.0 high-speed transmission
- UVC architecture, for Windows XP & 7 & 8.1 & LINUX & Android & MAC multiple systems

Application:
- Advertising player
- Industrial equipment
- Bank ATM
- Self-service terminal equipment
- Medical beauty equipment
- For Android devices

Product Parameters:
- Module No.: 8MR01 CEYUAN
- Module Size: 38 x 38 x 6mm/1.5 x 1.5 x 0.2"
- Operation Temperature: -30℃ to 70℃
- Temperature (Stable Image): 0℃ to 50℃
- Assembly technique: SMT (ROSH)
- Focus: AF
- Object distance: 5CM-infinity/2"-infinity
- Resolution: 1100LW/PH (Center)
- PCB printing ink: Black
- Interface: USB2.0 and 1.1, optional USB3.0
- Power: USB bus power
- Operating system request: for ALL WinS XP, 7, 8, 10 or Linux, Android
- Package: Anti-electrostatic tray
- Certifications: FCC and CE
- Working current: <200mA
- Sleep model current: <20mA
- Sensor Type: IMX179
- Active Array Size: 3264*2448
- Dark Current: TBD
- Sensitivity: TBD
- Pixel size: 1.4um*1.4um
- Maximum Image Transfer Rate: 3264*2448, 2592*1944, 15fps; 1920*1080, 1280*720, 800*600, 640*480: 30fps
- S/N Ratio (maximum): TBD
- Dynamic range: TBD
- Package: PLCC

Lens Type:
- Lens Construction: 3G2P+IR
- F/NO: 2.5
- EFL: 4.16mm
- BFL: 3.4mm
- View Angle: 79°
- TV Distortion: <1.2%
- Relative lumination: 50%
- IR filter: 650±10nm

DSP Type:
- AGC/AEC/Whiter balance: automatic
- Output Format: YUY2 MJPG
- Fixed Pattern Noise: <0.03%
- Package: QFN 48PIN

Package Included:
- 1 x Set of Camera Module
