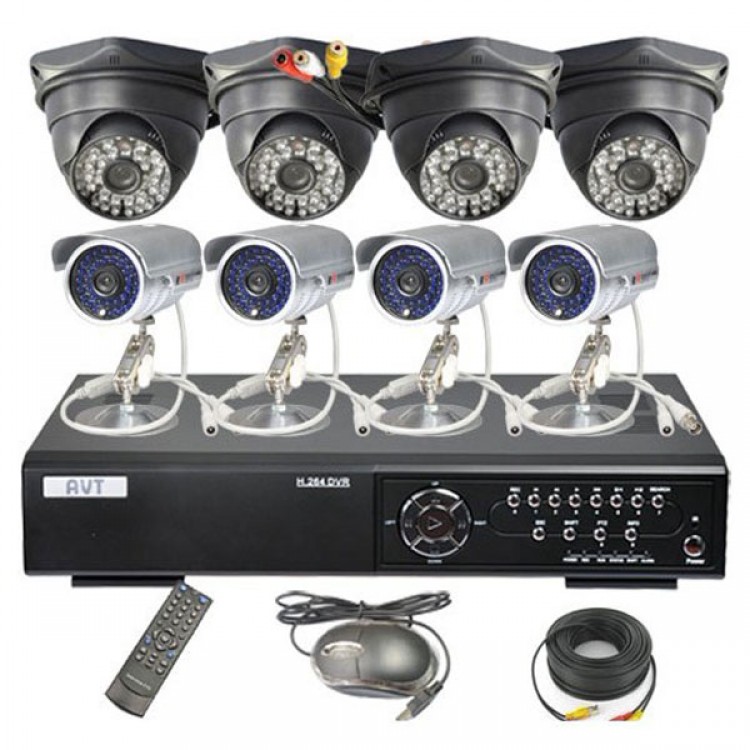

8pcs Outdoor Audio CCTV IR Camera AVT618 DVR 8CH 1000GB Network DVR System
Overview:
The kit includes a 8CH H.264 standalone DVR,4pcs 36LED security cameras and 4pcs 48LED Indoor AUDIO DOME system ,FREE AUDIO/VIDEO/POWER/AUDIO cable,FREE CAMERA/DVR power supply, quickly and easily install.
The series DVR is designed specially for security and defence field which is an outstanding digital surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality image, low error coding ratio and single frame playing. It introduces TCP/IP network technology which achieves the strong network communication ability and telecommunication ability.
The series DVR can be used individually or online applied as a part of a safety surveillance network. With the professional network video surveillance software it achieves the strong network communication ability and telecommunication ability.
The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation, intelligent housing, factory, storehouse, water conservancy and so on.This Camera is a day/night Indoor security auido dome camera ,with 60ft night vision.Uses us free for you cable, connects dvr to camera, Create your own security system.
Main functions
- Real-time surveillance
- analog interface and VGA interface (VGA interface is equipped selectively)
- surveillance function through monitor or display Storage
- non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the life-span
- special storage format which insures the data safety Compression
- real-time compression by individual hard disk which insures the audio and video signal stable synchronization Backup
- through SATA interface and USB interface such as USB equipment, removable hard disk and so on
- through net download the files in the hard disk Playback
- individual real-time video recording as well as searching, playback, network surveillance, recording check, downloading and so on
- multi-channel playback mode
Net operating
- through net tele-surveillance in the real time
- remote control PTZ
- remote check the recording and real-time playback
Alarm linkage
- only one channel relay alarm output which is convenient for the alarm linkage and light control at the spot
- protecting circuits at the alarm input and output interface which protects the main machine from damage Communication interface
- RS485 interface which fulfills the alarm input and PTZ control
- standard ethernet network interface which fulfills the telecommuting function Intelligent operating
- mouse action function
- fast copy and paste operating for the same setting
AVT618 8CH VIDOE/AUDIO NETWORK DVR Specifications:
|
Compression
|
H.264 |
|
Video System
|
NTSC / PAL |
|
Operation System
|
Windows / Linux |
|
Video Input / Output
|
BNC 8-channel inputs / 1-channel outputs |
|
Audio Compression
|
8kHz*16bit ADPCM |
|
Audio Input / Output
|
RCA 8-channel inputs / 1-channel outputs |
|
Display Frame Rate
|
PAL: 200 fps / NTSC: 240 fps |
|
Playback Resolution
|
PAL: CIF(352x288), HD1(704x288), D1(704x576) |
| NTSC: CIF(352x240), HD1(704x240), D1(704x480) | |
|
Total Recording Frame Rate
|
PAL: 200fps@CIF |
| NTSC: 240fps@CIF | |
|
Recording Mode
|
Always / schedule / motion detection |
|
HDD Interface
|
Support SATA HDD & USB disk |
|
Ethernet
|
RJ45, 10M/100M |
|
Network Protocol
|
Support TCP/IP, UDP, DHCP, DNNS, PPPoE |
|
Network Function
|
Support preview live display remotely via mobile phone and real time monitoring via IE-based browser and/or network, and support parameter setting of DVR remotely |
|
USB2.00
|
USB mouse, USB disk (backup, upgrade) |
|
Playback Mode
|
Normal play, fast forward, fast rewind, frame by frame |
|
Backup
|
Backup AVI file via USB flash disk, USB disk, USB CD/DVD-RW & Network |
|
PTZ Control
|
Built-in RS485, support PELCO-P & PELCO-D |
|
Alarm Mode
|
Motion Detection, Sensor triggered, video loss, HDD error, HDD full |
|
Senor & Alarm I/OO
|
1 sensor inputs / 1 alarm output |
| 36LED Security Camera Specifications: | |
|
Pickup Device
|
SHARP COLOR CCD
|
|
Horizontal Resolution
|
420 TVL
|
|
Pixels
|
PAL:500(H)×582(V)
|
|
NTSC:510(H)×492(V)
|
|
|
TV SYSTEM
|
PAL/NTSC
|
|
LED
|
36 PCS
|
|
Lens
|
6mm
|
|
Sync System
|
Internal Syncronization
|
|
Usable Ⅲumination
|
0.000LUX/F1.2 (LED on)
|
|
S/N Ratio
|
≥48dB(AGC Off)
|
|
Gamma Characterlstic
|
0.45
|
|
Video Output
|
1.0Vp-p 75Ω
|
|
Scanning System
|
PAL:625 lines 50 Field/sec
|
|
NTSC:525 lines 60 Field/sec
|
|
|
Electronic Shutter Time
|
Auto,PAL 1/50-100,000Sec
|
|
NTSC 1/60-1/100,000Sec
|
|
|
White Balanc
|
Auto
|
|
Power Supply
|
DC12V±10% 600 mA
|
| 48LED Indoor Audio Dome Camera Specifications: | |
|
Pickup Device
|
SHARP COLOR CCD
|
|
Horizontal Resolution
|
420 TVL
|
|
Pixels
|
PAL:500(H)×582(V)
|
|
NTSC:510(H)×492(V)
|
|
|
TV SYSTEM
|
PAL/NTSC
|
|
LED
|
48 PCS
|
|
Lens
|
3.6mm
|
|
Sync System
|
Internal Syncronization
|
|
Usable Ⅲumination
|
0.000LUX/F1.2 (LED on)
|
|
S/N Ratio
|
≥48dB(AGC Off)
|
|
Gamma Characterlstic
|
0.45
|
|
Video Output
|
1.0Vp-p 75Ω
|
|
Scanning System
|
PAL:625 lines 50 Field/sec
|
|
NTSC:525 lines 60 Field/sec
|
|
|
Electronic Shutter Time
|
Auto,PAL 1/50-100,000Sec
|
|
NTSC 1/60-1/100,000Sec
|
|
|
White Balanc
|
Auto
|
|
Power Supply
|
DC12V±10% 600 mA
|
Package Includes:
- 1 x 8 Channel H.264 Network Stand-alone Digital Video Rcorder
- 1 x 1000GB HDD
- 1 x Power Adaptor for Stand-alone DVR
- 1 x Power Cord for Stand-alone DVR
- 1 x Remote Controller for Stand-alone DVR
- 1 x Mouse for Stand-alone DVR
- 1 x CABLE connect Stand-alone DVR to TV
- 1 x CD SOFTWARE
- 1 x User manual (English)
- 4 x 36LED Color CCD Day&Night Cameras
- 4 x 48LED Color CCD Day&Night Indoor AUDIO DOME Cameras
- 4 x 10m AUDIO/Power/Video cables
- 4 x 20m Power/Video cables
- 2 x Power Suppliers for Camera (12V 5A)
