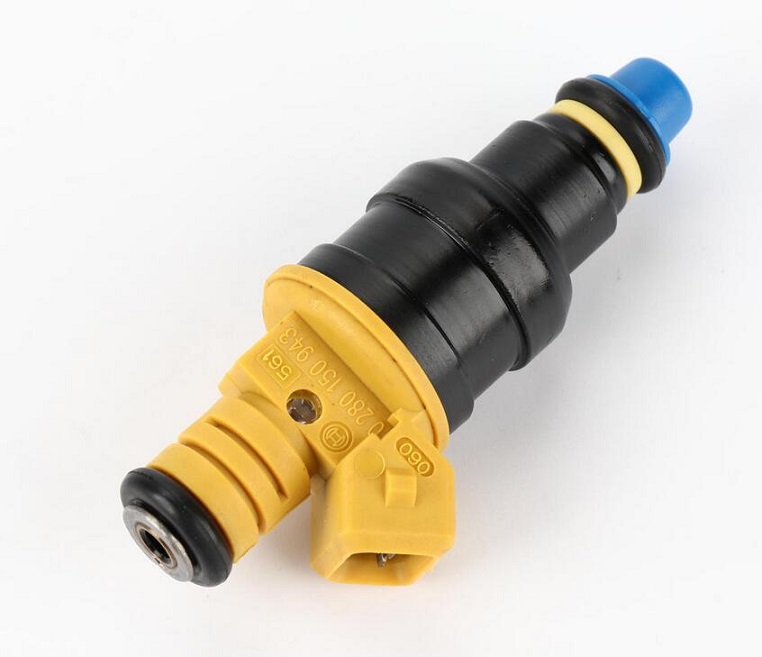

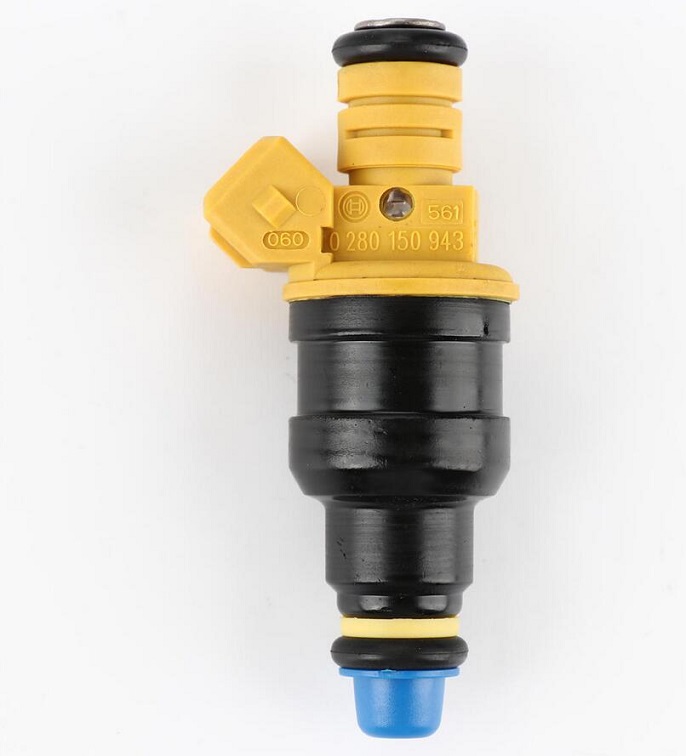

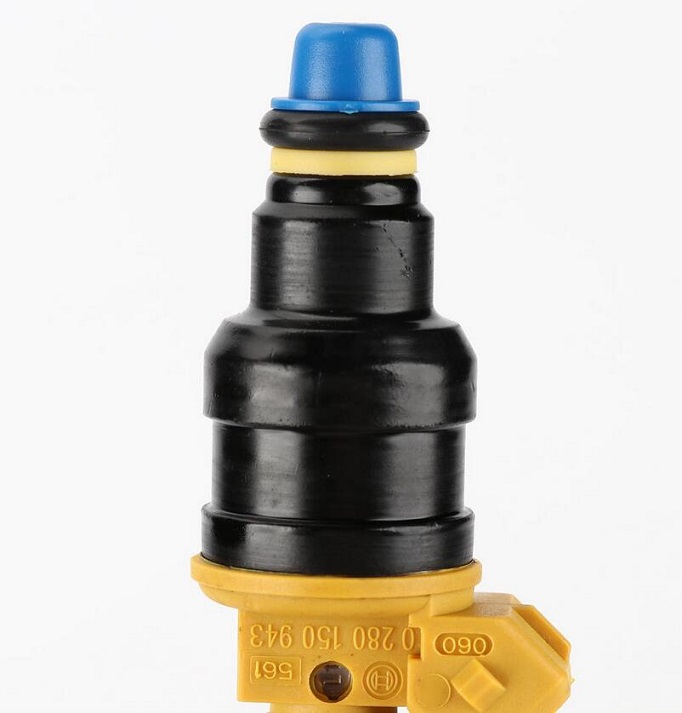

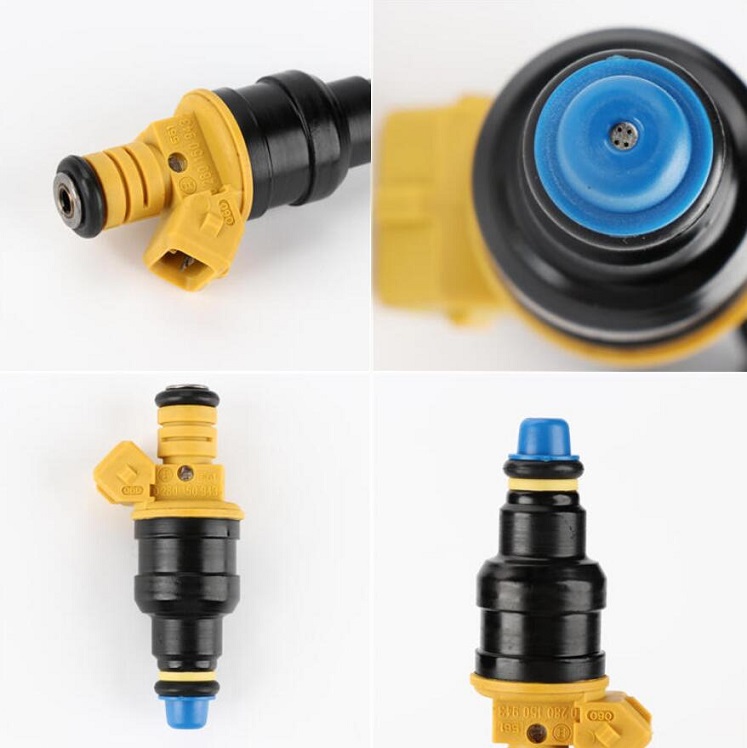

Description:
- 100% Brand New & High Quality

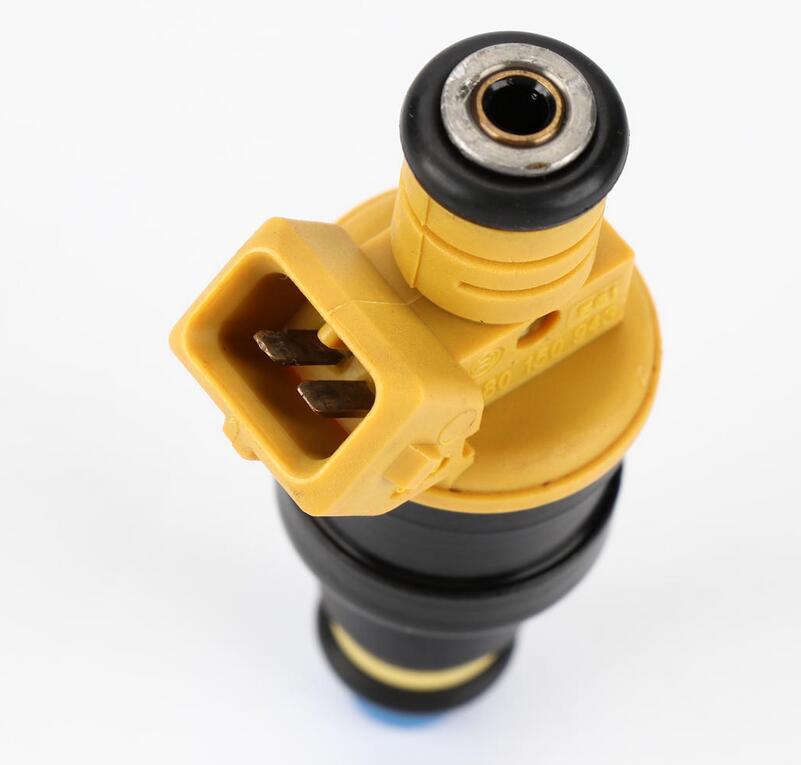

- Design: EV1 Style Fuel Injector
- O-Rings Included: Yes,preinstalled
- Injector Design: Metal & composite plastic

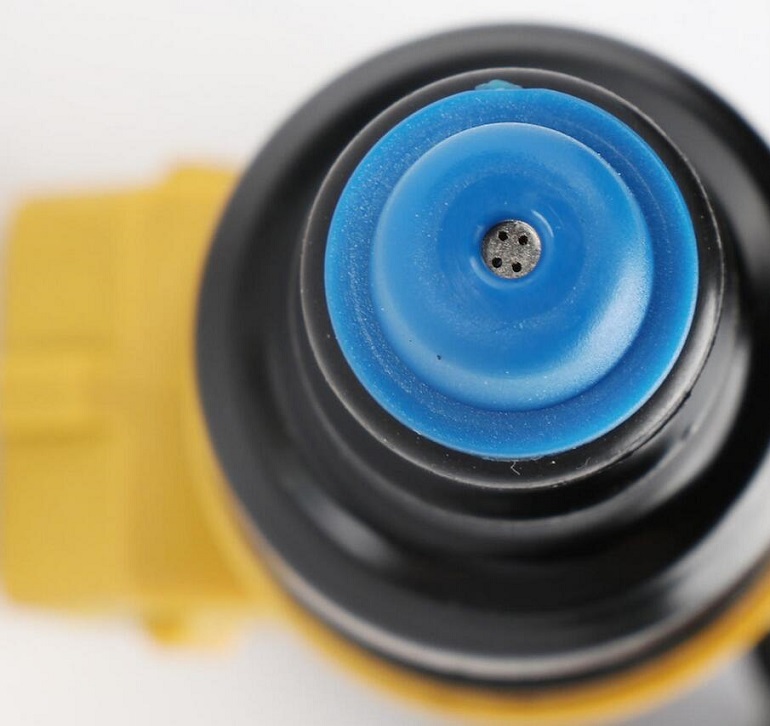

- Orifice Type:4 holes Disc

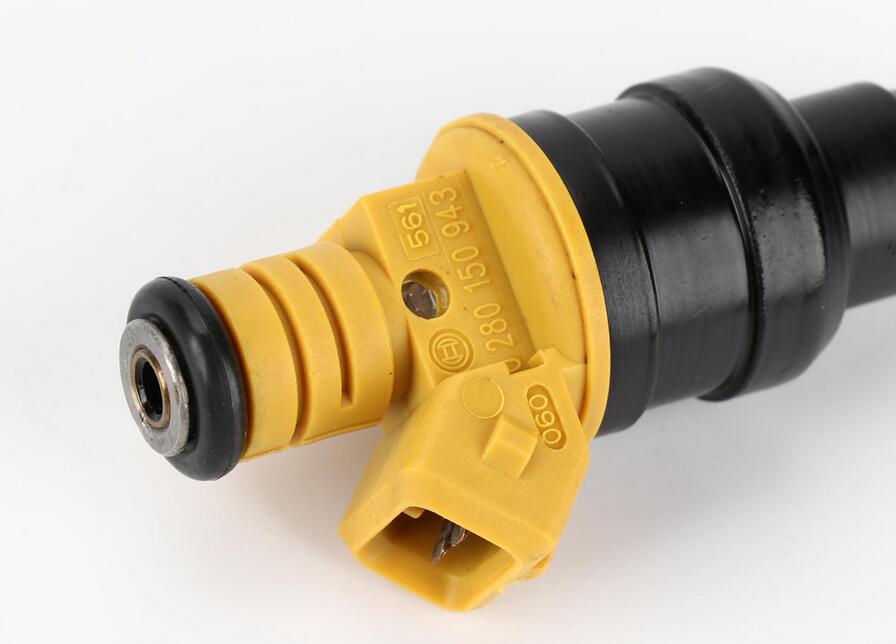

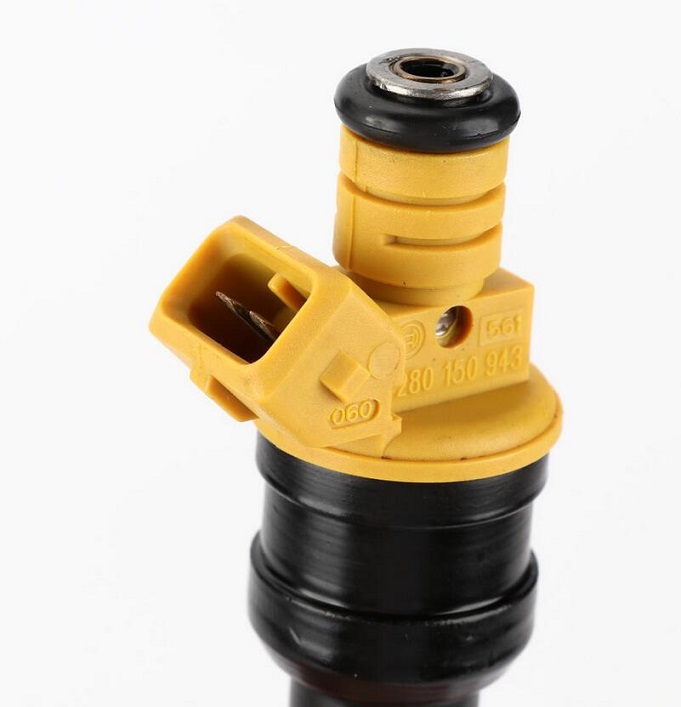

- Connector Type: EV1
- Filter Design: Basket filter design at inlet
- Spray Pattern: 15 Degree Spray Cone
Specification:
- Coil Resistance: 12?Ohms/High Impedance
- Static Flow Rate: 215cc/min at 43PSI
- Gain: 0.12ms/MG
- Offset: 0.055ms
- Turn on time 14VDC: 1.14ms
- Turn off time: 0.85ms @ 300KPa
- Amperage: 1.0 Amps
- Pressure: Min 30PSIG/Max 100PSIG
- Variance:2%
- Length: 3"(74mm)
- O-ring to O-ring Length: 2 1/2 inches,63 mm
- Diameter: 16mm
- O-Ring Diameter:14.5mm
Package List:

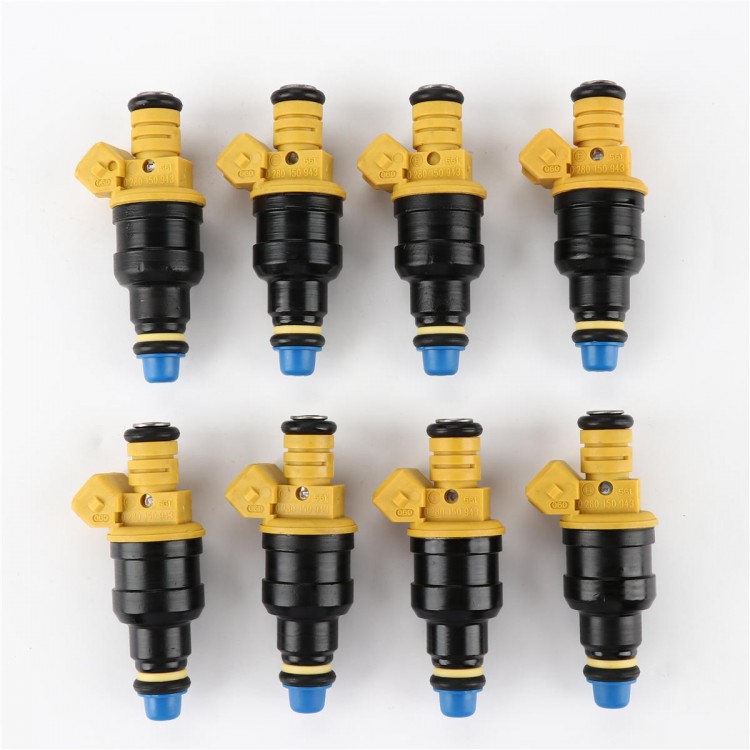

- 8 x Fuel Injectors
